Fiber-Optic Receiver, 900-1700 nm InGaAs, 25 kHz to 125 MHz, FC, AC-Coupled

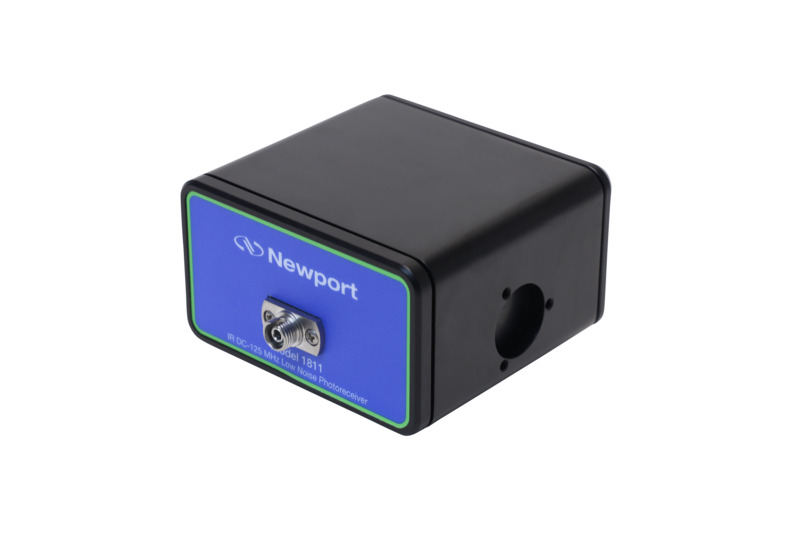

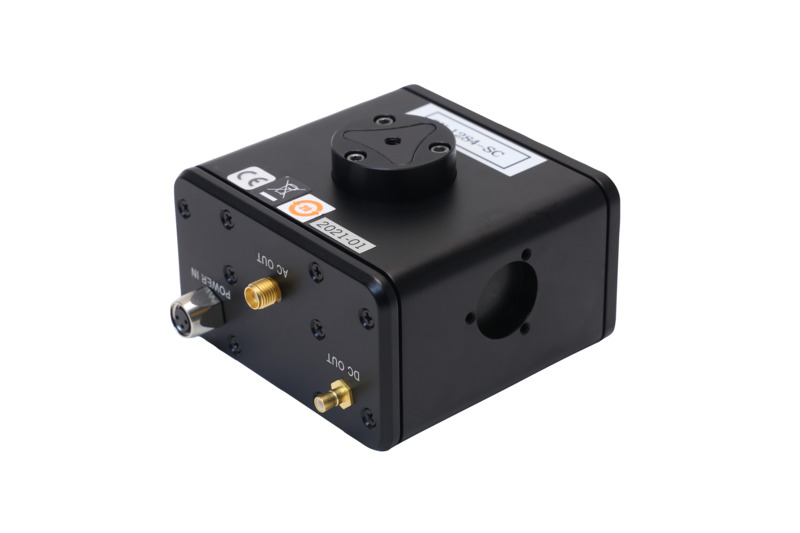

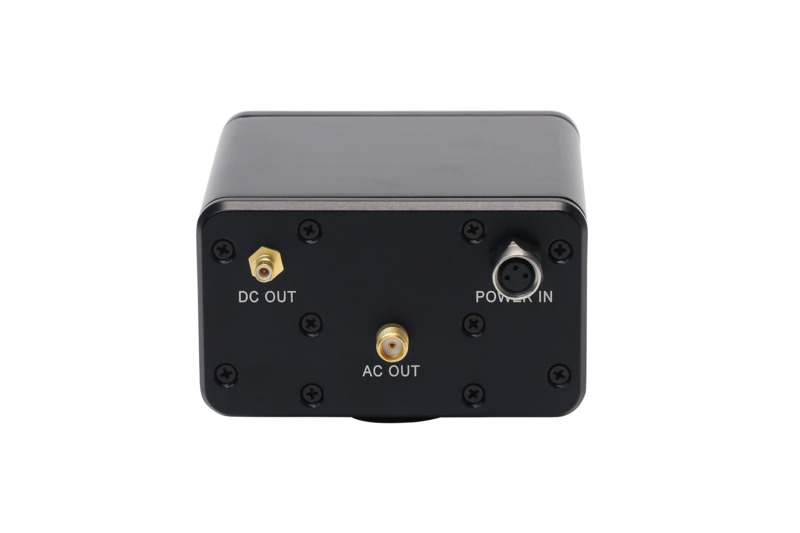

The 1811-FC-AC InGaAs Fiber-Optic Receiver is a FC connectorized, 900 to 1700 nm photoreceiver offering a well-balanced combination of gain, bandwidth, and low noise over the 25 kHz to 125 MHz frequency range. Because of its high transimpedance gain and low noise-equivalent power (NEP), it offers the best in sensitivity for signals with rise and fall times as short as 3 ns. This high sensitivity, combined with its high-level output, reduces the effects of downstream noise sources. For mounting there is an 8-32 thread, and we include an M4 thread adapter and tool.

An external ±15 VDC power supply, which must be purchased separately, is required. Power supply cables and are included with each detector.
