Auto-balanced Optical Receiver, Nirvana, 400-1070 nm, 125 kHz, 8-32 / M4

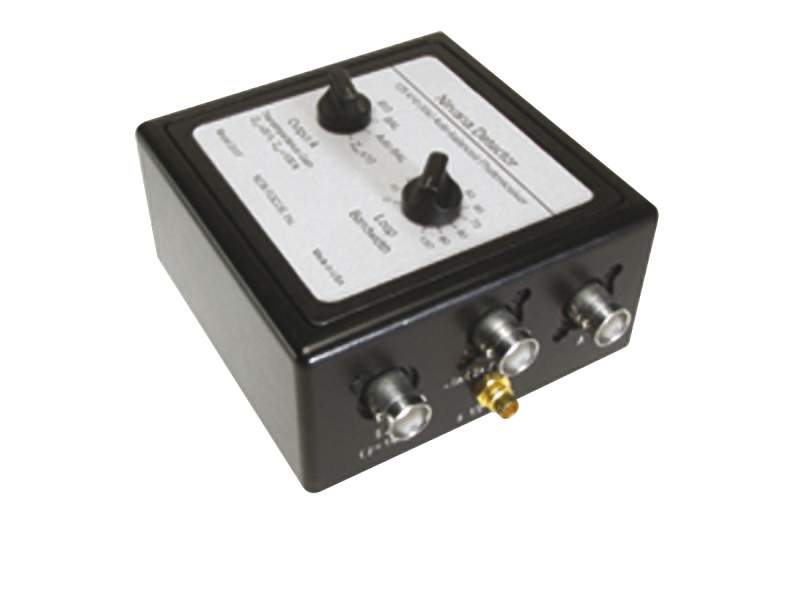

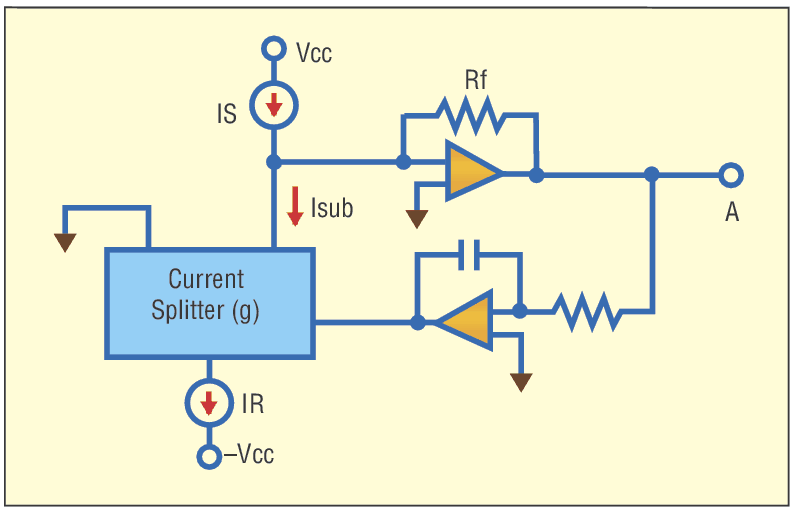

The 2007 Nirvana Auto-Balanced Optical Receiver can cut the effects of laser noise by 50 dB, making even very small signals easy to see. The 2007 has a 400 to 1070 nm wavelength range. In spectroscopy, ellipsometry, or heterodyne-detection experiments, these receivers can yield shot-noise-limited performance without the need for lock-in amplifiers or high-frequency modulation. 8-32 mounting thread. M4 metric adaptor and tool now included.

An external power supply, which must be purchased separately, is required – we recommend our power supply. Power supply cables and are included with each receiver.

Specifications

Technical Specs

Device Type
Balanced Receiver
Optical Input
Fiber-optic and Free Space
Detector Material
Silicon
Detector Type
PIN
Detector Diameter
2.5 mm
Wavelength Range
400-1070 nm
3 dB Bandwidth
DC to 125 KHz
Rise Time
3 µs
Maximum Conversion Gain
5.2 x 10⁵ V/W
Maximum Transimpedance Gain
1x10⁶ V/A

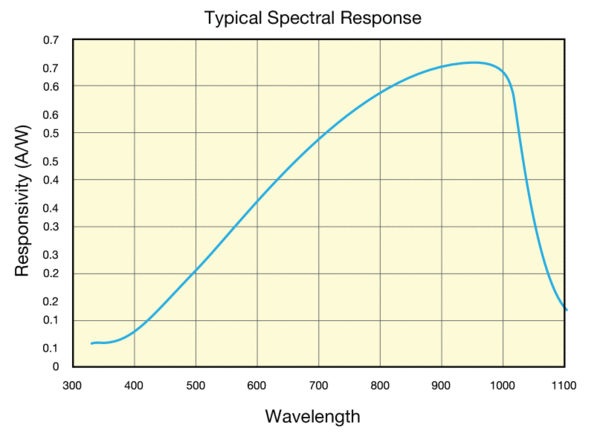

Peak Responsivity
0.5 A/W

NEP
3 pW/√Hz
Common Mode Rejection
50 dB
Saturation Power
1 mW
Maximum Optical Power
4 mW
Maximum RF Power
+12 dBm bei 50 Ω
Output Connector
BNC
Output Impedance
100 Ω
Power Requirements
±15 V, 300 mA
Thread Type
8-32

Device Type
Balanced Receiver
Optical Input
Fiber-optic and Free Space
Detector Material
Silicon
Detector Type
PIN
Detector Diameter
2.5 mm
Wavelength Range
400-1070 nm
3 dB Bandwidth
DC to 125 KHz
Rise Time
3 µs
Maximum Conversion Gain
5.2 x 10⁵ V/W
Maximum Transimpedance Gain
1x10⁶ V/A
Peak Responsivity
0.5 A/W

NEP
3 pW/√Hz
Common Mode Rejection
50 dB
Saturation Power
1 mW
Maximum Optical Power
4 mW
Maximum RF Power
+12 dBm bei 50 Ω
Output Connector
BNC
Output Impedance
100 Ω
Power Requirements
±15 V, 300 mA
Thread Type
8-32

Resources & Downloads

2D Product Drawings

20x7 Drawing(138.2 kB, PDF)

Other

MKS EU ROHS3 - 20x7.pdf(228.9 kB, PDF)
2007_2017 CE Declaration of Conformity.pdf(103.1 kB, PDF)

Manuals

90099912 Nirvana Auto-balanced Photoreceiver User Manual Rev A.pdf(4.1 MB, PDF)
