Auto-balanced Optical Receiver, Nirvana, 800-1700 nm, 125 kHz, 8-32 / M4

  • Device Type
    Balanced Receiver
  • Optical Input
    Fiber-optic and Free Space
  • Detector Type
    PIN
  • Detector Diameter
    1 mm
  • Wavelength Range
    800-1700 nm
  • 3 dB Bandwidth
    DC to 125 KHz
  • Rise Time
    3 µs
  • Maximum Conversion Gain
    1 x 106 V/W
  • Maximum Transimpedance Gain
    1x106 V/A

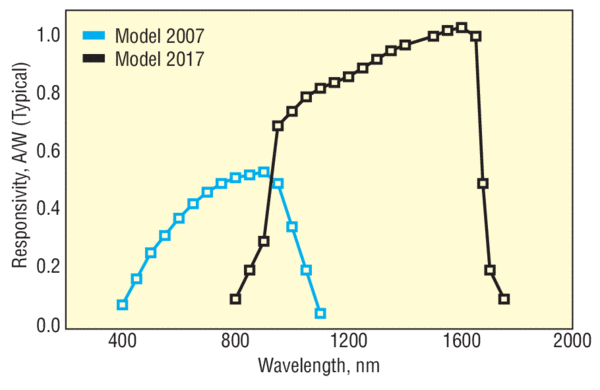

  • Peak Responsivity
    1.0 A/W
  • NEP
    3 pW/√Hz
  • Common Mode Rejection
    50 dB
  • Saturation Power
    0.5 mW
  • Maximum Optical Power
    4 mW
  • Maximum RF Power
    +12 dBm bei 50 Ω
  • Output Connector
    BNC
  • Output Impedance
    100 Ω
  • Power Requirements
    ±15 V, 300 mA
  • Thread Type
    8-32
