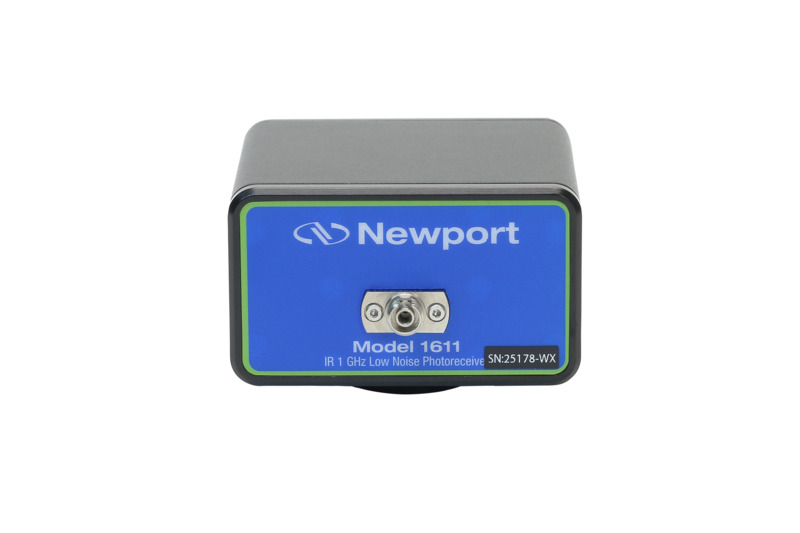

Fiber-Optic Receiver, 900-1700 nm InGaAs, 30 kHz to 850 MHz, FC/PC, AC-Coupled
The 1611FC-AC InGaAs Fiber-Optic Receiver is used for experiments requiring up to 850 MHz bandwidths and 400 ps rise times. This FC/PC connectorized photoreceiver offers a well-balanced combination of gain, bandwidth, and very low noise. The InGaAs detector wavelength range is 900 to 1700 nm. For mounting there is an 8-32 mounting thread, and we also include a M4 metric thread adaptor and tool.
An external ±15 VDC power supply, which must be purchased separately, is required. Power supply cables
Specifications
- Device TypePhotoreceiver (AC-Coupled)
- Detector Diameter0.1 mm
- Detector MaterialInGaAs
- Detector TypePIN
- Wavelength Range900-1700 nm
- 3 dB Bandwidth30 kHz to 850 MHz
- Optical InputFiber-optic
- Fiber-Optic ConnectorFC/UPC
- Fiber TypeSinglemode or Multimode
- Maximum Conversion Gain700 V/W
- Maximum Transimpedance Gain700 V/A
- Peak Responsivity1.0 A/W
- NEP20 pW/√Hz
- Rise Time400 ps
- Saturation Power1 mW
- Output ConnectorSMA
- Output Impedance50 Ω
- DC Bias Monitor Bandwidth20 KHz
- DC Bias Monitor Transimpedance Gain-10 V/mA
- Power Requirements±15 VDC, 300 mA
- Operating Temperature Range10 - 35 °C, < 70% RH
- Thread Type8-32 (includes M4 adapter)
