Fiber-Optic Receiver, 320-1000 nm Silicon, 30 kHz to 1 GHz, FC/PC, AC-Coupled

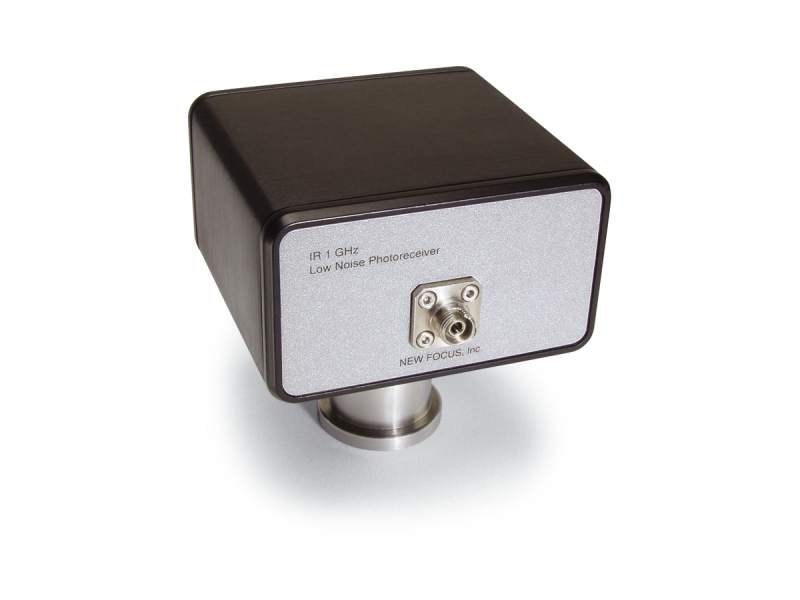

The 1601FC-AC Silicon Fiber-Optic Receiver is used for experiments requiring up to 1 GHz bandwidths and 400 ps rise times. This FC/PC connectorized photoreceiver offers a well-balanced combination of gain, bandwidth, and very low noise. The Silicon detector wavelength range is 320 to 1000 nm. For mounting there is an 8-32 mounting thread, and we also include a M4 metric thread adaptor and tool.

An external ±15 VDC power supply, which must be purchased separately, is required. Power supply cables and are included with each detector.

Specifications

Technical Specs

Device Type
Photoreceiver (AC-Coupled)
Detector Diameter
0.4 mm
Detector Material
Silicon
Detector Type
PIN
Wavelength Range
320-1000 nm

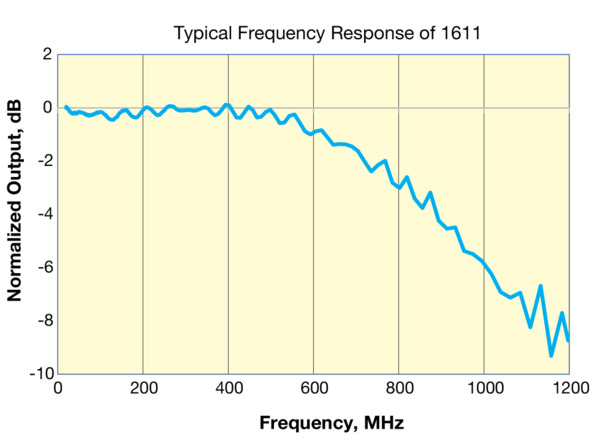

3 dB Bandwidth
30 kHz to 1 GHz
Optical Input
Fiber-optic
Fiber-Optic Connector
FC/UPC
Fiber Type
Singlemode or Multimode
Maximum Conversion Gain
350 V/W
Maximum Transimpedance Gain
700 V/A
Peak Responsivity
0.5 A/W

NEP
31 pW/√Hz
Rise Time
400 ps
Saturation Power
2 mW
Output Connector
SMA
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
20 KHz
DC Bias Monitor Transimpedance Gain
-10 V/mA
Power Requirements
±15 VDC, 300 mA
Operating Temperature Range
10 - 35 °C, < 70% RH
Thread Type
8-32 (includes M4 adapter)

Device Type
Photoreceiver (AC-Coupled)
Detector Diameter
0.4 mm
Detector Material
Silicon
Detector Type
PIN
Wavelength Range
320-1000 nm
3 dB Bandwidth
30 kHz to 1 GHz
Optical Input
Fiber-optic
Fiber-Optic Connector
FC/UPC
Fiber Type
Singlemode or Multimode
Maximum Conversion Gain
350 V/W
Maximum Transimpedance Gain
700 V/A
Peak Responsivity
0.5 A/W

NEP
31 pW/√Hz
Rise Time
400 ps
Saturation Power
2 mW
Output Connector
SMA
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
20 KHz
DC Bias Monitor Transimpedance Gain
-10 V/mA
Power Requirements
±15 VDC, 300 mA
Operating Temperature Range
10 - 35 °C, < 70% RH
Thread Type
8-32 (includes M4 adapter)
