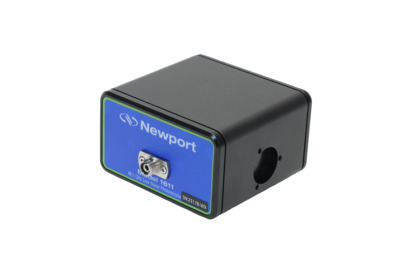

For experiments requiring up to 850 MHz (Model 1611) and 1 GHz (Model 1601) bandwidths and 500 ps rise times we recommend these fiber-optic receivers with a well-balanced combination of gain, bandwidth, and very low noise. The fiber-optic input works equally well with FC/PC-connectorized single-mode or multimode fiber. They have been engineered to eliminate most common sources of noise and drift, and have enough gain to pick up even very weak signals making them ideal optical front ends for systems requiring a low-noise input.
- High transimpedance gain and low noise
- 30 kHz to 850 MHz (1611) and 1 GHz (1601) 3 dB bandwidth
- Silicon or InGaAs versions
- AC coupled, capable of driving up to 1 V peak-to-peak into a 50-Ω load
- Excellent RF shielding See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
![]() | 1601FC-AC | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
![]() | 1611FC-AC | FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
- Detector Diameter1601FC-AC: 0.4 mm
1611FC-AC: 0.1 mm - Detector Material1601FC-AC: Silicon
1611FC-AC: InGaAs - Detector TypePIN

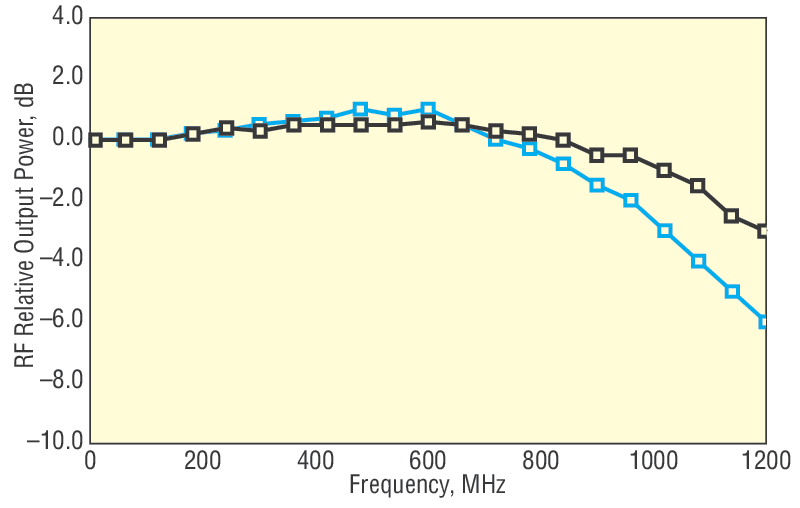

- 3 dB Bandwidth30 kHz to 850 MHz (1611) and 1 GHz (1601)
- Fiber-Optic ConnectorFC/UPC
- Fiber TypeSinglemode or Multimode
- Maximum Transimpedance Gain700 V/A
- Rise Time400 ps
- Output ConnectorSMA
- Output Impedance50 Ω
- DC Bias Monitor Bandwidth20 kHz
- DC Bias Monitor Transimpedance Gain-10 V/mA
- Power Requirements±15 VDC, 250 mA
- Thread Type8-32 (includes M4 adapter)
Features
Silicon or InGaAs Versions
The Silicon model (1601) provides wavelength coverage from 320-1000 nm, and the InGaAs model (1611) provides coverage from 900-1700 nm. This enables wide bandwidth, low-noise detection of signals distributed over fiber-optic cables or found in high resolution spectroscopy, fiber-optic sensors, optical metrology, and many other applications.
High Transimpedance Gain and Low Noise
RF Shielding
Accessories
Included Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
![]() | 0923Accessory Cable, Pico (m8) Double-Ended, Male to Male, 1 m | In Stock | ||||
![]() | 0924Accessory Cable, Pico (m8) Male to Banana Plug, 1 m | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Resources
Technical Notes
Literature
High Speed Optical Receiver and Detector Brochure(3.8 MB, PDF)
Selection Guides
Manuals
90099909_B_16x1 Series 850-MHz 1-GHz User Manual.pdf(559.9 kB, PDF)
Other
16xx CE Declaration of Conformity.pdf(101.2 kB, PDF)
