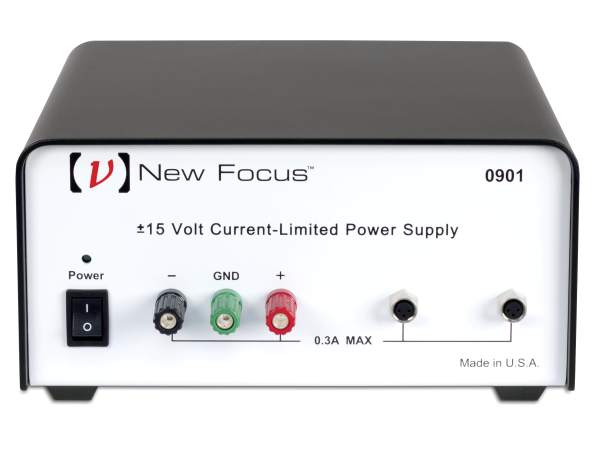

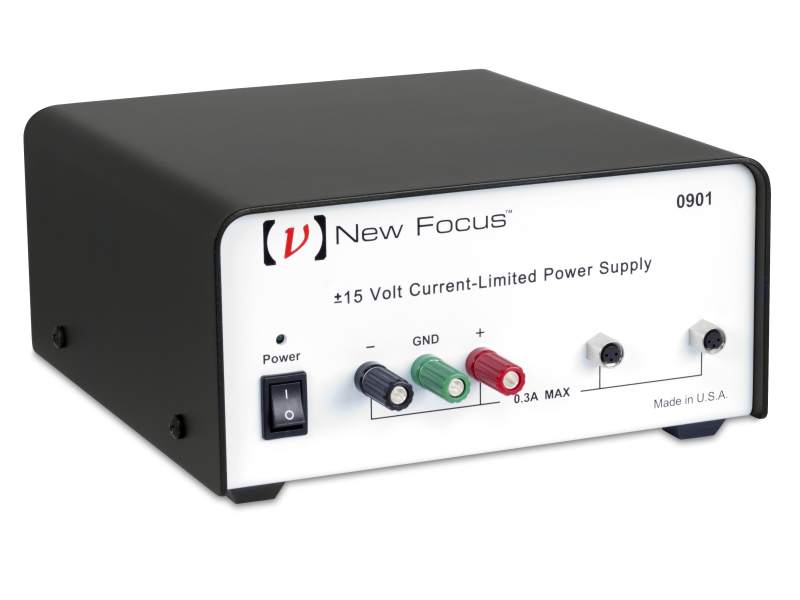

The Model 0901 power supply is intended for use with New Focus photodetectors and photoreceivers, but can also be used for general laboratory applications. Two of the three ±15-V outputs have microconnectors that match the cables supplied with selected New Focus photoreceivers and amplifiers. The third output has banana jacks for use with other laboratory equipment.
All three outputs are independently current limited to prevent damage. If a load draws current beyond the specified limit, the voltage to that load drops very rapidly, reducing the available power and preventing damage to the power supply and the attached equipment.
Microconnectors are utilized on our optical photoreceivers, amplifiers and two of the 0901 power supply's outputs because of their compact size, and because they are shielded to reduce electrical coupling from external noise sources. The output microconnectors on this power supply are Pico (m8) style.

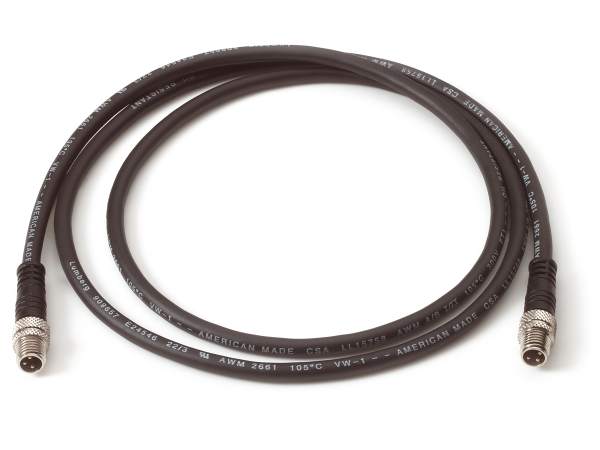

Newport offers Pico (m8) double-ended, male-to-male cables compatible with this power supply in 3 different lengths. Also available is a 1-m long Pico (m8) male to banana plug cable and a 1-m cable with BMC male to SMB plug. For many of our photoreceivers and photodetectors that require an external power supply, some cables are included with the unit. For photoreceivers and photodetectors that can operate from either a battery or external power supply, the devices include batteries but not cables. For more specific information, please visit the web page of the photoreceiver or photodetector.
