Fiber-Optic Receiver, DC Coupled, 500-1630 nm, 12 GHz, FC Singlemode

Model: 1544-B

$5,890

In Stock

Compare

Add to List

Product Series Overview

12 GHz Fiber-Optic Receivers

The 1544-B DC-Coupled NIR Fiber-Optic Receiver is ideal for applications that require high sensitivity, high speed, and clean responses. It offers clean responses and 32-ps rise times making it well-suited for time-domain characterization of 10-Gbit/s components. Its high gain and well-behaved frequency response also make it useful for frequency-domain measurements. For higher responsivity from 500-1630 nm, this photoreceiver has a singlemode fiber input and consists of our new, improved InGaAs PIN photodiodes followed by a GaAs HBT amplifier.

An external power supply, which must be purchased separately, is required – we recommend our 0901 power supply. Power supply cables 0923 and 0924 are included with each detector.

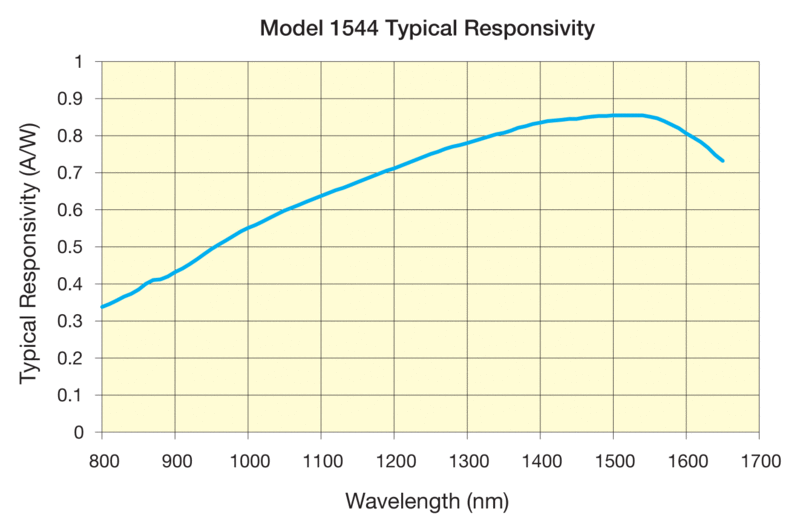

Typical Responsivity of Model 1544

Typical Pulse and Step Response of Model 1544

NOTE: Pulse response measured on a 20-GHz oscilloscope with a 100-fs optical pulse. Step response calculated from pulse response.

Typical Frequency Response of Model 1544

Ultra-clean Pulse Response

The clean response and 32 ps rise time make these devices especially well-suited for time-domain characterization of 10-Gbit/s components. The high gain and gradual, well-behaved roll-off of the frequency response also make them useful for frequency-domain measurements.

Switchable DC-Coupled or AC-Coupled Output

The -B versions of these photoreceivers include a DC-coupled option so they give response all the way down to DC. At the touch of a switch, you can select the traditional AC-coupled output with a 10-kHz cutoff or DC-coupled mode.

Applications

Eye Diagram - 10 Gbit/s data generated with Model 1544-A fiber-optic receiver.

Applications for these photoreceivers include:

Characterizing 10-Gbit/s components, including BER testing and generating eye diagrams
Characterizing the frequency or time responses of pulsed lasers, modulators, and transmitters
Characterizing pulse propagation through dispersive optical systems
RIN measurements
Heterodyne experiments
Precision timing/triggering

Specifications

Technical Specs

Device Type

Photoreceiver (DC-Coupled)
Detector Material

InGaAs
Detector Type

PIN
Wavelength Range

500-1630 nm
3 dB Bandwidth

DC to 12 GHz
Optical Input

Fiber-optic (SM only)
Fiber-Optic Connector

FC/UPC
Fiber Type

Singlemode
Core Diameter

9 µm
Maximum Conversion Gain

-800 V/W
Maximum Transimpedance Gain

-1000 V/A
Peak Responsivity

0.85 A/W

NEP

24 pW/√Hz
Rise Time

32 ps
Saturation Power

0.7 mW
Output Connector

Wiltron K
Output Impedance

50 Ω
DC Bias Monitor Bandwidth

50 kHz
DC Bias Monitor Transimpedance Gain

1 V/mA
DC Bias Monitor Output

SMA
DC Bias Monitor Output Impedance

10k Ω
Power Requirements

±15 VDC, 200 mA

Device Type

Photoreceiver (DC-Coupled)
Detector Material

InGaAs
Detector Type

PIN
Wavelength Range

500-1630 nm
3 dB Bandwidth

DC to 12 GHz
Optical Input

Fiber-optic (SM only)
Fiber-Optic Connector

FC/UPC
Fiber Type

Singlemode
Core Diameter

9 µm
Maximum Conversion Gain

-800 V/W
Maximum Transimpedance Gain

-1000 V/A
Peak Responsivity

0.85 A/W

NEP

24 pW/√Hz
Rise Time

32 ps
Saturation Power

0.7 mW
Output Connector

Wiltron K
Output Impedance

50 Ω
DC Bias Monitor Bandwidth

50 kHz
DC Bias Monitor Transimpedance Gain

1 V/mA
DC Bias Monitor Output

SMA
DC Bias Monitor Output Impedance

10k Ω
Power Requirements

±15 VDC, 200 mA

Resources & Downloads

Related Products

Accessories (sold separately)

Description	Compatibility	Avail.	Price
0901 Lab Power Supply, ±15 VDC	UNIVERSAL	In Stock	$568
0923-2 Accessory Cable, Pico (m8) Double-Ended, Male to Male, 2 m	UNIVERSAL	In Stock	$69
1226 Connector Adapter, Female SMA to Male BNC	UNIVERSAL	In Stock	$86
1227NF Flexible Cable, 40 GHz, Wiltron K Male to Female, 24 in. Length	UNIVERSAL	In Stock	$302
F-SC-C-1FC Fiber Patch Cord, Singlemode, 980/1550nm, F-SC-C, 1m, FC/UPC Connectors	UNIVERSAL	In Stock	$85
F-SY-C-1FC Fiber Patch Cord, Singlemode, 980-1550 nm, F-SY-C, 1m, FC/UPC Connectors	UNIVERSAL	In Stock	$90
F-SF-C-1FC Fiber Patch Cord, Singlemode, 820nm, F-SF-C, 1m, FC/UPC Connectors	UNIVERSAL	In Stock	$90
F-SMF-28-C-1FC Fiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 1m, FC/UPC Connectors	UNIVERSAL	In Stock	$24

Included Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		0923 Accessory Cable, Pico (m8) Double-Ended, Male to Male, 1 m	UNIVERSAL		In Stock	$59
		0924 Accessory Cable, Pico (m8) Male to Banana Plug, 1 m	UNIVERSAL		2 Weeks	$103

Similar

Description	Compatibility	Avail.	Price
1544-A Fiber-Optic Receiver, NIR, 12 GHz, 500-1630 nm, FC Singlemode	UNIVERSAL	Contact Us	$5,440
1544-B-50 Fiber-Optic Receiver, DC-Coupled, 780-1630 nm, 12 GHz, FC Multimode	UNIVERSAL	5 Weeks	$5,990
1580-B Fiber-Optic Receiver, DC Coupled, 780-870 nm, 12 GHz, FC Multimode	UNIVERSAL	Contact Us	$5,860
