Fiber-Optic Receiver, DC-Coupled, 800-1650 nm, 12 GHz, FC Multimode

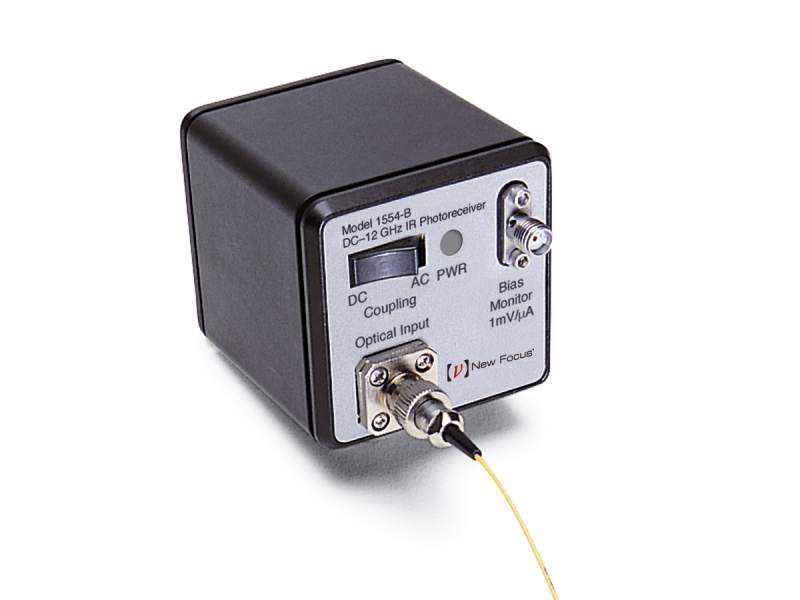

The 1544-B-50 DC-Coupled NIR Fiber-Optic Receiver is ideal for applications that require high sensitivity, high speed, and clean responses. It offers clean responses and 32-ps rise times making it well-suited for time-domain characterization of 10-Gbit/s components. Its high gain and well-behaved frequency response also make it useful for frequency-domain measurements. For higher responsivity from 800-1650 nm, this photoreceiver has a 50 μm core multimode fiber input and consists of our new, improved InGaAs PIN photodiodes followed by a GaAs HBT amplifier.
An external power supply, which must be purchased separately, is required – we recommend our
Specifications
- Device TypePhotoreceiver (DC-Coupled)
- Detector MaterialInGaAs
- Detector TypePIN
- Wavelength Range800-1650 nm
- 3 dB BandwidthDC to 12 GHz
- Optical InputFiber-optic
- Fiber-Optic ConnectorFC/UPC
- Fiber TypeMultimode
- Core Diameter50 µm
- Maximum Conversion Gain-700 V/W
- Maximum Transimpedance Gain-1000 V/A
- Peak Responsivity0.75 A/W
- NEP27 pW/√Hz
- Rise Time32 ps
- Saturation Power0.7 mW
- Output ConnectorWiltron K
- Output Impedance50 Ω
- DC Bias Monitor Bandwidth50 kHz
- DC Bias Monitor Transimpedance Gain1 V/mA
- DC Bias Monitor OutputSMA
- DC Bias Monitor Output Impedance10k Ω
- Power Requirements±15 VDC, 200 mA
Resources & Downloads
3D Product Models
2D Product Drawings
15xx-B Drawing.pdf(401.2 kB, PDF)
Other
RoHS Declaration - 10x4 14x4 15x4 Detectors.pdf(353.2 kB, PDF) CE Declaration 1580-B 1544-B 1544-B-50.pdf(236.5 kB, PDF)
Manuals
90063253_A_High Speed Detector and Receiver User Manual.pdf(756.2 kB, PDF)
