Fiber-Optic Receiver, NIR, 12 GHz, 800-1650 nm, FC Singlemode

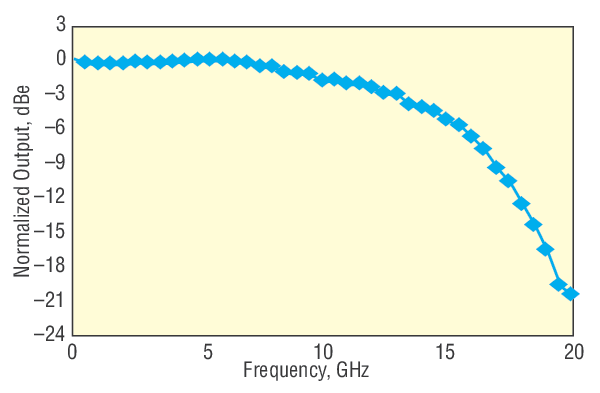

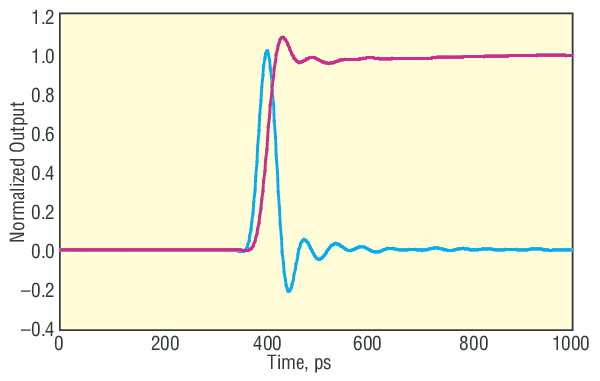

The 1544-A Near-IR Fiber-Optic Receiver is ideal for applications that require high sensitivity, high speed, and clean responses. It offers clean responses and 32-ps rise times making it well-suited for time-domain characterization of 10-Gbit/s components. Its high gain and well-behaved frequency response also make it useful for frequency-domain measurements. For higher responsivity from 800-1650 nm, this photoreceiver has a singlemode fiber input and consists of our new, improved InGaAs PIN photodiodes followed by GaAs HBT amplifiers.
An external power supply, which must be purchased separately, is required – we recommend our
Specifications
- Device TypePhotoreceiver (AC-Coupled)
- Detector MaterialInGaAs
- Detector TypePIN
- Wavelength Range800-1650 nm
- 3 dB Bandwidth10 kHz to 12 GHz
- Optical InputFiber-optic (SM only)
- Fiber-Optic ConnectorFC/UPC
- Fiber TypeSinglemode
- Core Diameter9 µm
- Maximum Conversion Gain-800 V/W
- Maximum Transimpedance Gain-1000 V/A
- Peak Responsivity0.85 A/W
- NEP24 pW/√Hz
- Rise Time32 ps
- Saturation Power0.7 mW
- Output ConnectorWiltron K
- Output Impedance50 Ω
- DC Bias Monitor Bandwidth50 kHz
- DC Bias Monitor Transimpedance Gain1 V/mA
- DC Bias Monitor OutputSMA
- DC Bias Monitor Output Impedance10k Ω
- Power Requirements±15 VDC, 200 mA
- Operating Temperature Range10 - 35 °C, < 70% RH
