The Super Agilis™ includes a piezo motor linear stage integrated with a CONEX-SAG piezo motor controller and driver in both close-loop and open-loop versions. For out-of-the box control, the controller is preconfigured and delivered to control the included linear stage.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
High Speed Piezo Linear Stage, 16 mm Travel, Open Loop,Integrated Controller
$1,827
In Stock
|
CONEX-SAG-LS16 High Speed Piezo Linear Stage, 16 mm Travel, Open Loop,Integrated Controller |
In Stock
|
$1,827 |
|
||
|
High Speed Piezo Linear Stage, 16 mm Travel, Direct Encoder, Integrated Controller
$2,416
In Stock
|
CONEX-SAG-LS16P High Speed Piezo Linear Stage, 16 mm Travel, Direct Encoder, Integrated Controller |
In Stock
|
$2,416 |
|
||
|
High Speed Piezo Linear Stage, 32 mm Travel, Open Loop, Integrated Controller
$2,013
|
CONEX-SAG-LS32 High Speed Piezo Linear Stage, 32 mm Travel, Open Loop, Integrated Controller | $2,013 |
|
|||
|
High Speed Piezo Linear Stage, 32 mm Travel, Direct Encoder, Integrated Controller
$2,635
In Stock
|
CONEX-SAG-LS32P High Speed Piezo Linear Stage, 32 mm Travel, Direct Encoder, Integrated Controller |
In Stock
|
$2,635 |
|
||
|
High Speed Piezo Linear Stage, 48 mm Travel, Open Loop, Integrated Controller
$2,232
|
CONEX-SAG-LS48 High Speed Piezo Linear Stage, 48 mm Travel, Open Loop, Integrated Controller | $2,232 |
|
|||
|
High Speed Piezo Linear Stage, 48 mm Travel, Direct Encoder, Integrated Controller
$2,880
In Stock
|
CONEX-SAG-LS48P High Speed Piezo Linear Stage, 48 mm Travel, Direct Encoder, Integrated Controller |
In Stock
|
$2,880 |
|
| Models |
CONEX-SAG-LS16P |
CONEX-SAG-LS32P |
CONEX-SAG-LS48P |
|
|---|---|---|---|---|
| Axes of Travel | X | X | X | |
| Travel Range | 16 mm | 32 mm | 48 mm | |
| Centered Load Capacity | 20 N | 30 N | 30 N | |
| Axial Load Capacity | 2 N | 2 N | 2 N | |
| Holding Force | 3 N | 3 N | 3 N | |
| Maximum Speed | 10 mm/s | 10 mm/s | 10 mm/s | |
| Minimum Incremental Motion 1 | 25 nm | 25 nm | 25 nm | |
| Bi-directional Repeatability, Typical | 120 nm( full stroke) / 25 nm ( scanning mode) | 120 nm ( full stroke) / 25 nm ( scanning mode) | 120 nm ( full stroke) / 25 nm( canning mode) | |
| Material | Stainless Steel | Stainless Steel | Stainless Steel | |
| Cable Length | 1.5 m | 1.5 m | 1.5 m | |
| Weight | 65 g | 93g | 127 g |

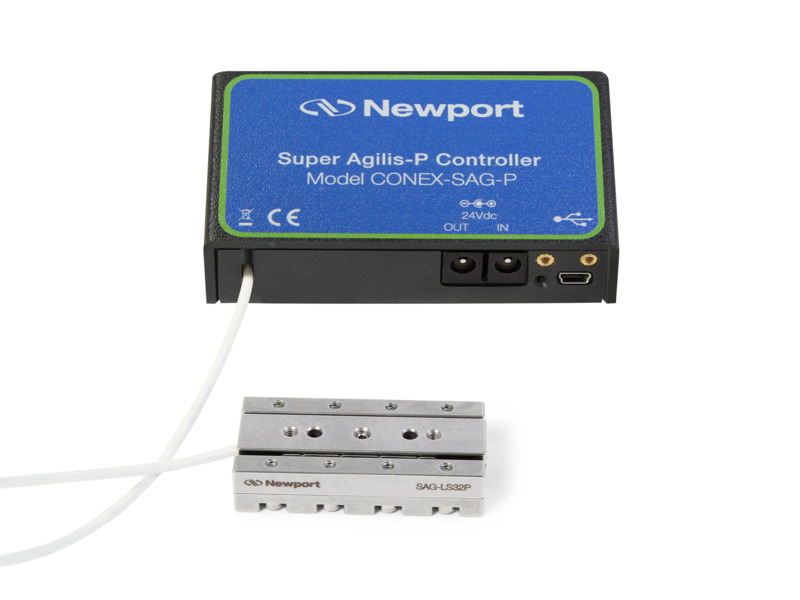

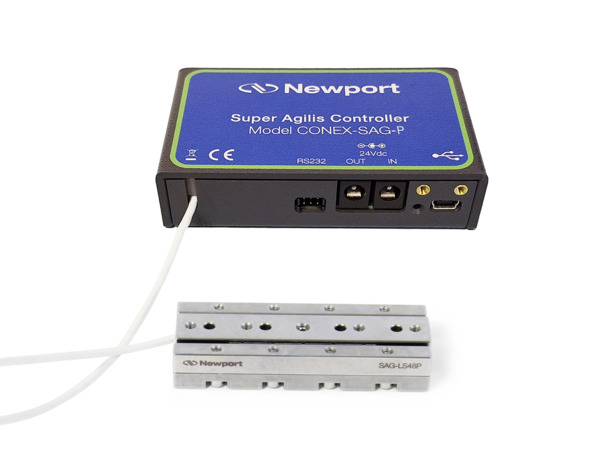

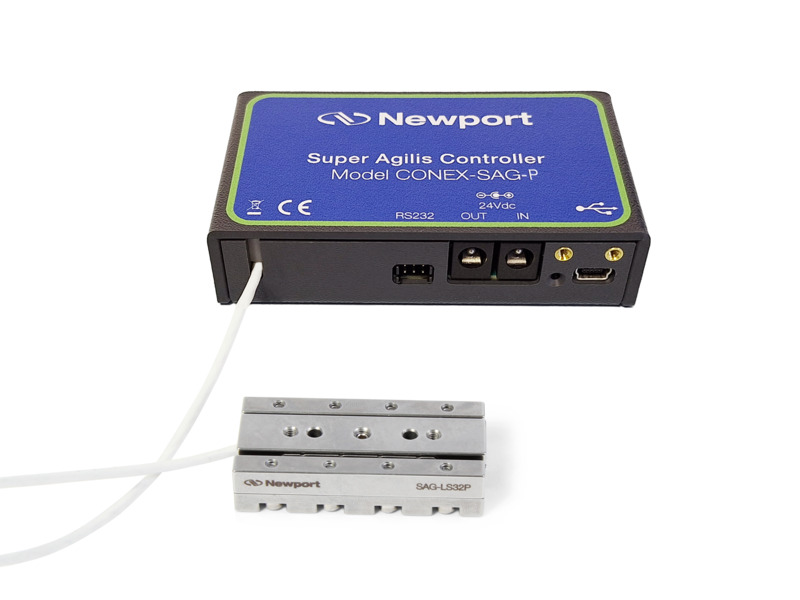

The CONEX-SAG is a very compact and inexpensive single axis motion controller. The controller comes with the CONEX GUI, simple and intuitive to use and conveniently accessible via USB, which also supplies power to the controller. It offers a closed-loop algorithm which is a simplified version of the typical DC servo loop control, and combined with the linear encoder, provides a system bi-directional repeatability of 25 nm. For in-position stability, the user can adjust the deadband parameter that stops dithering when the stage is within a set position tolerance. And for a more economic option, open-loop CONEX-SAG-LS stages are also available without an encoder.
A graphical user interface (GUI) allows interaction with the CONEX-SAG Controller. Through the GUI, a user can initiate moves, change the state of the controller, adjust parameters and perform other functions. The CONEX-SAG Controller GUI runs on Windows 7, 8 and 10 platforms.

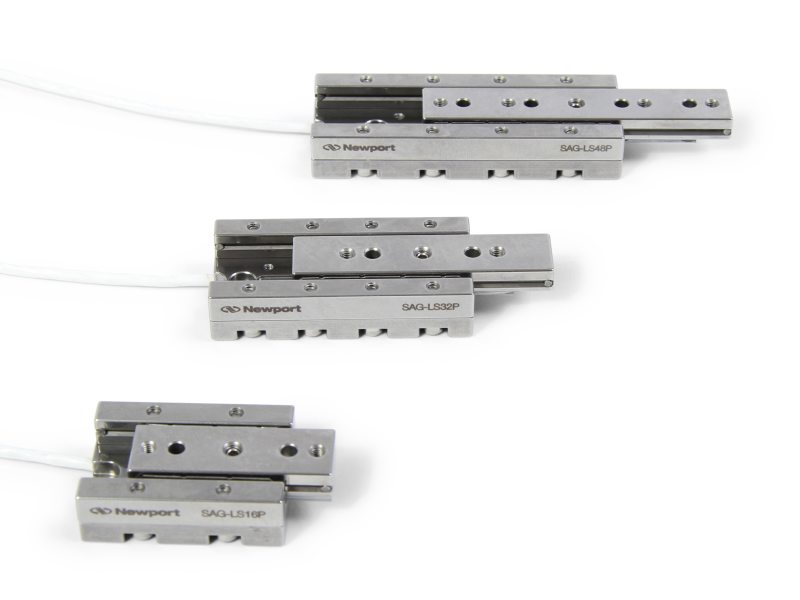

The linear stages of the CONEX-SAG-LSxx feature an innovative miniature direct read linear encoder in the (P) models. The footprint is very small while delivering sub-micron bi-directional repeatability expected from direct read encoder technology.
In terms of size, the CONEX-SAG controller is comparable to a deck of cards, only measuring 93 x 53 x 23 mm. Six controllers can fit on a

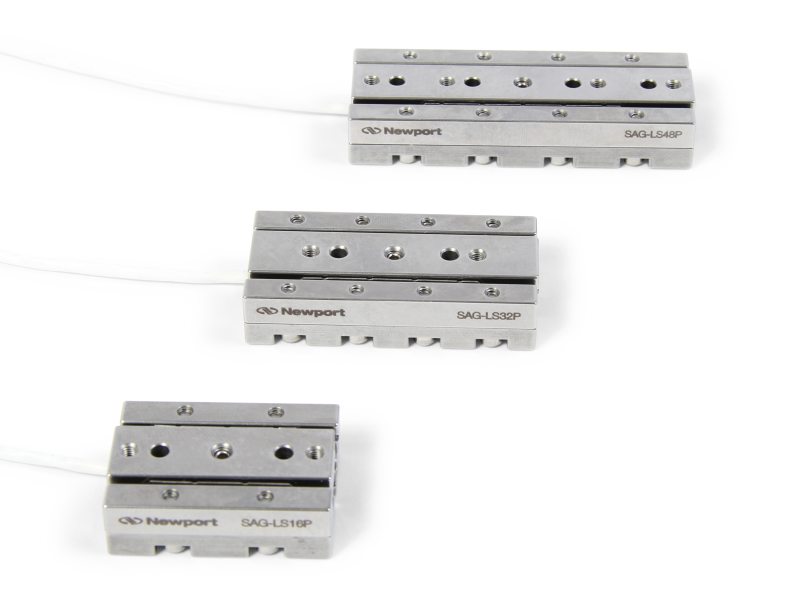

Different linear stages are available to choose from to address critical parameters, such as travel range, that fit a variety of applications. Like the controllers, the linear stages are very compact, but are capable of 16, 32, and 48 mm travel.
The full stainless steel body of the CONEX-SAG-LSxx allows for a more compact design with exceptional stiffness-to-weight ratio, greater thermal stability, and high load capacity.
Each stage features stainless steel crossed-roller bearings. Crossed-roller bearings offer all the advantages of ball bearings, and in addition, they provide higher load capacity and higher stiffness.
Designed to provide fast travel, Super Agilis stages offer speeds of up to 10 mm/sec. This is 20 times faster than the CONEX-AG Agilis linear stage with piezo motor and 4 times faster than the CONEX-MFACC linear stage with DC servo motor.

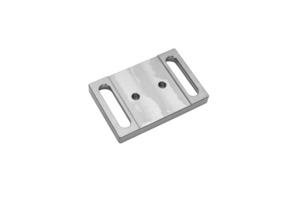

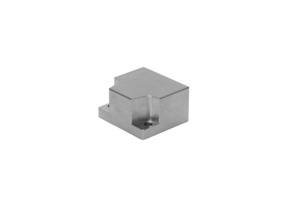

For more versatility and mounting options, a 90° angle bracket and base plate may be ordered separately. The SAG-AB90-16* bracket enables vertical (Z-axis) mounting for a two-axis (XZ) assembly, and the SAG-BP1 steel base plate is designed for mounting to an optical table.
* Compatible with SAG-LS16 (both) only.
