High Speed Piezo Linear Stage, 16 mm Travel, Open Loop,Integrated Controller
Model: CONEX-SAG-LS16
Product Series Overview

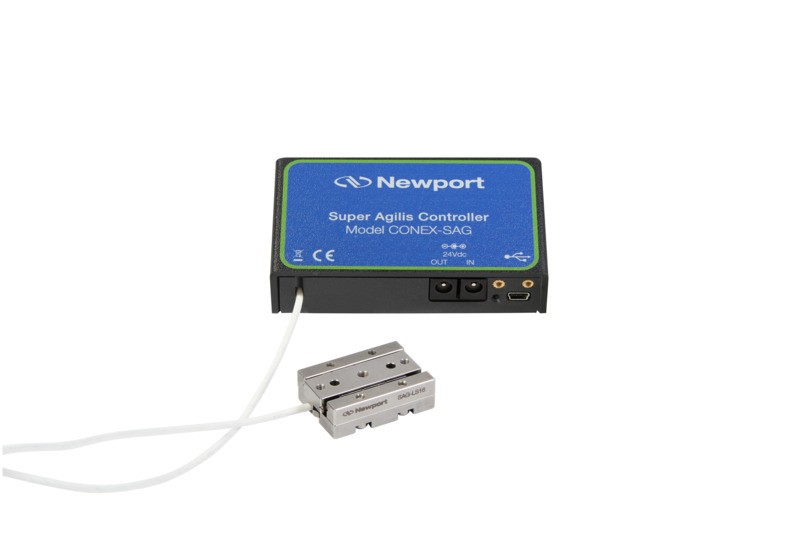

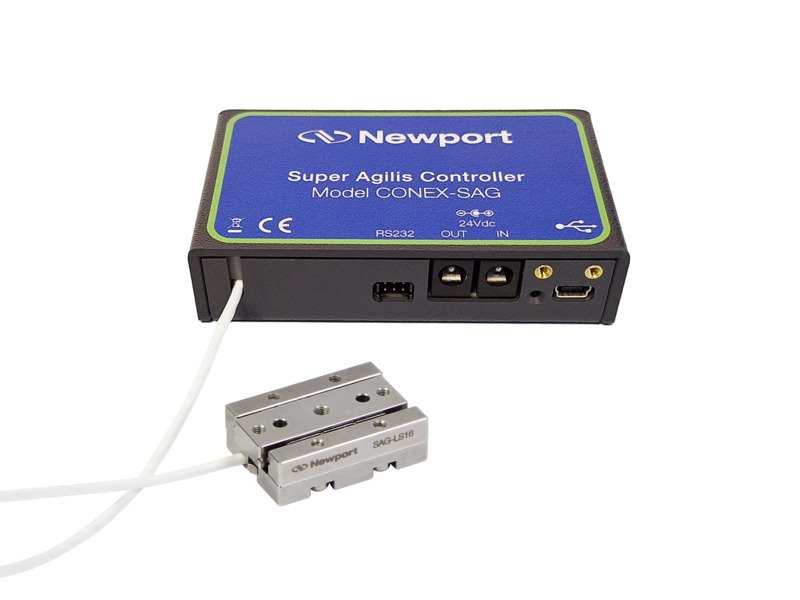

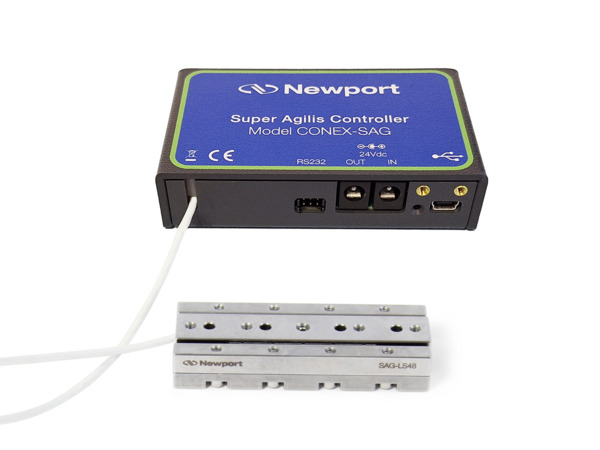

Super Agilis™ Piezo Linear Stages With CONEX™ ControllerThe Super Agilis™ CONEX-SAG-LS16 is a high performance piezo motor linear stage integrated with an open-loop piezo motion controller/driver that provides 16 mm travel and more than 10 mm/sec speed.
The CONEX-SAG is a ultra-compact and cost-effective single axis motion controller delivered already pre-configured for the stage. The controller is accessible via USB, with options for other serial connections (available as custom/special), from an easy-to-use GUI or proprietary solutions using an extensive command set. RS232 connectivity is standard starting with products manufactured in September 2025 and later. A CONEX-SAG-RS232 Cable (sold separately) will be required to connect with the RS232 port.
With MIM of 100 nm this stage is perfect fit for high precision applications also needing high speed. And it is easy to stack stages into a XY configuration without requiring an adapter.
To power the stage a CONEX-PS power supply is needed.
CONEX-SAG Motion Control
The CONEX-SAG is an ultra-compact and cost-effective single axis motion controller. The controller comes with the CONEX GUI, simple and intuitive to use and conveniently accessible via USB, which also supplies power to the controller. It offers a closed-loop algorithm which is a simplified version of the typical DC servo loop control, and combined with the linear encoder, provides a system bi-directional repeatability of 25 nm. For in-position stability, the user can adjust the deadband parameter that stops dithering when the stage is within a set position tolerance. And for a more economic option, open-loop CONEX-SAG-LS stages are also available without an encoder. RS232 connectivity is standard starting with products manufactured in September 2025 and later. A CONEX-SAG-RS232 Cable (sold separately) will be required to connect with the RS232 port.
User-Friendly Interface
A graphical user interface (GUI) allows interaction with the CONEX-SAG Controller. Through the GUI, a user can initiate moves, change the state of the controller, adjust parameters and perform other functions. The CONEX-SAG Controller GUI runs on Windows 7, 8 and 10 platforms.
Includes Agilis Piezo Linear Stage
The linear stages of the CONEX-SAG-LSxx feature an innovative miniature direct read linear encoder in the (P) models. The footprint is very small while delivering sub-micron bi-directional repeatability expected from direct read encoder technology.
Compact Controller and Stage
In terms of size, the CONEX-SAG controller is comparable to a deck of cards, only measuring 93 x 53 x 23 mm. Six controllers can fit on a
All Steel Stages
The full stainless steel body of the CONEX-SAG-LSxx allows for a more compact design with exceptional stiffness-to-weight ratio, greater thermal stability, and high load capacity.
Specifications
- Travel Range16 mm
- Axes of TravelX
- Centered Load Capacity20 N
- Axial Load Capacity2 N
- Maximum Speed10 mm/s
- Minimum Incremental Motion100 nm
- Holding Force3 N
- Pitch, Typical150 µrad
- Yaw, Typical150 µrad
- FeedbackOpen-loop
- BearingsCrossed Roller Bearings
- MaterialStainless Steel
- Weight65 g
- Operating Temperature10 to 35°C
- Cable Length1.5 m
- RoHSCE compliant
Resources & Downloads
3D Product Models
Manuals
Super Agilis - Controller GUI Manual.pdf(1.8 MB, PDF) Super Agilis - User's Manual.pdf(3.3 MB, PDF)
Software
Conex-SAG GUI & USB Drivers(6.2 MB, ZIP)
Literature
Super Agilis Open-Loop Data Sheet.pdf(862.2 kB, PDF)
2D Product Drawings
CONEX-SAG-LS16 Drawing(520.1 kB, PDF)
Technical Notes
Open vs Closed Loop Picomotors(1.6 MB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CONEX-PS1Power Supply, 24 VDC, CONEX™ Motion Controllers | In Stock | ||||
 | CONEX-BPBase Plate, Mounts Multiple CONEX™ Controllers | In Stock | ||||
 | SAG-BP1Slotted Based Plate, Stainless steel, Conex-SAG Series | |||||
 | SAG-AB90-16290 Degree Angle Bracket, Conex-SAG Series |
Notes:
- Power Supply sold separately.
- Compatible with SAG-LS16 (both) only
