Our Mercury line bandpass filters make it easy to isolate individual lines from mercury arc lamp incoherent light sources.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
10MLF10-254 Optical Filter, Mercury Line, 25.4 mm, 253.7±3 nm Center, 11±3nm FWHM |
In Stock
|
$387 |
|
|||
|

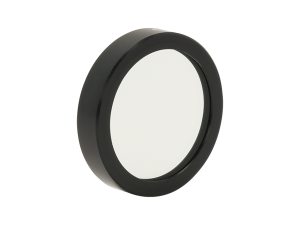

10MLF10-313 Optical Filter, Mercury Line, 25.4 mm, 313.0±3 nm Center, 11±3nm FWHM |
In Stock
|
$387 |
|
|||
|

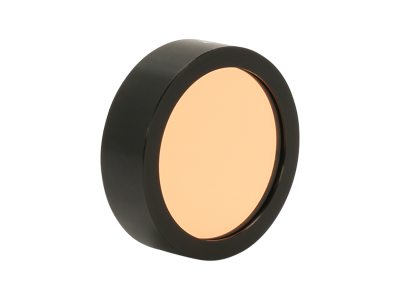

10MLF10-334 Optical Filter, Mercury Line, 25.4 mm, 334.1±2 nm Center, 12±2nm FWHM |
|
$387 |
|
|||
|

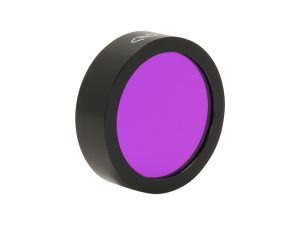

10MLF10-365 Optical Filter, Mercury Line, 25.4 mm, 365.0±2 nm Center, 12±2nm FWHM |
4 Weeks
|
$387 |
|
|||
|

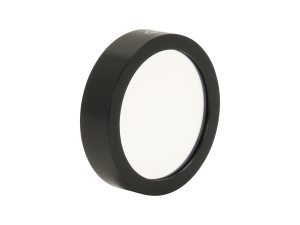

10MLF10-405 Optical Filter, Mercury Line, 25.4 mm, 404.7±2 nm Center 10±2nm FWHM |
In Stock
|
$169 |
|
|||
|

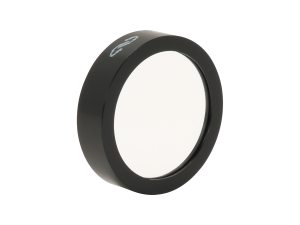

10MLF10-436 Optical Filter, Mercury Line, 25.4 mm, 435.8±2 nm Center, 10±2nm FWHM |
In Stock
|
$169 |
|
|||
|

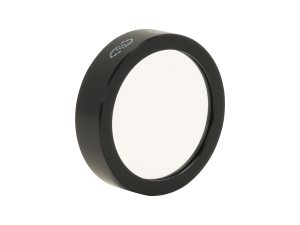

10MLF10-546 Optical Filter, Mercury Line, 25.4 mm, 546.1±2 nm Center, 10±2nm FWHM |
In Stock
|
$147 |
|
|||
|

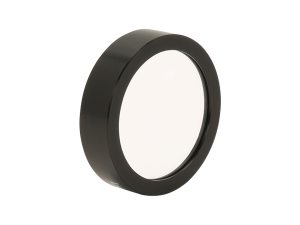

10MLF10-577 Optical Filter, Mercury Line, 25.4 mm, 577.0±2 nm Center, 10±2nm FWHM |
In Stock
|
$147 |
|
Scribed and laminated soft coating construction is a commonly used construction for bandpass and edge filters. Optical filter components are coated onto separate substrate plates. These plates are then scribed to remove the film symmetrically around the required specified active film areas of the optical filters to be produced from the plate. The scribed plates are subsequently laminated together with a moisture resistant epoxy. A glass-epoxy-glass seal is formed in the scribed areas forming the best possible barrier to moisture penetration. Filters are cut through the scribed area to their finished size using diamond cutting tools. Additional moisture barriers may be applied to the cut filters if necessary to achieve extended life requirements.
We offer a wide variety of optical filter mounts for securing and locating your optical filter. Popular types include:
