Optical Filter, Mercury Line, 25.4 mm, 253.7±3 nm Center, 11±3nm FWHM
Optical Filter, Mercury Line, 25.4 mm, 253.7±3 nm Center, 11±3nm FWHM
Model: 10MLF10-254
Product Series Overview

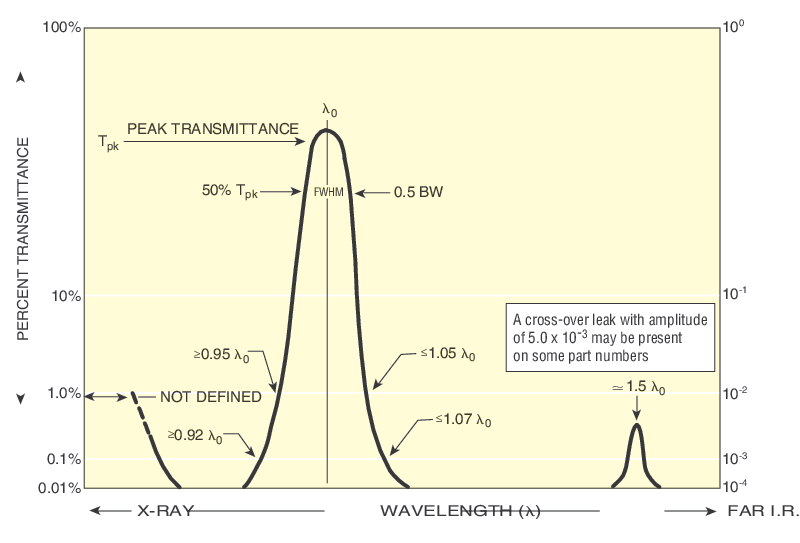

Mercury Line Bandpass FiltersThe 10MLF10-254 Mercury Line Bandpass Filter is a 1 inch (25.4 mm) diameter, Mercury line filter with a center wavelength of 253.7 ± 3 nm, and a full width half max of 11 ± 3 nm.
Specifications
- TypeMercury Line Filters
- Center Wavelength253.7 nm
- Center Wavelength Tolerance±3 nm
- FWHM11±3 nm
- Effective Index of Refraction1.39
- SizeØ25.4 mm
- Size Tolerance+0 mm/-0.8 mm
- Thickness0.20 in.
- Surface Quality80-50 scratch-dig
- Minimum Peak Transmission12%
- Cleaning
Resources & Downloads
Other
10MLF10-254 RoHS Certificate(263.4 kB, PDF)
