Flip-up™ Optical Filter Mount
Flip-up™ Optical Filter Mount
Our Flip-up filter holder lets you quickly insert or remove filters in your experiment. Flip the filter up when you need it, and then snap it out of the way.
- Effortlessly move filters in and out of beam path
- Optic held by set screw or retaining ring
- Infinitely stackable to enable wide-range attenuation
- Holds both thin and thick optics See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9897 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| 9897-M | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features

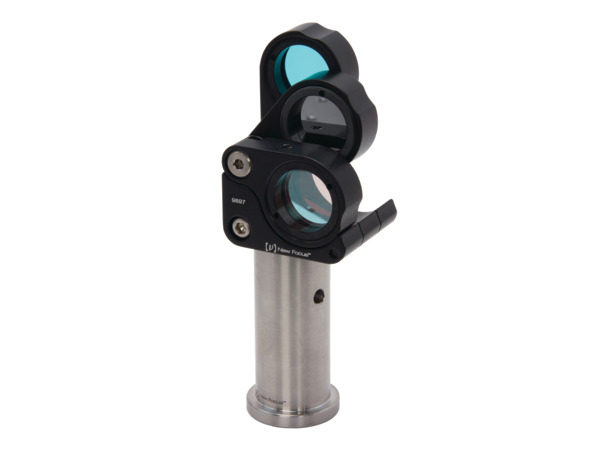

Stack Any Number of Filters
Stacking any number of Flip-up mounts is easy with a screw and nut. Each filter can be individually flipped into and out of the beam path.

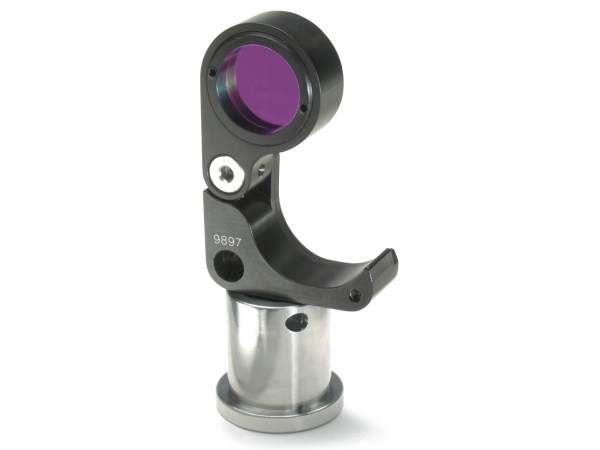

Filters Aligned to Post
In the up position, this mount locates the optic directly in line with and 2.0 in. (50.8 mm) above the mounting post so your filters are perfectly aligned with the rest of your optical system without needing adaptor plates.

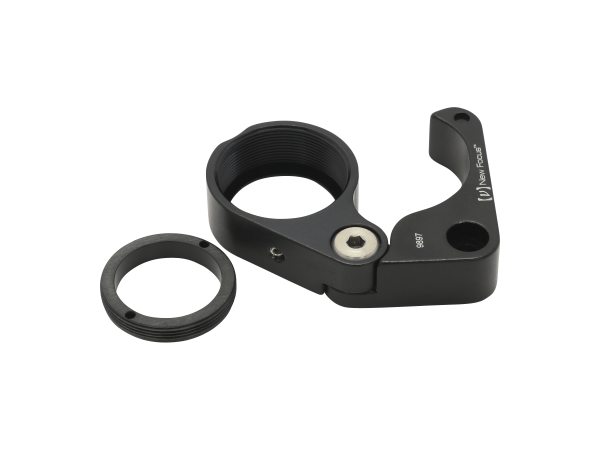

Mount Thick or Thin Filters
Both thin and thick optics are held firmly, using either the threaded Delrin retaining ring or the standard set screw that is also included.
