Optical Filter, Mercury Line, 25.4 mm, 404.7±2 nm Center 10±2nm FWHM
Optical Filter, Mercury Line, 25.4 mm, 404.7±2 nm Center 10±2nm FWHM
Model: 10MLF10-405
Product Series Overview

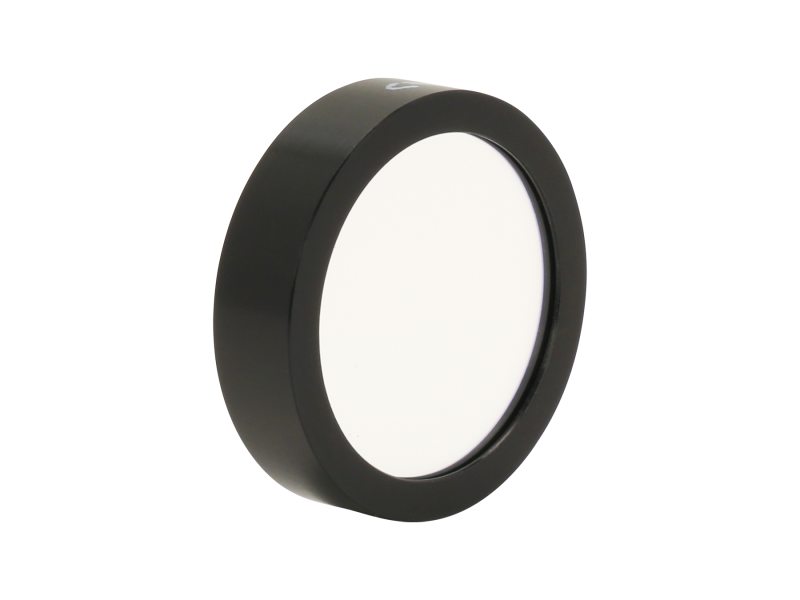

Mercury Line Bandpass FiltersThe 10MLF10-405 Mercury Line Bandpass Filter is a 1 inch (25.4 mm) diameter, Mercury line filter with a center wavelength of 404.7 ± 2 nm, and a full width half max of 10 ± 2 nm.
Specifications
- TypeMercury Line Filters
- Center Wavelength404.7 nm
- Center Wavelength Tolerance±2 nm

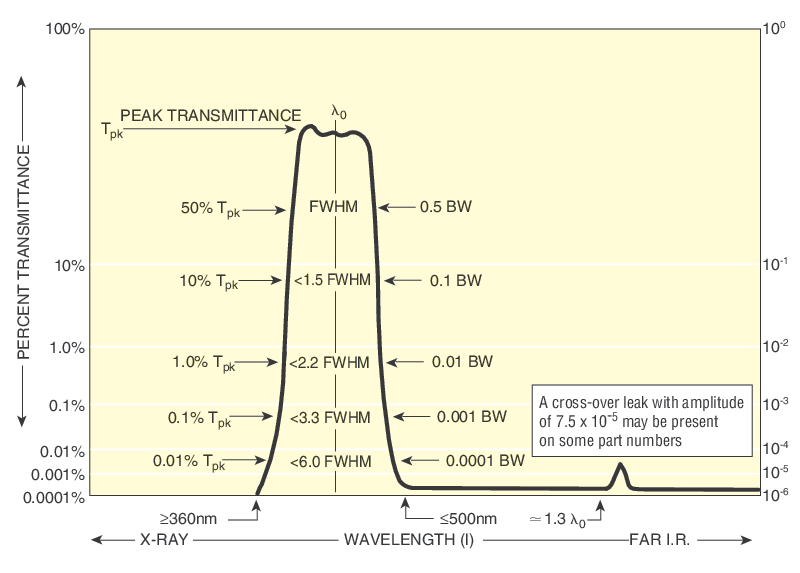

- FWHM10±2 nm
- Effective Index of Refraction2
- SizeØ25.4 mm
- Size Tolerance+0 mm/-0.8 mm
- Thickness0.20 in.
- Surface Quality80-50 scratch-dig
- Minimum Peak Transmission40%
- Cleaning
Resources & Downloads
Other
10MLF10-405 RoHS Certificate(263 kB, PDF)
