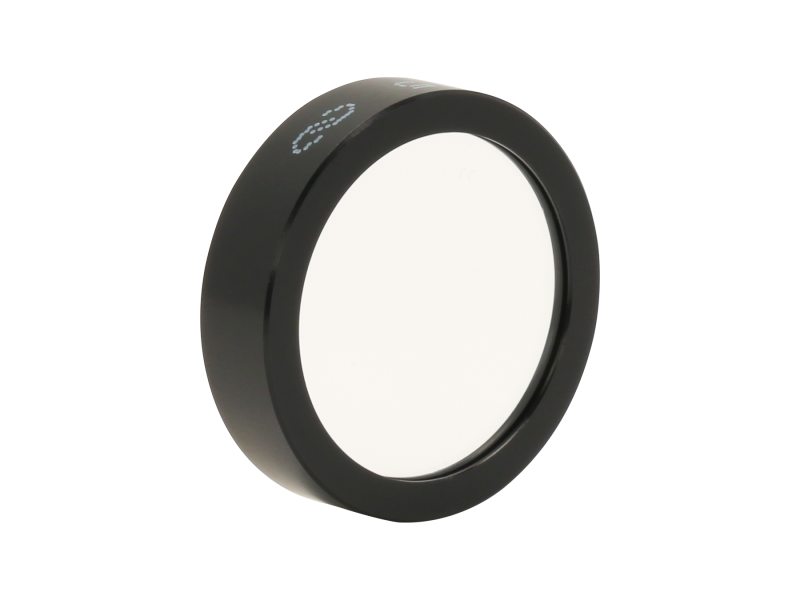

Optical Filter, Mercury Line, 25.4 mm, 546.1±2 nm Center, 10±2nm FWHM
Optical Filter, Mercury Line, 25.4 mm, 546.1±2 nm Center, 10±2nm FWHM
Model: 10MLF10-546
Product Series Overview
Mercury Line Bandpass FiltersThe 10MLF10-546 Mercury Line Bandpass Filter is a 1 inch (25.4 mm) diameter, Mercury line filter with a center wavelength of 546.1 ± 2 nm, and a full width half max of 10 ± 2 nm.
Specifications
- TypeMercury Line Filters
- Center Wavelength546.1 nm
- Center Wavelength Tolerance±2 nm
- FWHM10±2 nm
- Effective Index of Refraction2
- SizeØ25.4 mm
- Size Tolerance+0 mm/-0.8 mm
- Thickness0.25 in.
- Surface Quality80-50 scratch-dig
- Minimum Peak Transmission50%
- Cleaning
