Laser Diode Optical Mount Adaptors
Laser Diode Optical Mount Adaptors
These laser diode mounting adapters are used to mount TO-Can or cylindrical packaged laser diodes inside 1 inch optical mounts for alignment purposes.
- Mount TO-Can laser diodes in 1 in. optical mounts
- Mount cylindrical laser diode packages
- Compatible with PERFORMA™ and ULTIMA® mounts See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CLD-1Optical Mount Adapter, 25.4 mm, 0.6 in. Cylindrical Laser Diode | In Stock | ||||
 | CLH-11Collimator and Laser Diode Adapter, 11 mm, 1 inch Mirror Mounts | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CLH-9Collimator and Laser Diode Adapter, 9 mm, 1 inch Mirror Mounts | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LDA-58Optical Mount Adaptor, TO-56 to 1 in. Mount | |||||
 | LDA-90Optical Mount Adaptor, TO-9 to 1 in. Mount | In Stock |
Features

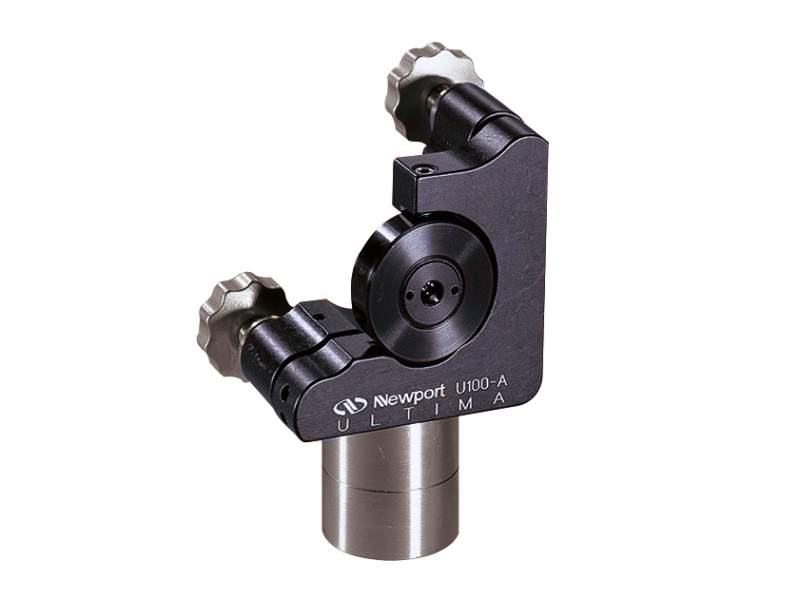

Mounted a Laser Diode in an Optical Mount
U100-A with LDA-58 installed.
All the adaptors have an outside diameter of 1 in. (25.4 mm) and can be mounted in PERFORMA and ULTIMA optical mounts for tip-tilt.

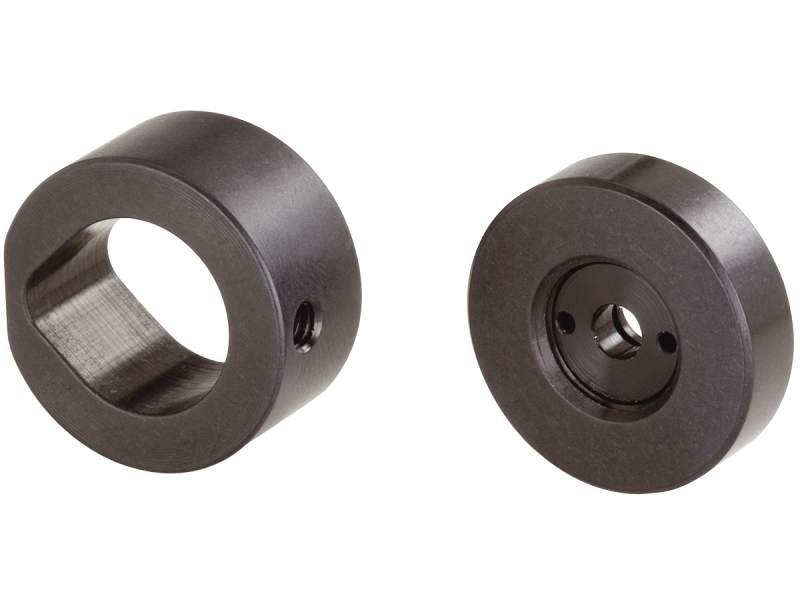

TO-Can Mounting Adaptors

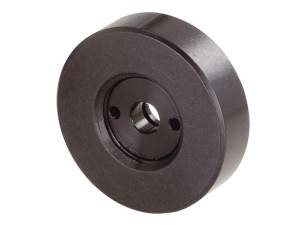

The LDA-58 TO-Can Laser Diode Adaptor securely mounts standard TO-5.6 TO cans. The LDA-90 TO-Can Laser Diode Adaptor securely mounts standard TO-9 TO cans. Both use a retaining ring to secure the laser diode.
Cylindrical Package Laser Diode Mounting Adaptors
The CLD-1 Cylindrical Diode Adaptor mounts cylindrical laser diode packages with an outside diameter up to 0.6 inch (15.2 mm).
Collimator mounts adapters

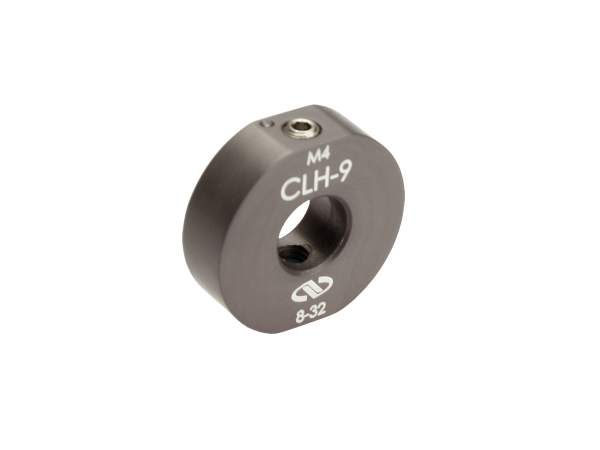

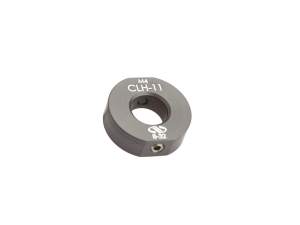

CLH-9 and CLH-11 allows fiber optic collimators and laser diode packages to be mounted into most 1 inch (25.4 mm) diameter mirror mounts.
