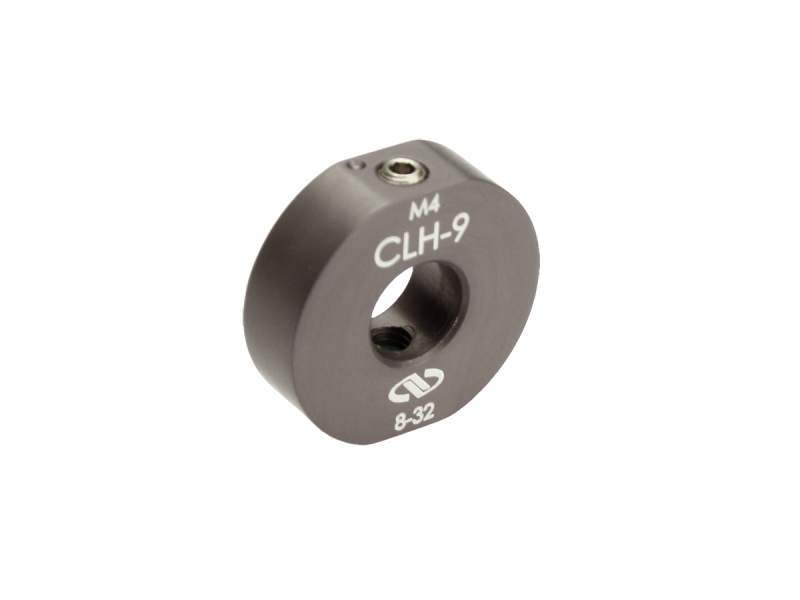

Collimator and Laser Diode Adapter, 9 mm, 1 inch Mirror Mounts
Collimator and Laser Diode Adapter, 9 mm, 1 inch Mirror Mounts
Model: CLH-9
Product Series Overview
Laser Diode Optical Mount AdaptorsThe CLH-9 Optical Mount Adapter allows 9 mm diameter collimators to be mounted into most 1 inch (25.4 mm) diameter mirror mounts.
Resources & Downloads
Other
CLH-9_RoHS2021.pdf(681.1 kB, PDF)
2D Product Drawings
CLH DWG.pdf(265 kB, PDF)
