Collimator and Laser Diode Adapter, 11 mm, 1 inch Mirror Mounts

Laser Diode Optical Mount Adaptors

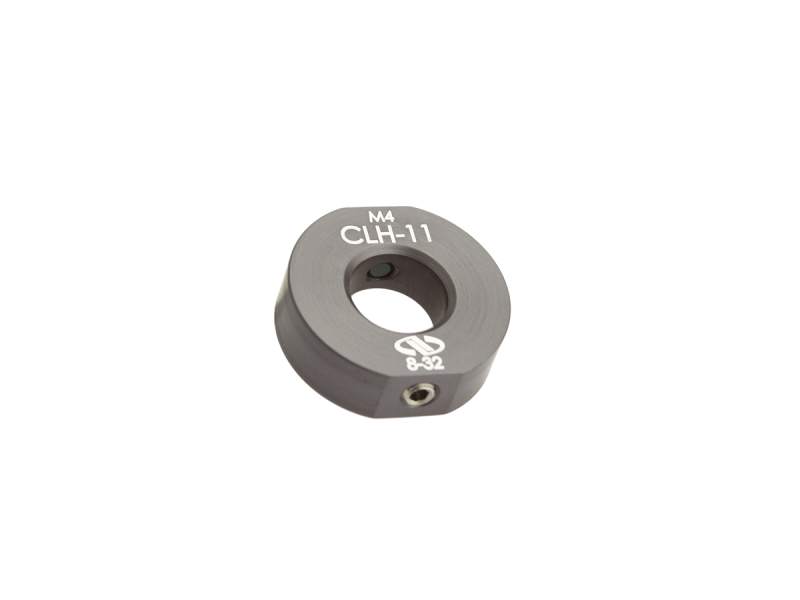

The CLH-11 Collimator and Laser Diode Adapter allows 11 mm diodes or The F-C5 Series collimators to be mounted into most 1 inch (25.4 mm) diameter mirror mounts.

Specifications

Technical Specs

Type
Collimator Holder
Inner Diameter
11 mm
Outside Diameter
25.4 mm

Type
Collimator Holder
Inner Diameter
11 mm
Outside Diameter
25.4 mm

Resources & Downloads

3D Product Models

Download CAD Files

Other

CLH-11_RoHS2021.pdf(680.7 kB, PDF)

2D Product Drawings

CLH DWG.pdf(265 kB, PDF)
