Compare Model Drawings, CAD & Specs Core Diameter Numerical Aperture Transmittance Range Fiber Length Fiber Material Availability Price
77524
$195
In Stock
 77524 3.2 mm 0.56 400 - 1500 nm 24 in. Glass
In Stock
 $195
77525
$225
Contact Us
 77525 3.2 mm 0.56 400 - 1500 nm 36 in. Glass
Contact Us
 $225
77526
$295
Contact Us
 77526 3.2 mm 0.56 400 - 1500 nm 48 in. Glass
Contact Us
 $295
77527
$450
5 Weeks
 77527 3.2 mm 0.56 400 - 1500 nm 72 in. Glass
5 Weeks
 $450
77575
$695
Contact Us
 77575 1.6 mm 0.22 260 - 2200 nm 24 in. High Grade Fused Silica
Contact Us
 $695
77576
$825
Contact Us
 77576 1.6 mm 0.22 260 - 2200 nm 36 in. High Grade Fused Silica
Contact Us
 $825
77577
$1,030
5 Weeks
 77577 3.2 mm 0.22 260 - 2200 nm 24 in. High Grade Fused Silica
5 Weeks
 $1,030

Features

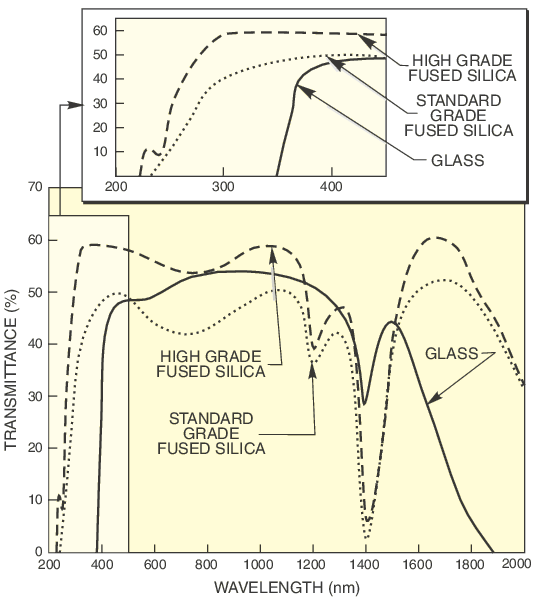

Broad Transmittance Range Over UV to NIR Wavelengths

Single branch fiber bundles have a broader spectral range than Liquid Light Guides, transmitting from 260 to 2200 nm. Fiber bundles with glass cores constructed from glass, standard grade fused silica, and high grade fused silica are offered. A light guide should be chosen based on the wavelength range of transmittance and transmittance efficiency required.

High throughput

Compared to Large Core Optical Fibers, single branch fiber bundles have significantly higher throughput when larger filament or arc light sources are used.
