Liquid Light Guides

Products
Specifications
Features
Accessories
Resources
Contact Us

Overview

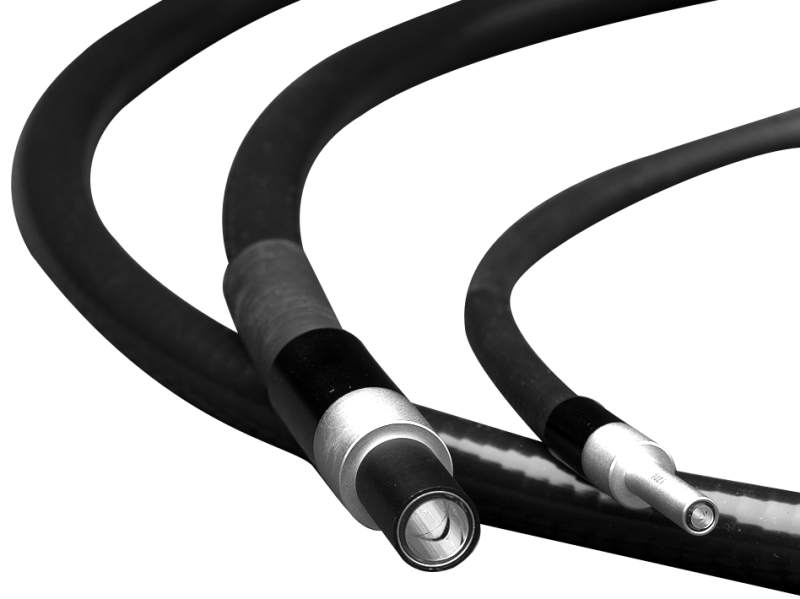

If greater light transmittance and throughput is valued instead of a wider transmittance range, a liquid light guide is an excellent alternative to traditional fiber bundles. These light guides are cheaper and provide greater durability than fiber bundles made of standard fused silica material. Oriel®offers liquid light for various wavelength regions.

High ultraviolet to near-infrared throughput
Large acceptance angle
Deep UV light guides available
Bifurcated and trifurcated versions

See All Features

Products

Compare	Model	Compatibility	rankScore		Type	Transmittance Range	Core Diameter	Fiber Length	Numerical Aperture	Availability	Price	Brand
77554 Liquid Light Guide, 39.4 in., 300-650 nm, 0.12 in. Core, 0.59 NA $295 5 Weeks	77554 Liquid Light Guide, 39.4 in., 300-650 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	1.0	0.0	Liquid Light Guide	300 - 650 nm	3.0 mm	1 m	0.59	5 Weeks	$295	Oriel Instruments
76841 Liquid Light Guide, 79 in., 220-600 nm, 0.12 in. Core, 0.43 NA $1,235 In Stock	76841 Liquid Light Guide, 79 in., 220-600 nm, 0.12 in. Core, 0.43 NA	UNIVERSAL	1.0	1.0	Liquid Light Guide	220 - 600 nm	3.0 mm	2 m	0.43	In Stock	$1,235	Oriel Instruments
76842 Liquid Light Guide, 39.4 in., 220-600 nm, 0.2 in. Core, 0.43 NA $1,335 In Stock	76842 Liquid Light Guide, 39.4 in., 220-600 nm, 0.2 in. Core, 0.43 NA	UNIVERSAL	1.0	2.0	Liquid Light Guide	220 - 600 nm	5.1 mm	1 m	0.43	In Stock	$1,335	Oriel Instruments
76843 Liquid Light Guide, 79 in., 220-600 nm, 0.2 in. Core, 0.43 NA $1,850 In Stock	76843 Liquid Light Guide, 79 in., 220-600 nm, 0.2 in. Core, 0.43 NA	UNIVERSAL	1.0	3.0	Liquid Light Guide	220 - 600 nm	5.1 mm	2 m	0.43	In Stock	$1,850	Oriel Instruments
77555 Liquid Light Guide, 79 in., 300-650 nm, 0.12 in. Core, 0.59 NA $425 Show	77555 Liquid Light Guide, 79 in., 300-650 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	1.0	4.0	Liquid Light Guide	300 - 650 nm	3.0 mm	2 m	0.59	Show	$425	Oriel Instruments
77556 Liquid Light Guide, 39.4 in., 300-650 nm, 0.2 in. Core, 0.59 NA $475 5 Weeks	77556 Liquid Light Guide, 39.4 in., 300-650 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	1.0	5.0	Liquid Light Guide	300 - 650 nm	5.1 mm	1 m	0.59	5 Weeks	$475	Oriel Instruments
77557 Liquid Light Guide, 79 in., 300-650 nm, 0.2 in. Core, 0.59 NA $635 4 Weeks	77557 Liquid Light Guide, 79 in., 300-650 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	1.0	6.0	Liquid Light Guide	300 - 650 nm	5.1 mm	2 m	0.59	4 Weeks	$635	Oriel Instruments
77628 Liquid Light Guide, 39.4 in., 300-650 nm, 0.3 in. Core, 0.59 NA $695 In Stock	77628 Liquid Light Guide, 39.4 in., 300-650 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	1.0	7.0	Liquid Light Guide	300 - 650 nm	7.6 mm	1 m	0.59	In Stock	$695	Oriel Instruments
77629 Liquid Light Guide, 79 in., 300-650 nm, 0.3 in. Core, 0.59 NA $1,030 5 Weeks	77629 Liquid Light Guide, 79 in., 300-650 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	1.0	8.0	Liquid Light Guide	300 - 650 nm	7.6 mm	2 m	0.59	5 Weeks	$1,030	Oriel Instruments
76846 Liquid Light Guide, Bifurcated, 300-650 nm, 0.12 in. Core, 39.4 in. Legs $1,725 Contact Us	76846 Liquid Light Guide, Bifurcated, 300-650 nm, 0.12 in. Core, 39.4 in. Legs	UNIVERSAL	1.0	9.0	Bifurcated Liquid Light Guide	300 - 650 nm	3.0 mm	1 m	0.59	Contact Us	$1,725	Oriel Instruments
76847 Liquid Light Guide, Bifurcated, 300-650 nm, 0.12 in. Core, 79 in. Legs $1,620 Contact Us	76847 Liquid Light Guide, Bifurcated, 300-650 nm, 0.12 in. Core, 79 in. Legs	UNIVERSAL	1.0	10.0	Bifurcated Liquid Light Guide	300 - 650 nm	3.0 mm	2 m	0.59	Contact Us	$1,620	Oriel Instruments
77566 Liquid Light Guide, 39.4 in., 340-800 nm, 0.12 in. Core, 0.59 NA $425 5 Weeks	77566 Liquid Light Guide, 39.4 in., 340-800 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	1.0	11.0	Liquid Light Guide	340 - 800 nm	3.0 mm	1 m	0.59	5 Weeks	$425	Oriel Instruments
77567 Liquid Light Guide, 79 in., 340-800 nm, 0.12 in. Core, 0.59 NA $475 In Stock	77567 Liquid Light Guide, 79 in., 340-800 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	1.0	12.0	Liquid Light Guide	340 - 800 nm	3.0 mm	2 m	0.59	In Stock	$475	Oriel Instruments
77568 Liquid Light Guide, 39.4 in., 340-800 nm, 0.2 in. Core, 0.59 NA $460 5 Weeks	77568 Liquid Light Guide, 39.4 in., 340-800 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	1.0	13.0	Liquid Light Guide	340 - 800 nm	5.1 mm	1 m	0.59	5 Weeks	$460	Oriel Instruments
77569 Liquid Light Guide, 79 in., 340-800 nm, 0.2 in. Core, 0.59 NA $670 5 Weeks	77569 Liquid Light Guide, 79 in., 340-800 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	1.0	14.0	Liquid Light Guide	340 - 800 nm	5.1 mm	2 m	0.59	5 Weeks	$670	Oriel Instruments
77631 Liquid Light Guide, 39.4 in., 340-800 nm, 0.3 in. Core, 0.59 NA $820 4 Weeks	77631 Liquid Light Guide, 39.4 in., 340-800 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	1.0	15.0	Liquid Light Guide	340 - 800 nm	7.6 mm	1 m	0.59	4 Weeks	$820	Oriel Instruments
77632 Liquid Light Guide, 79 in., 340-800 nm, 0.3 in. Core, 0.59 NA $1,235 In Stock	77632 Liquid Light Guide, 79 in., 340-800 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	1.0	16.0	Liquid Light Guide	340 - 800 nm	7.6 mm	2 m	0.59	In Stock	$1,235	Oriel Instruments
76848 Liquid Light Guide, Bifurcated, 340-800 nm, 0.12 in. Core, 39.4 in. Legs $1,645 In Stock	76848 Liquid Light Guide, Bifurcated, 340-800 nm, 0.12 in. Core, 39.4 in. Legs	UNIVERSAL	1.0	17.0	Bifurcated Liquid Light Guide	340 - 800 nm	3.0 mm	1 m	0.59	In Stock	$1,645	Oriel Instruments
76849 Liquid Light Guide, Bifurcated, 340-800 nm, 0.12 in. Core, 79 in. Legs $2,060 Contact Us	76849 Liquid Light Guide, Bifurcated, 340-800 nm, 0.12 in. Core, 79 in. Legs	UNIVERSAL	1.0	18.0	Bifurcated Liquid Light Guide	340 - 800 nm	3.0 mm	2 m	0.59	Contact Us	$2,060	Oriel Instruments
77634 Liquid Light Guide, 39.4 in., 420-2000 nm, 0.12 in. Core, 0.52 NA $380 In Stock	77634 Liquid Light Guide, 39.4 in., 420-2000 nm, 0.12 in. Core, 0.52 NA	UNIVERSAL	1.0	19.0	Liquid Light Guide	420 - 2000 nm	3.0 mm	1 m	0.52	In Stock	$380	Oriel Instruments
77635 Liquid Light Guide, 79 in., 420-2000 nm, 0.12 in. Core, 0.52 NA $820 In Stock	77635 Liquid Light Guide, 79 in., 420-2000 nm, 0.12 in. Core, 0.52 NA	UNIVERSAL	1.0	20.0	Liquid Light Guide	420 - 2000 nm	3.0 mm	2 m	0.52	In Stock	$820	Oriel Instruments
77636 Liquid Light Guide, 39.4 in., 420-2000 nm, 0.2 in. Core, 0.52 NA $495 5 Weeks	77636 Liquid Light Guide, 39.4 in., 420-2000 nm, 0.2 in. Core, 0.52 NA	UNIVERSAL	1.0	21.0	Liquid Light Guide	420 - 2000 nm	5.1 mm	1 m	0.52	5 Weeks	$495	Oriel Instruments
77637 Liquid Light Guide, 79 in., 420-2000 nm, 0.2 in. Core, 0.52 NA $720 5 Weeks	77637 Liquid Light Guide, 79 in., 420-2000 nm, 0.2 in. Core, 0.52 NA	UNIVERSAL	1.0	22.0	Liquid Light Guide	420 - 2000 nm	5.1 mm	2 m	0.52	5 Weeks	$720	Oriel Instruments
77638 Liquid Light Guide, 39.4 in., 420-2000 nm, 0.3 in. Core, 0.52 NA $885 5 Weeks	77638 Liquid Light Guide, 39.4 in., 420-2000 nm, 0.3 in. Core, 0.52 NA	UNIVERSAL	1.0	23.0	Liquid Light Guide	420 - 2000 nm	7.6 mm	1 m	0.52	5 Weeks	$885	Oriel Instruments
77639 Liquid Light Guide, 79 in., 420-2000 nm, 0.3 in. Core, 0.52 NA $1,315 5 Weeks	77639 Liquid Light Guide, 79 in., 420-2000 nm, 0.3 in. Core, 0.52 NA	UNIVERSAL	1.0	24.0	Liquid Light Guide	420 - 2000 nm	7.6 mm	2 m	0.52	5 Weeks	$1,315	Oriel Instruments

Show All

Specifications

Transmittance Range	220-600 nm	300-650 nm	340-800 nm	420-2000 nm
Numerical Aperture	0.43	0.59	0.59	0.52
F/#	1.2	0.85	0.85	0.96
Acceptance Cone, 2a	50°	72°	72°	62°

Specifications

Transmittance Range	220-600 nm	300-650 nm	340-800 nm	420-2000 nm
Numerical Aperture	0.43	0.59	0.59	0.52
F/#	1.2	0.85	0.85	0.96
Acceptance Cone, 2a	50°	72°	72°	62°

Features

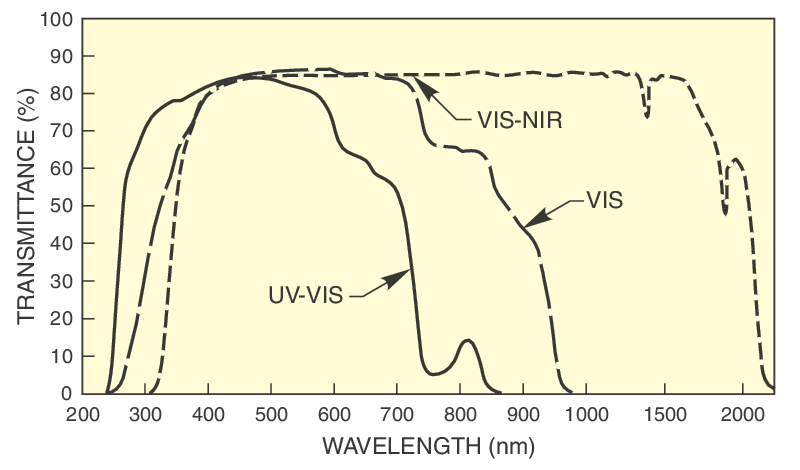

High ultraviolet to near-infrared throughput

Liquid light guides provide much greater transmittance than Fused Silica Fiber Bundles, do not have the risk of fiber breakage, and are less expensive. Data shown for 2 meter long light guides.

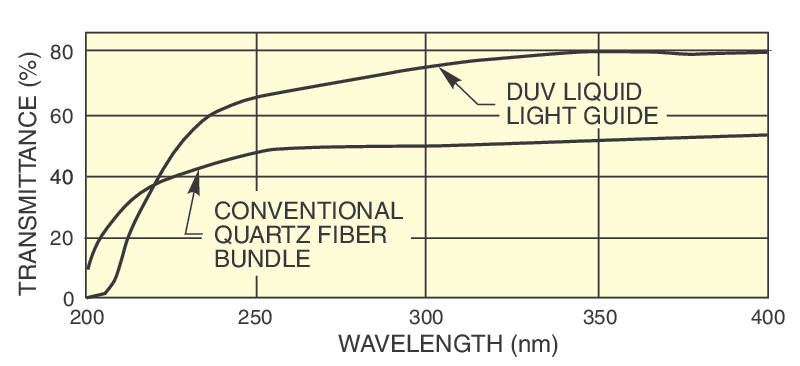

Deep UV Light Guides Available

Deep UV (DUV) liquid light guides capable of transmitting wavelengths down to 220 nm are available. These are helpful for transmitting the high UV intensity of an Arc Lamp or Deuterium Lamp. For small point sources 1 mm or less in size, a Solarization Resistant Fiber is recommended.

Bifurcated and Trifurcated Versions

For dual source applications, bifurcated liquid light guides are available. The two cores are stacked atop each other in the common end, allowing for complete focus of each individual light source onto its own irradiance area. Trifurcated light guides are also available – contact us for more information.

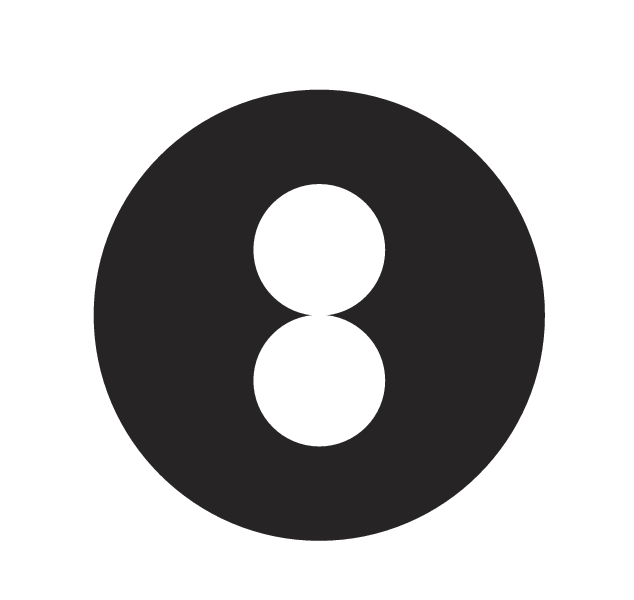

Front view of common end of a bifurcated liquid light guide – the end does not merge into a single circular core.

Features

High ultraviolet to near-infrared throughput

Liquid light guides provide much greater transmittance than Fused Silica Fiber Bundles, do not have the risk of fiber breakage, and are less expensive. Data shown for 2 meter long light guides.

Deep UV Light Guides Available

Bifurcated and Trifurcated Versions

Front view of common end of a bifurcated liquid light guide – the end does not merge into a single circular core.

Accessories

Fiber Bundle Mounts

Description	Compatibility	Avail.	Price
77817 Fiber Bundle Mount, Circular Bundle to 1.5 Inch Male Flange	UNIVERSAL	4 Weeks	$140
77357 Fiber Bundle Mount, Circular Bundle to 1.5 Inch Female Flange	UNIVERSAL	5 Weeks	$100
77358 Fiber Bundle Mount, Rectangular Bundle to 1.5 Inch Female Flange	UNIVERSAL	5 Weeks	$550
77814 Fiber Bundle Holder, 11 mm, Optical Post Mounted	UNIVERSAL	5 Weeks	$165

Fiber Positioner Mount

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77802 Fiber Bundle Holder, Circular Bundle to 1.5 Inch Male Flange, XYZ Adjust	UNIVERSAL		5 Weeks	$350

Monochromator Fiber Adapters

Description	Compatibility	Avail.	Price
77529 F/# Matcher, XYZ Focus Adjustment, 1.5 Inch Female Flange	UNIVERSAL	5 Weeks	$2,530
77860 Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Set Screws	UNIVERSAL	5 Weeks	$165
77863 Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Quick Disconnect	UNIVERSAL	5 Weeks	$510

Beam Probes

Description	Compatibility	Avail.	Price
76595 Collimating Beam Probe, Fiber Bundle, 25-150 mm, 1.5 Inch Flange	UNIVERSAL	4 Weeks	$1,030
76596 Collimating Beam Probe, Fiber Bundle, 70-350 mm, 1.5 Inch Flange	UNIVERSAL	Contact Us	$615
76597 Collimating Beam Probe, Fiber Bundle 150-650 mm, 2 Inch Flange	UNIVERSAL	5 Weeks	$875
76600 Collimating Beam Probe, Liquid Light Guide 25-40 mm, 1.5 Inch Flange	UNIVERSAL	5 Weeks	$410
76605 Collimating Beam Probe, Liquid Light Guide, 40-50 mm, 1.5 Inch Flange	UNIVERSAL	5 Weeks	$655

Ferrules and Ferrule Converters

Description	Compatibility	Avail.	Price
77675 Ferrule Converter, ST Termination to 11mm Standard Ferrule	UNIVERSAL	In Stock	$155
77663 Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.48 inch Length	UNIVERSAL	Contact Us	$21
77640 Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.38 inch Length	UNIVERSAL	5 Weeks	$20
77641 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.38 inch Length	UNIVERSAL	In Stock	$19
77670 Ferrule Converter, SMA Termination to 11mm Standard Ferrule	UNIVERSAL	In Stock	$50
77642 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length	UNIVERSAL	In Stock	$26
77666 Fiber Bundle Ferrule, 11mm, 0.25 inch Inner Dia., 0.48 inch Length	UNIVERSAL	In Stock	$55
77665 Fiber Bundle Ferrule, 11mm, 0.20 inch Inner Dia., 0.38 inch Length	UNIVERSAL	In Stock	$29
77667 Fiber Bundle Ferrule, 11mm, 0.31 inch Inner Dia., 0.48 inch Length	UNIVERSAL	1 Week	$30
