Fiber Bundle Mount, Circular Bundle to 1.5 Inch Male Flange

Fiber Holders and Mounts

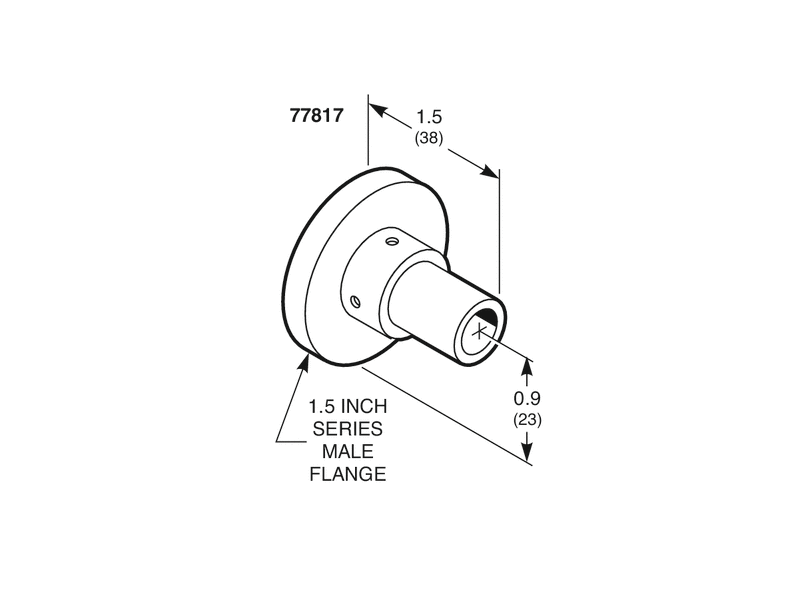

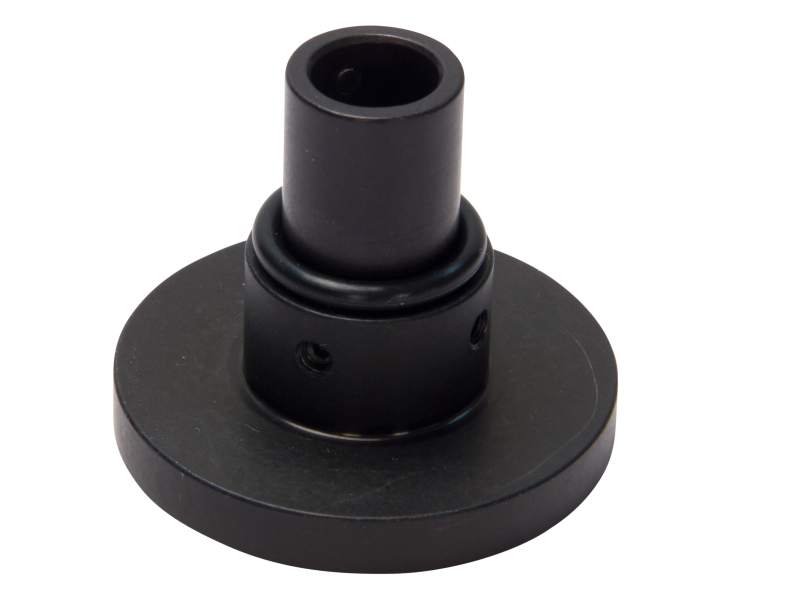

The 77817 Fiber Bundle Flanged Mount holds our circular to circular and circular to rectangular fiber bundles at the input or output of any Oriel^® 1.5 Inch Series male flanged component or instrument. It offers 0.5 inch (12.7 mm) adjustment along the optical axis. Once the fiber is positioned properly, it is secured with set screws.

Specifications

Technical Specs

Type
Fiber Bundle Mount
Flange Series Size
1.5 Inch, Male

Type
Fiber Bundle Mount
Flange Series Size
1.5 Inch, Male
