Fixed Fiber Optic Collimators
Fixed Fiber Optic Collimators

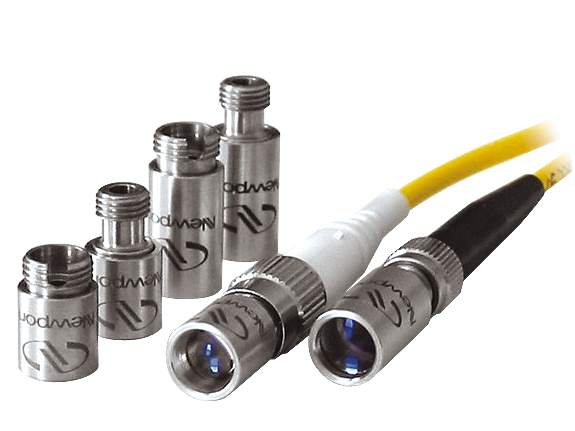

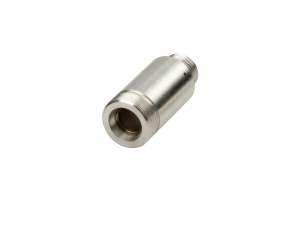

Fixed fiber-optic collimators are designed to accept FC or SMA terminated optical fibers and collimate a beam exiting a single-mode fiber to a 2.0 mm to 3.0 mm beam. Conversely, a laser beam can be launched into the assembly to focus the beam into a connected fiber.
- Diffraction limited performance
- Compact and rugged stainless steel (304) housing
- Individually aligned and tested for the specified wavelengths
- Better than 1.0° beam pointing accuracy See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-C5-F2-1310Fiber Optic Collimator, FC, 1310 nm, 2.0 mm beam | In Stock | ||||

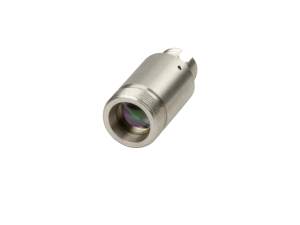

 | F-C5-F2-1550Fiber-optic Collimator, FC, 1550 nm, 2.0 mm beam | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

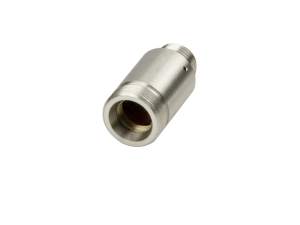

 | F-C5-F2-543Fiber-optic Collimator, FC, 543 nm, 2.0 mm beam | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | F-C5-F2-780Fiber-optic Collimator, FC, 780 nm, 2.2 mm beam | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

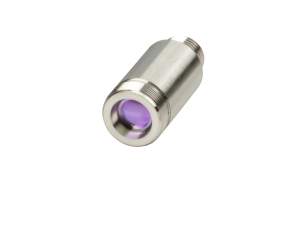

 | F-C5-F3-1310Fiber-optic Collimator, FC, 1310 nm, 2.8 mm beam | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | F-C5-F3-543Fiber-optic Collimator, FC, 543 nm, 3.0 mm beam | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

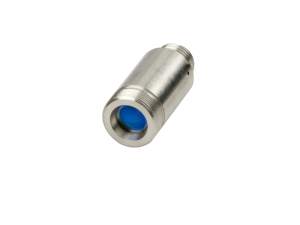

 | F-C5-F3-780F-O Collimator, FC, 780 nm, 3.0 mm beam | In Stock | ||||
 | F-C5-S2-1310F-O Collimator, SMA, 1310 nm, 2.0 mm beam | |||||

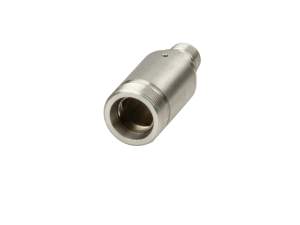

 | F-C5-S2-543Fiber-optic Collimator, SMA, 543 nm, 2.0 mm beam | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

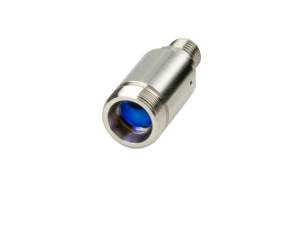

 | F-C5-S2-780Fiber-optic Collimator, SMA, 780 nm, 2.2 mm beam | In Stock |
Features
FC or SMA Fiber Connections
F-C5 Series collimators accept common FC or SMA type connectorized optical fiber.
Optical Post Mounting

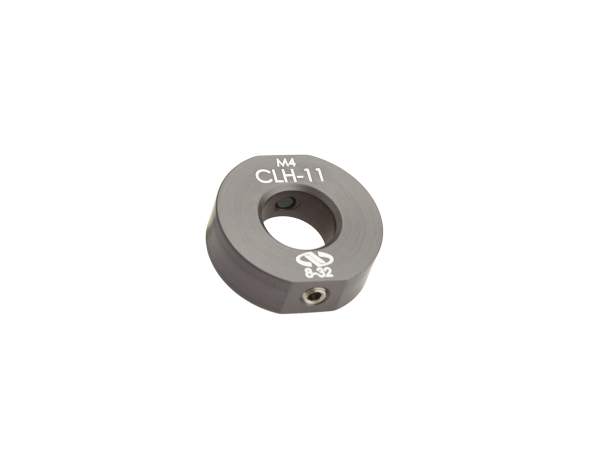

For post mounting these collimators, we suggest the model CLH-11 adaptor which fits into most 1 inch mirror mounts.
Advanced AR Coatings Offer Excellent Performance
High quality, broadband AR coated, glass aspheric lenses are used for low insertion loss and beam sizes only limited by diffraction. Coatings are offered for 543 nm, 780 nm, 1310 nm, and 1550 nm.
Applications
Applications include laser beam delivery systems, as well as coupling the output of a fiber into a detector. Applications of pairs of collimators include beam expansion systems for lab applications, as well as fiber-to-fiber coupling in compact components.
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CLH-11Collimator and Laser Diode Adapter, 11 mm, 1 inch Mirror Mounts | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
