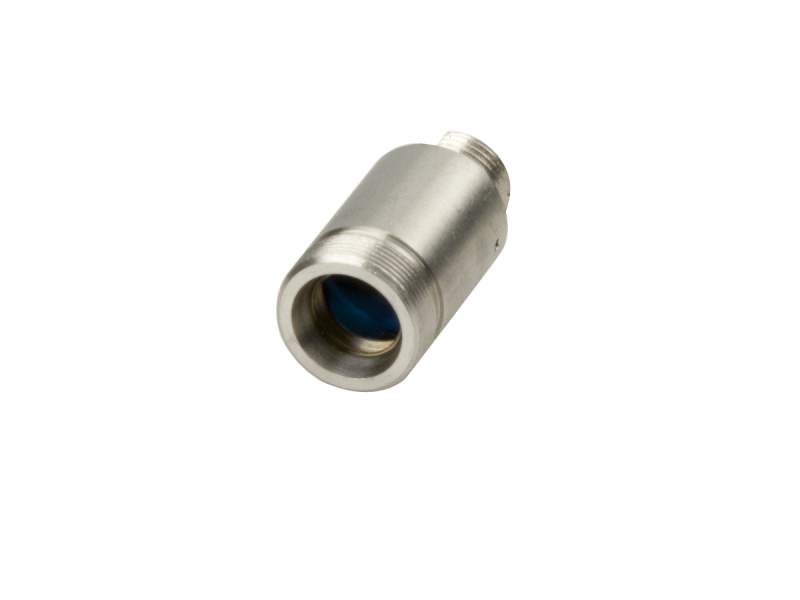

Fiber-optic Collimator, FC, 780 nm, 2.2 mm beam

The F-C5-F2-780 Collimator is designed to accept FC type fiber connectors and collimate a 780 nm beam exiting a single-mode fiber to a 2.0 mm beam. Conversely, a laser beam can be launched into the assembly to focus the beam into a connected fiber. High quality, broadband AR coated, glass aspheric lenses are used for low insertion loss and beam sizes only limited by diffraction.

FC or SMA Fiber Connections

F-C5 Series collimators accept common FC or SMA type connectorized optical fiber.

Optical Post Mounting

For post mounting these collimators, we suggest the model CLH-11 adaptor which fits into most 1 inch mirror mounts.

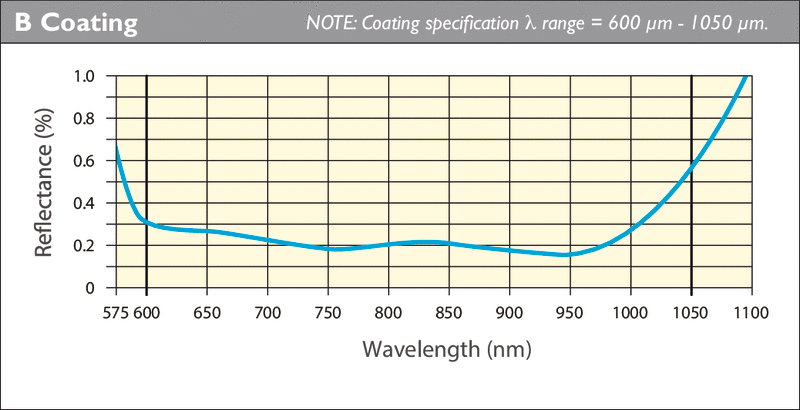

Advanced AR Coatings Offer Excellent Performance

High quality, broadband AR coated, glass aspheric lenses are used for low insertion loss and beam sizes only limited by diffraction. Coatings are offered for 543 nm, 780 nm, 1310 nm, and 1550 nm.

Applications

Applications include laser beam delivery systems, as well as coupling the output of a fiber into a detector. Applications of pairs of collimators include beam expansion systems for lab applications, as well as fiber-to-fiber coupling in compact components.

Specifications

Technical Specs

Type
Fiber-optic Collimator
Fiber Type
Singlemode
Fiber Connector
FC/PC
Operating Wavelength
780 nm
Maximum Insertion Loss
0.25 dB
Typical Insertion Loss
0.15 dB
Operating Humidity
0.85
Maximum Back Reflection
-65 dB
Beam Diameter (1/e<sup>2</sup>)
2.2 mm

Back Focal Length
7.97 mm
Clear Aperture
5.5 mm
Effective Focal Length (EFL)
11.10 mm
Length
22.17 mm
Numeric Aperture
0.3
Polarization Dependent Loss, Maximum
0.03 @ 1550 nm
Polarization Dependent Loss, Typical
0.01 @ 1550 nm

Type
Fiber-optic Collimator
Fiber Type
Singlemode
Fiber Connector
FC/PC
Operating Wavelength
780 nm
Maximum Insertion Loss
0.25 dB
Typical Insertion Loss
0.15 dB
Operating Humidity
0.85
Maximum Back Reflection
-65 dB
Beam Diameter (1/e<sup>2</sup>)
2.2 mm

Back Focal Length
7.97 mm
Clear Aperture
5.5 mm
Effective Focal Length (EFL)
11.10 mm
Length
22.17 mm
Numeric Aperture
0.3
Polarization Dependent Loss, Maximum
0.03 @ 1550 nm
Polarization Dependent Loss, Typical
0.01 @ 1550 nm

Resources & Downloads

2D Product Drawings

F-C5-F2 series(466.7 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		F-IRC4IR Sensor Card, 700-1600 nm, 2 in. Square Sensor	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$215

Similar

Description	Compatibility	Avail.	Price

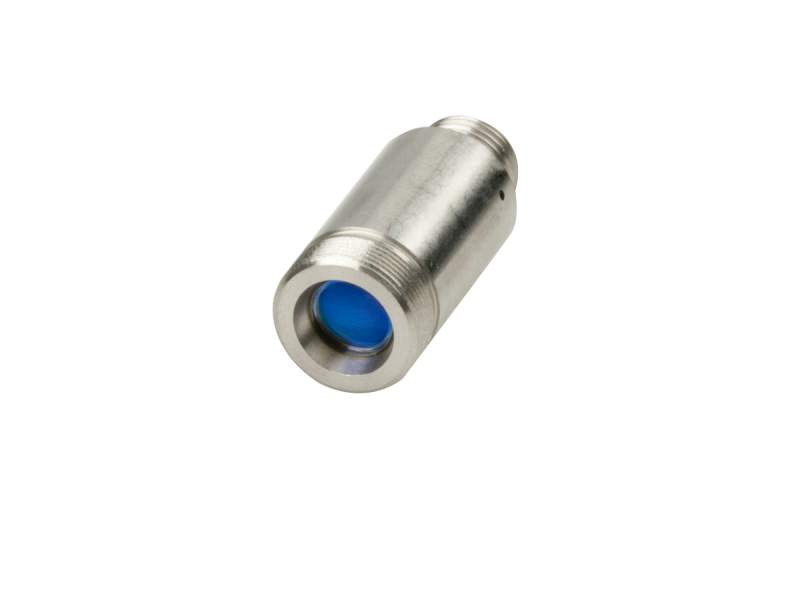

F-C5-F3-780F-O Collimator, FC, 780 nm, 3.0 mm beam	UNIVERSAL	In Stock	$207

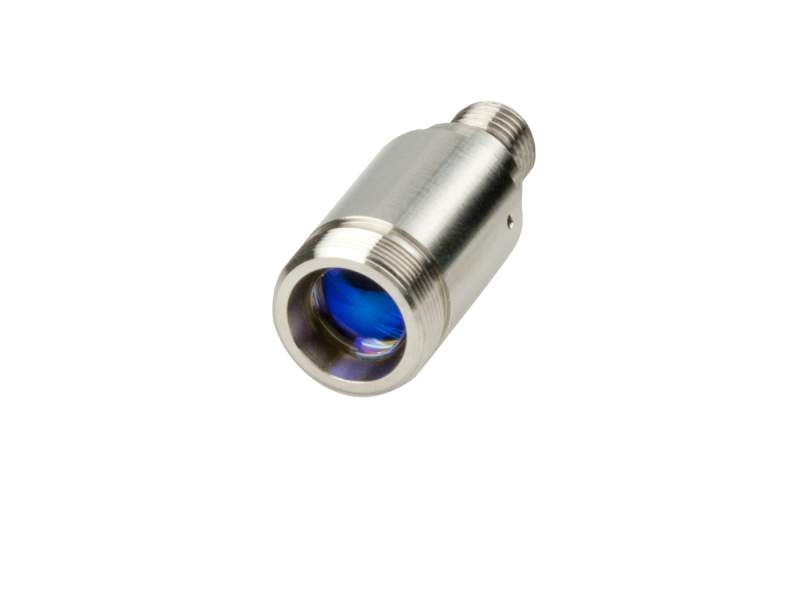

F-C5-S2-780Fiber-optic Collimator, SMA, 780 nm, 2.2 mm beam	UNIVERSAL	In Stock	$290

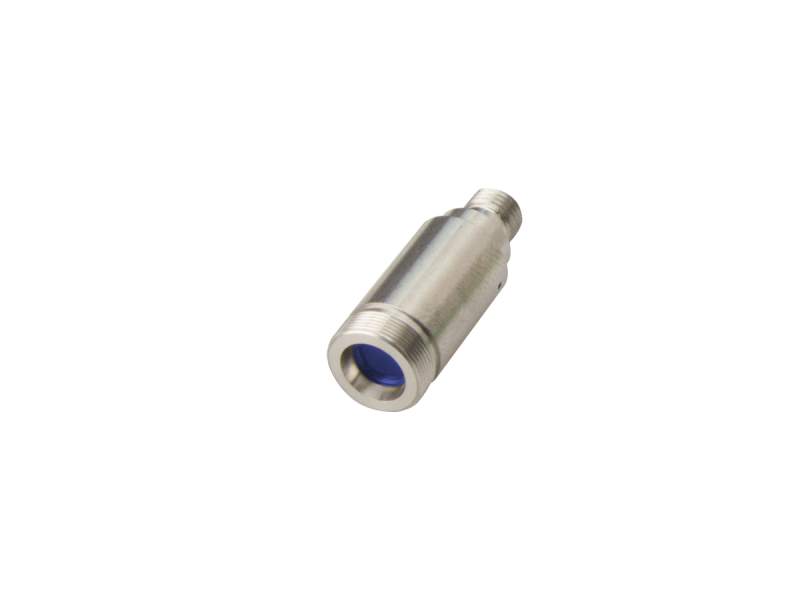

F-C5-S3-780Fiber-optic Collimator, SMA, 780 nm, 3.0 mm beam	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$220
