Fiber Optic Mating Adapter, FC Female to FC Female
Fiber Optic Mating Adapter, FC Female to FC Female
Model: F-MA-FC-FC
Product Series Overview

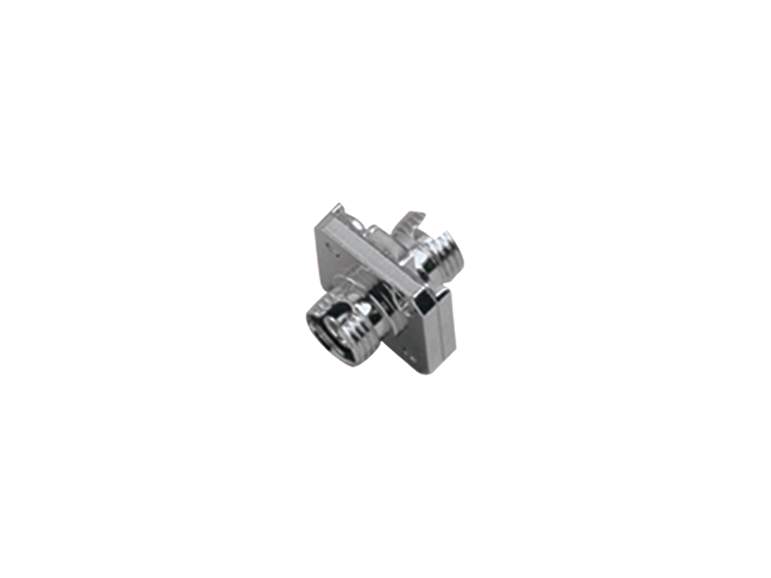

Fiber Optic Mating AdaptorsThe F-MA-FC-FC Optical Fiber Mating Adapter/Sleeve is a wide key adapter used to connect two FC/PC or two FC/APC fibers together with low loss. This model has an FC female fiber connector on each end. It Can be used for single-mode or multi-mode connectorized fibers. This part also replaces the F-MA-FA-FA adapter.

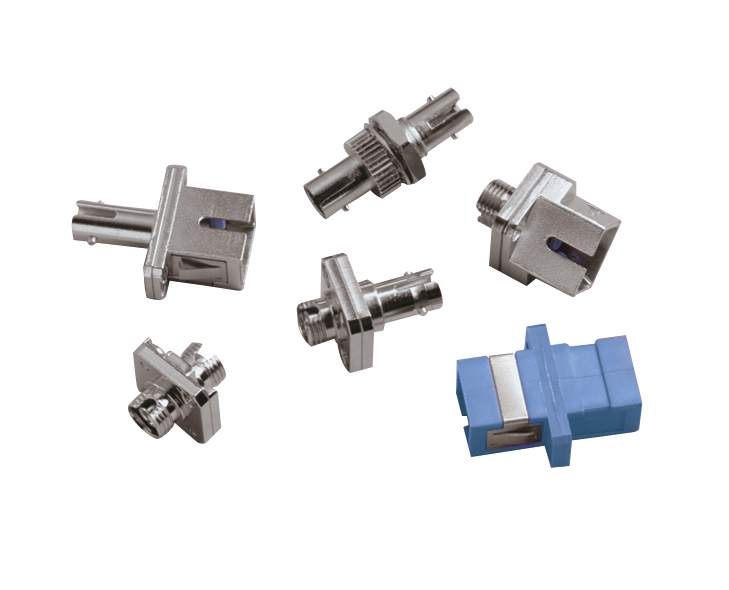

Female to Female Mating Adapters
Each mating adapter is a female-to-female fiber connector. Our standard versions feature like connectors on each side.
Singlemode and Multimode Adapter Capabilities
All models can be used for single-mode or multimode connectors, except the SMA, which is multimode only.
Specifications
- TypeMating Adapter
- Fiber ConnectorFC to FC
- Typical Insertion Loss0.1 dB
- Maximum Insertion Loss0.3 dB
- Operating Temperature-40 to +75 °C
