Visible and IR TO-Can Laser Diodes

Newport's Fabry-Perot TO-Can laser diode components are designed for easy integration into any system. A variety of CW and/or pulsed models are available.

Available wavelengths from 635 to 1565 nm
Economical lasers provide cost savings
Compatible with Newport’s Laser Diode Drivers and Temperature Controllers

See All Features

Show Filters:

Showing 8 of 8 total products

Compatibility:

Description	Compatibility	Size	Type	Center Wavelength	Output Power	Avail.	Price
TO56-102-116Pulsed Laser Diode, TO-56, 1550 nm, 14 W Peak	UNIVERSAL	TO-56	Pulsed Laser Diode	1550 nm	14 W (150 nsec pulse peak power, with 0.1% duty cycle)	Contact Us	$464
TO56-103-116Pulsed Laser Diode, TO-56, 1550 nm, 24 W Peak	UNIVERSAL	TO-56	Pulsed Laser Diode	1550 nm	24W (150 nsec pulse peak power, with 0.1% duty cycle)	In Stock	$464
TO56-114-116Pulsed Laser Diode, TO-56, 1310 nm, 19 W Peak	UNIVERSAL	TO-56	Pulsed Laser Diode	1310 nm	19 W (150 nsec pulse peak power, with 0.1% duty cycle)	In Stock	$464
TO56-116-116Laser Diode, TO-56, 660 nm, 13 W Peak	UNIVERSAL	TO-56	Pulsed Laser Diode	1470 nm	13 W (Peak)	Contact Us

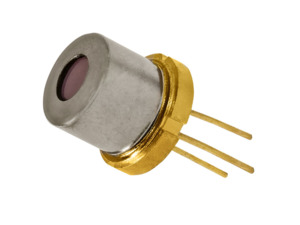

TO9-121-161Laser Diode, TO-9, 1465 nm, 1.8 W	UNIVERSAL	TO-9	CW or Pulsed	1465 nm	1.8 W	In Stock	$237
TO9-147-161Laser Diode, TO-9, 1550 nm, 1.6 W	UNIVERSAL	TO-9	CW or Pulsed	1550 nm	1.6 W	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$279
TO9-148-161Laser Diode, TO-9, 1565 nm, 1.8 W	UNIVERSAL	TO-9	CW or Pulsed	1565 nm	1.8 W	In Stock	$237
TO9-152-161Laser Diode, TO-9, 1330 nm, 2.0 W	UNIVERSAL	TO-9	CW or Pulsed	1330 nm	2.0 W	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$237

Features

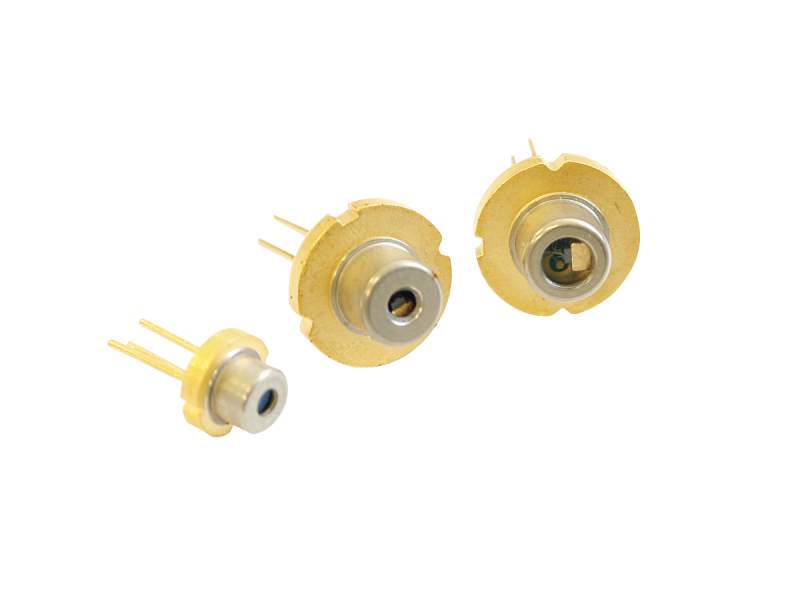

Two TO-Can Packages Available

Our TO-Can Laser Diode components are available in either 5.6 mm (TO-56) or 9 mm (TO-9) packages.

Integrate with Newport Laser Diode Controllers

With Newport’s industry renowned laser mounts, laser diode drivers and temperature controllers you can easily build a reliable and low noise laser system with maximum output power and wavelength flexibility. For added convenience Newport offers combination laser diode driver and temperature controllers.

Maximum Flexibility in Equipment

Newport supplies all the necessary equipment to drive the lasers. You can build a complete laser system with our TO-can diode mounts, laser diode control instrumentation, and cabling accessories.

Caution on Electrostatic Discharge (ESD)

Each individual laser diode is tested and characterized, and guaranteed to operate, prior to shipment, by the renowned laser diode manufactures. The bare laser diodes are highly sensitive to ESD and it can happen from mundane activities such as connecting electrical cables. A grounding wrist strap, such as the FK-STRAP , is recommended when handling the laser diode.

Laser Radiation Warning

Radiation emitted by laser devices can be dangerous to the eyes and appropriate precautions must be taken in use. (Ref. BS EN 60825, HD 482 S1 & IEC 825) VISIBLE LASER RADIATION

Warranty

Newport offers a 30 day return-for-credit with the laser diodes returned in the original sealed bag.

Accessories

TO-Can Mounts

Description	Compatibility	Avail.	Price
LDM-4405Laser Diode Mount, 3 & 4-pin TO-Can, Temp Controlled	UNIVERSAL	In Stock	$735
LDM-4990Laser Diode Mount, 3 & 4-pin TO-Can, Temp Controlled	UNIVERSAL	In Stock	$1,595
710Laser Diode Mount, 3 & 4-pin TO-Can, Temp Controlled	UNIVERSAL	In Stock	$1,485

Laser Diode Control Instruments

Description	Compatibility	Avail.	Price
LDX-36018-35Laser Diode Driver, High Power CW/QCW, 18A, 35V, GPIB (RoHS and / or CE Pending)	UNIVERSAL	Contact Us	$7,590
LDX-36025-12Laser Diode Driver, High Power CW/QCW, 25A, 12V, GPIB (RoHS and / or CE Pending)	UNIVERSAL	Contact Us	$6,255
LDX-36040-30Laser Diode Driver, High Power CW/QCW, 40A, 30V, GPIB (RoHS and / or CE Pending)	UNIVERSAL	Contact Us	$9,100
