Foldable and Portable Laser Safety Barriers
Foldable and Portable Laser Safety Barriers
Laser safety barriers are designed to reduce hazardous laser exposure. Newport offers the highest quality barriers with versatility to meet your application needs.
- Freestanding panels with wheels
- Easy to fold and store
- Rated to withstand 2500 W/cm2 for 100 sec See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | PLSP-02Portable Laser Safety Barrier, 2 Panels | |||||

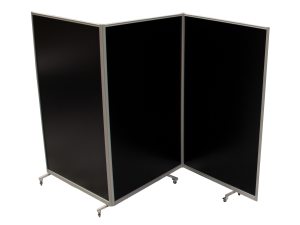

 | PLSP-03Portable Laser Safety Barrier, 3 Panels | 4 Weeks | ||||

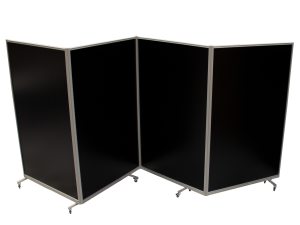

 | PLSP-04Portable Laser Safety Barrier, 4 Panels | |||||

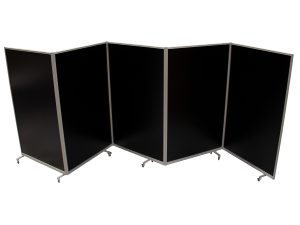

 | PLSP-05Portable Laser Safety Barrier, 5 Panels | 1 Week | ||||

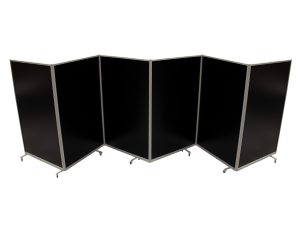

 | PLSP-06Portable Laser Safety Barrier, 6 Panels |
Specifications
- MaterialTwo layers of aluminum bonded with corrugated polyallomer core
- Height83 in.
- Width49.5 in. each panel
- Thickness0.232 in.
- Maximum Irradiance1,000 W/cm2 @ 315-1050 nm
2,500 W/cm2 @ >1050-1400 nm
10,000 W/cm2 @ 10600 nm
(Tested for 100 sec at a 1 mm beam diameter)
Features
Versatile Laser Safety Barriers
The foldable laser safety panel systems are ideal for applications that require mobile and flexible convergence. The unique 360° hinges ensure that the panels are light tight in any position according to your needs.
Hinges block the light in any position

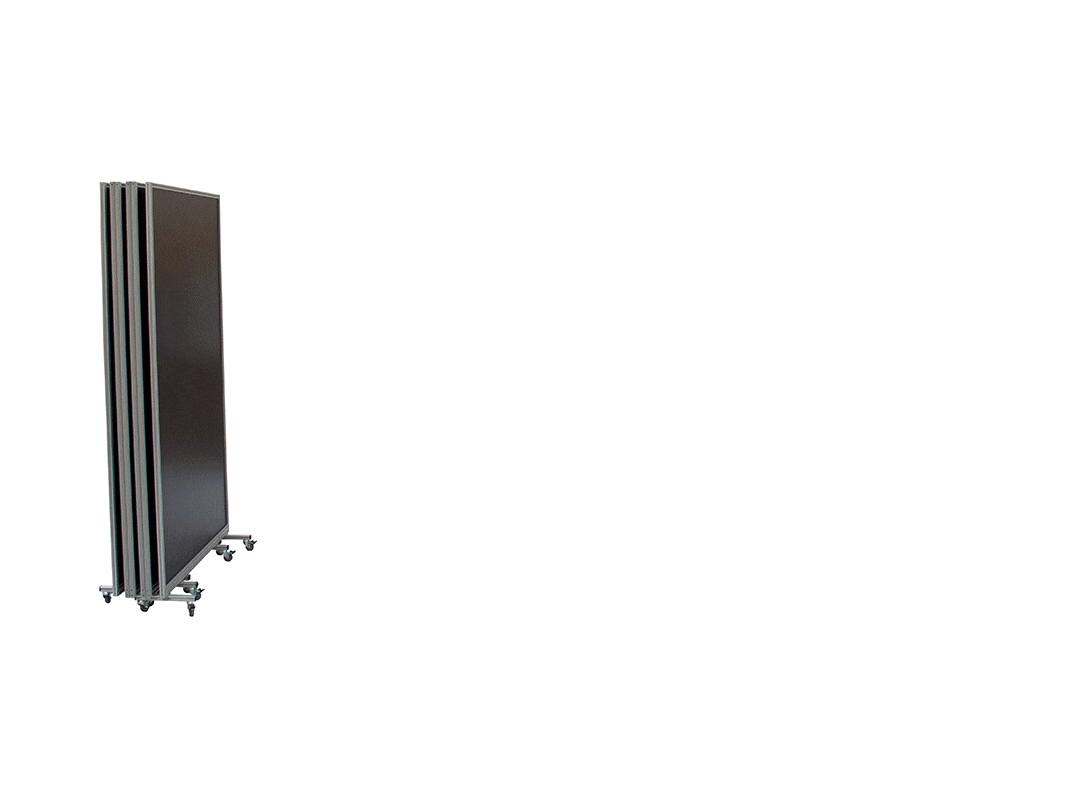

Fold And Move With Ease
The laser safety barriers are foldable for ease of use and storage. They are fully assembled with wheels to move to different locations with ease.
Resources
Literature
Other
EU27 Dec of Conf MKS-GPC-TM-20062 PLSP.pdf(126.5 kB, PDF) UK Dec of Conf MKS-GPC-TM-20063 PLSP.pdf(125.4 kB, PDF)
