| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

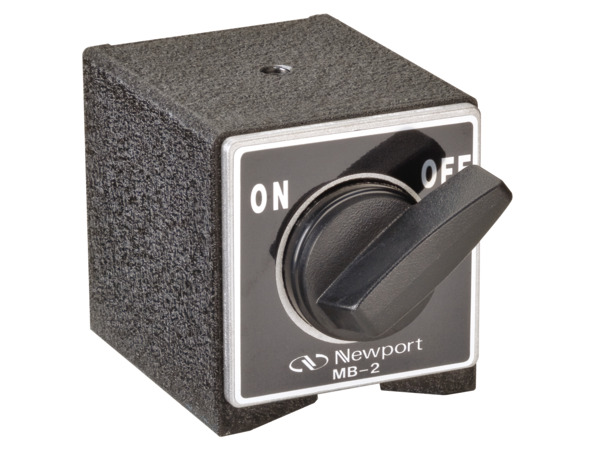

MB-2 Standard Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread |
In Stock
|
$74 |
|
|||
|
M-MB-2 Standard Magnetic Base, 90 lb. Holding Force, M6 Thread |
In Stock
|
$74 |
|
|||
|
MB-3 Compact Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread |
|
$112 |
|
|||
|
M-MB-3 Compact Magnetic Base, 90 lb. Holding Force, M6 Thread |
In Stock
|
$112 |
|
|||
|
110 Kinematic Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread |
|
$263 |
|
|||
|
M-110 Kinematic Magnetic Base, 90 lb. Holding Force, M6 Threads |
In Stock
|
$263 |
|
The Model MB-3 Magnetic Base features an aluminum mounting plate, which provides two significant advantages compared to other economy bases: a generous array of tapped mounting holes, plus decoupling from the base’s magnetic field.

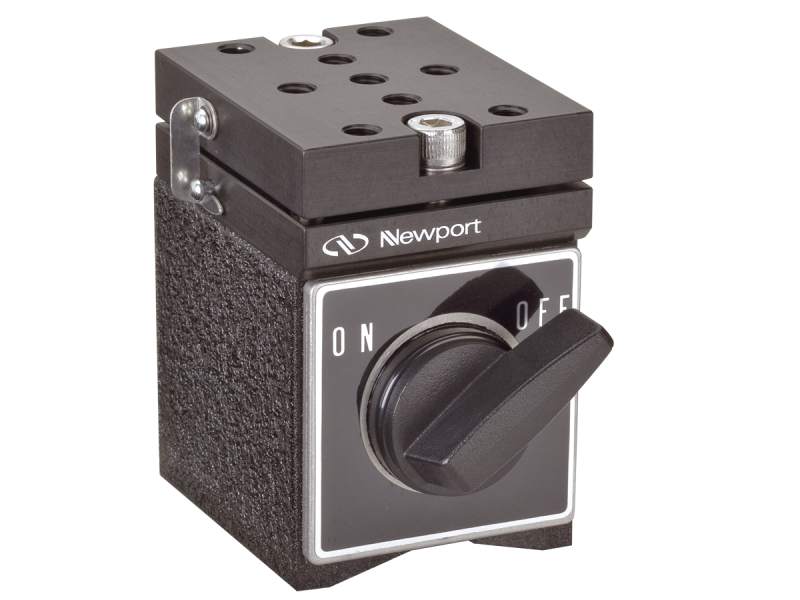

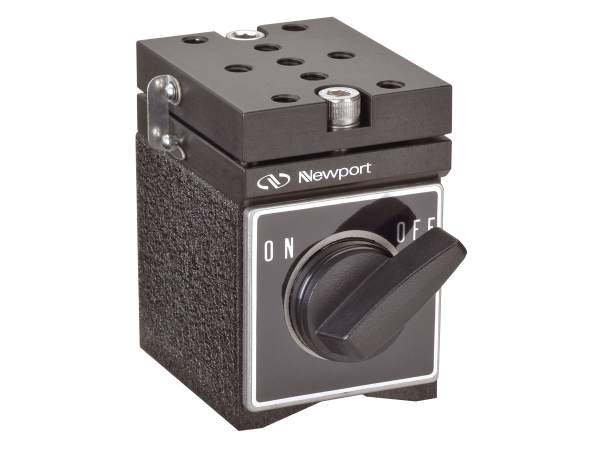

Newport’s unique Model 110 Kinematic Magnetic Base is a space-efficient base that adds an inset kinematic interface to a generous array of tapped mounting holes. Components may be attached directly to the base, or to the unique kinematic top plate that lets you remove components and replace them with repeatable precision. The top plates are equipped with spring-steel clamping hooks that hold the two plates together. Alternatively, two bolts may be used to clamp the plates together, ensuring secure clampdown of cantilevered or rod-mounted loads. Model 110 may also be attached to tables on its side.
