Modular Construction Bases
Modular Construction Bases

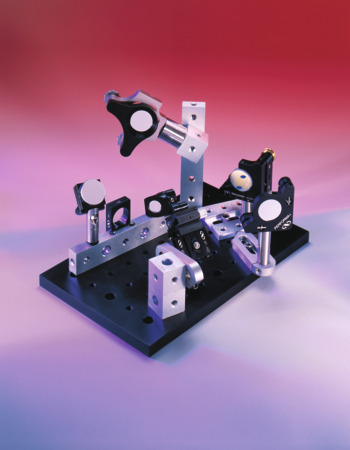

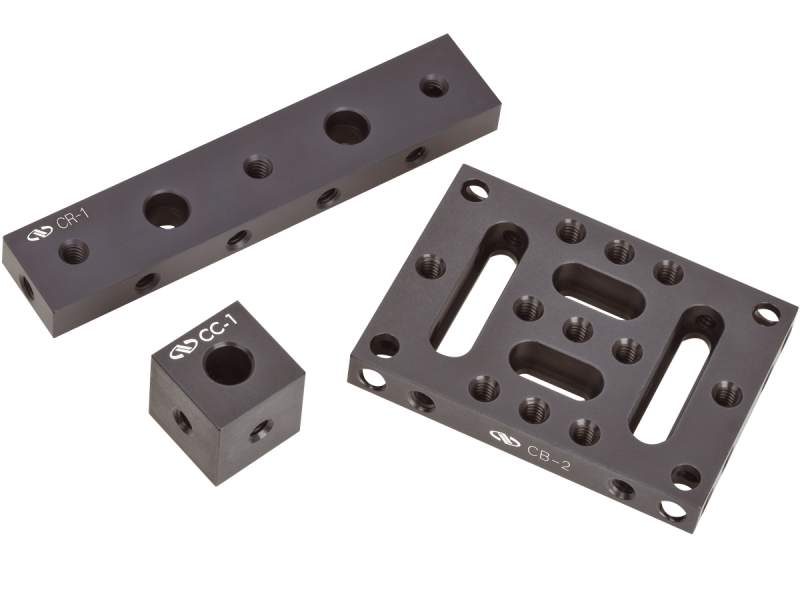

Modular construction bases consists of a few simple aluminum building blocks with lots of versatility. With just a cube, a rail, and a base, applications are limited only by your imagination.
- Construct rigid optical assemblies quickly and easily
- 1/4-20 (M6) mounting holes on all sides
- An ideal laboratory product See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CB-2Construction Plates, 2.5 x 3.5 in., 2 pieces, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| CB-2-MConstruction Plates, 63.5 x 88.9 mm, 2 pieces, M6 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CC-1Construction Cube, 1 x 1 in., 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CC-1-MConstruction Cube, 25.4 x 25.4 mm, M6 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CR-1Construction Rail, 1 x 5 in., 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CR-1-MConstruction Rail, 25.4 x 127 mm, M6 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features
Position Optical Mounts Wherever Needed
Position optical mounts where you need them using modular construction elements to build optical assemblies.

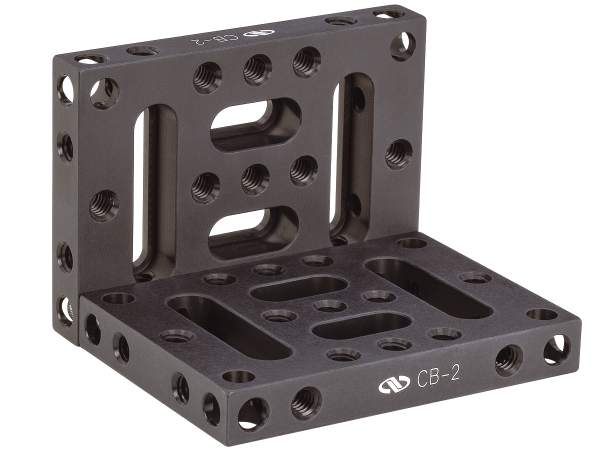

Construction Base
The construction base has a two-piece design that allows it to be used as a bracket or a base. The base has plenty of tapped holes on all the surfaces as well as clearance holes and slots for 1/4-20 (M6) screws. Combine it with the construction cubes and rails to construct rigid optical assemblies quickly and easily.

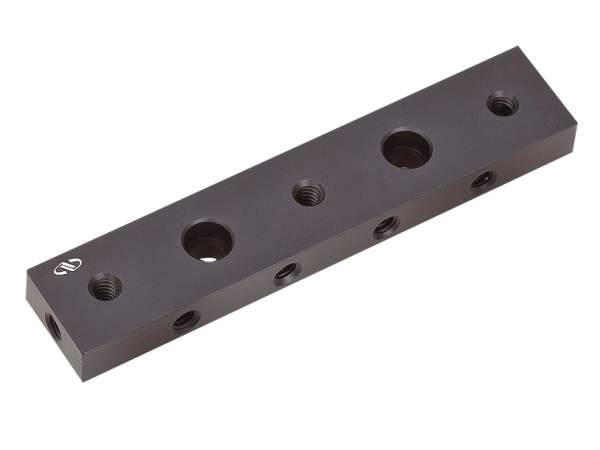

Construction Rail
The construction rail has tapped holes on all surfaces as well as counterbored clearance holes for 1/4-20 (M6) screws. The rail can be attached to a breadboard, a cube, another component, or another rail for modular versatility.

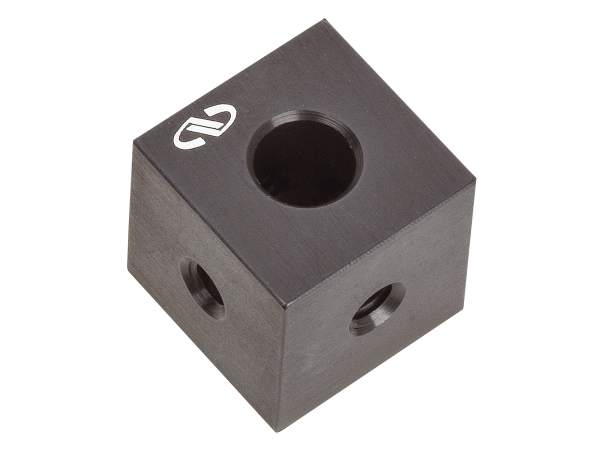

Construction Cube
The construction cube has two tapped holes and a counterbored clearance hole for 1/4-20 (M6) screws. This basic building block can be bolted to a breadboard, a rail, another component, or another cube to construct unique assemblies.
