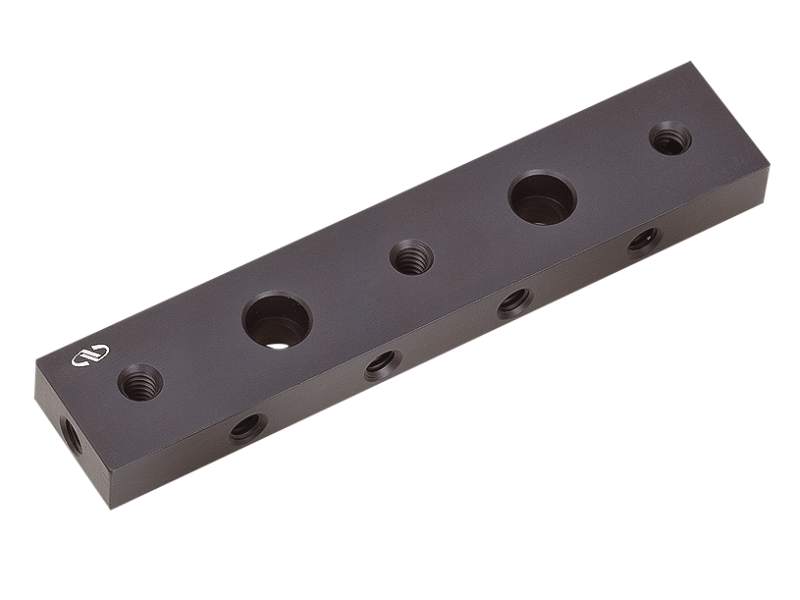

Construction Rail, 1 x 5 in., 1/4-20
The CR-1 Construction Rail has tapped holes on all surfaces as well as counterbored clearance holes for 1/4-20 (M6) screws. The rail can be attached to a breadboard, a cube, another component, or another rail for modular versatility.
Resources & Downloads
2D Product Drawings
CR-1 DWG-S(127.1 kB, PDF)
Other
CR-1 RoHS Certificate(277.9 kB, PDF) CR-1_RoHS2021.pdf(680.9 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

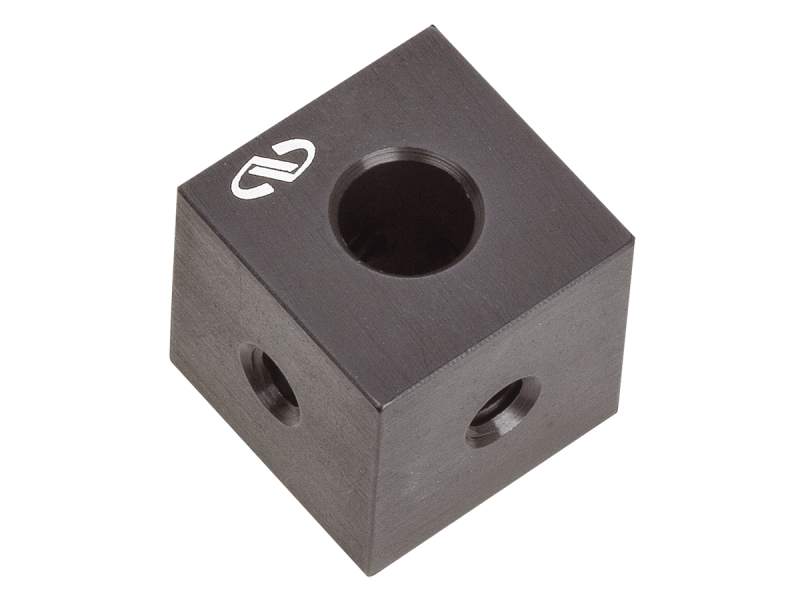

 | CC-1Construction Cube, 1 x 1 in., 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

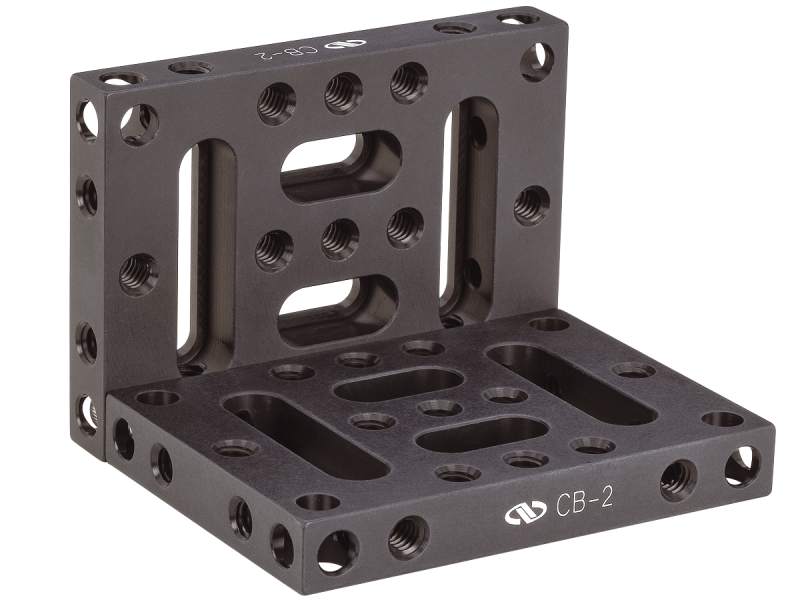

 | CB-2Construction Plates, 2.5 x 3.5 in., 2 pieces, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
