Optical Post Carrier, ezTrac, 0.75 in. Width

19 mm Surface Mount Optical Rails & Carriers

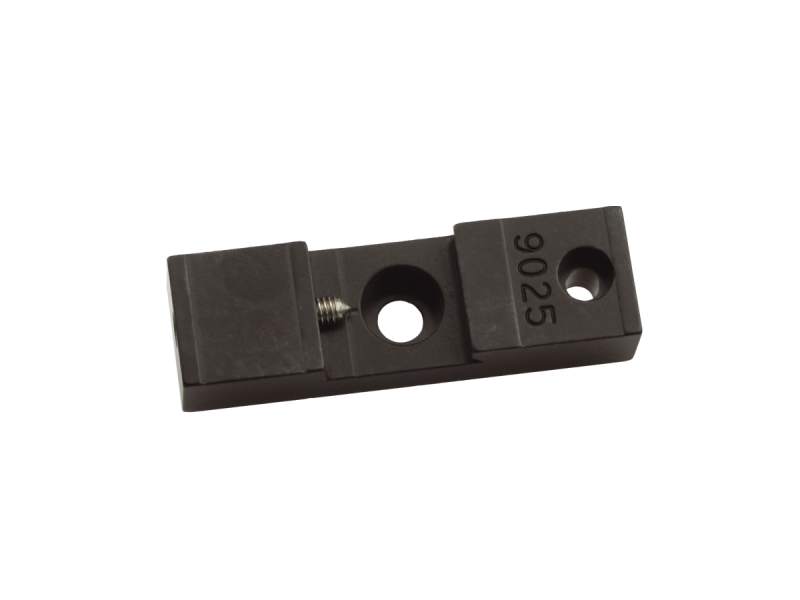

The 9025NF e⋅z⋅Trac™ Post Carrier is ideal for mounting elements such as lenses to your translation system. This 0.75 inch wide carrier mounts on our e⋅z⋅Trac™ Rail and has two through holes for mounting your posts or pedestals.

Specifications

Technical Specs

Type
Post Carrier
Thread Type
8-32 and 1/4-20 Thru
Height
12.7 mm
Length
19.05 mm

Width
63.5 mm

Type
Post Carrier
Thread Type
8-32 and 1/4-20 Thru
Height
12.7 mm
Length
19.05 mm

Width
63.5 mm

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9025b-Drawing(82.5 kB, PDF)
