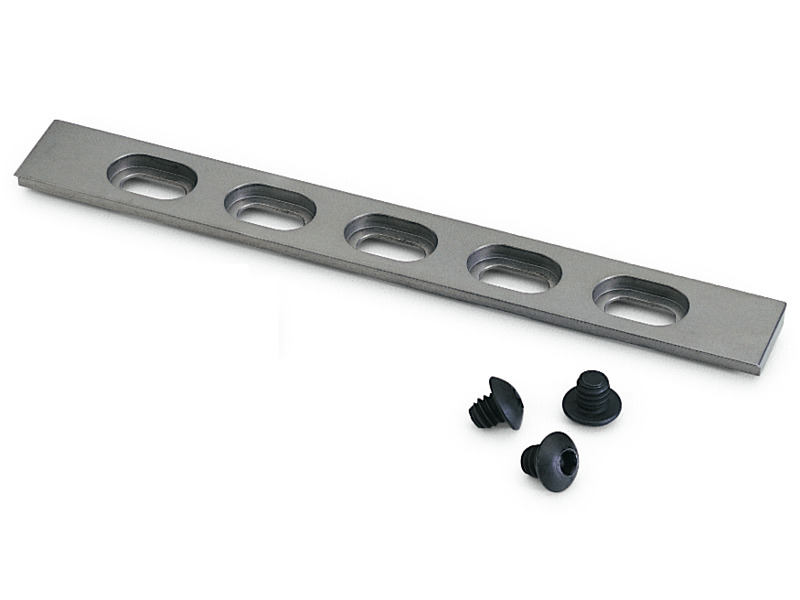

ezTrac Optical Rail, 6.0 in. Length
The 9023NF e⋅z⋅Trac Rail mounts directly to our stages or other accessories and lets you quickly configure and reconfigure your stage setup. The rail's precision alignment holes guarantee orthogonality when you reconfigure the stages, and the dovetail design ensures that the stages won't suffer from stability problems. The 9022 has a 6.0 inch length and is metric compatible.
Resources & Downloads
2D Product Drawings
9023b-Drawing(80 kB, PDF)
