Baseplate, 9064 Series Stages, 8-32 & 1/4-20

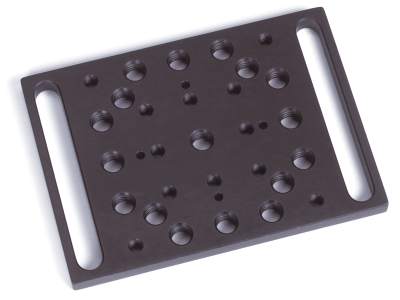

The 9021NF Translation Stage Baseplate is used with our translation stages to create a stage with conventional mounting slots. A variety of mounting holes allows you to mount the eā
zā
Tracā¢ Rail to the stage in either the X or Y direction, or even at 45Ā°. 1/4-20 thru slots.
Resources & Downloads
2D Product Drawings
9021b-Drawing(105.7 kB, PDF)
Other
MKS EU ROHS3 - 9021.pdf(223.4 kB, PDF)
