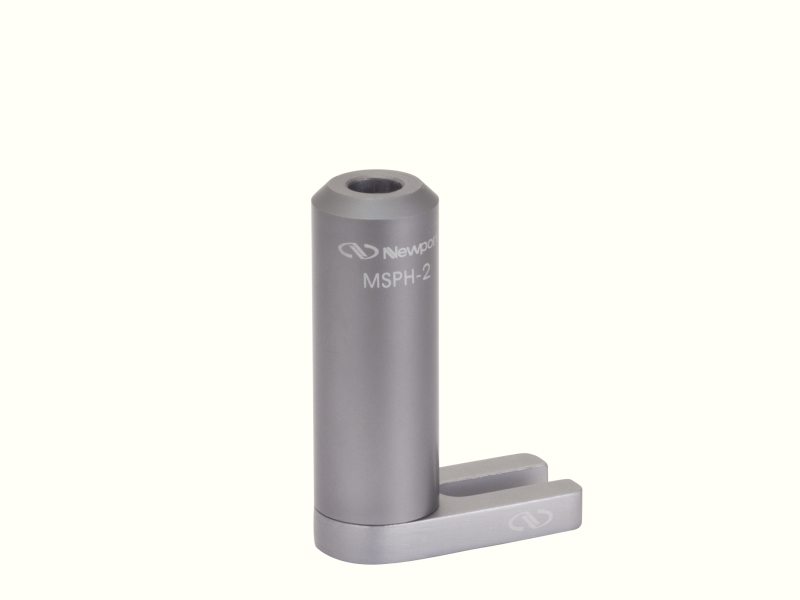

Optical Post Holder, 2.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
Optical Post Holder, 2.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
Model: MSPH-2
Product Series Overview

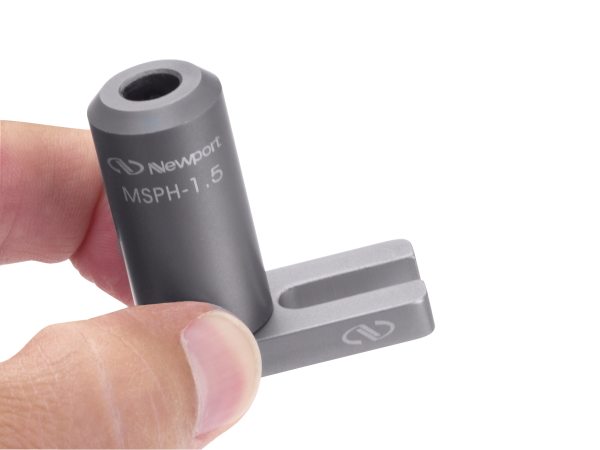

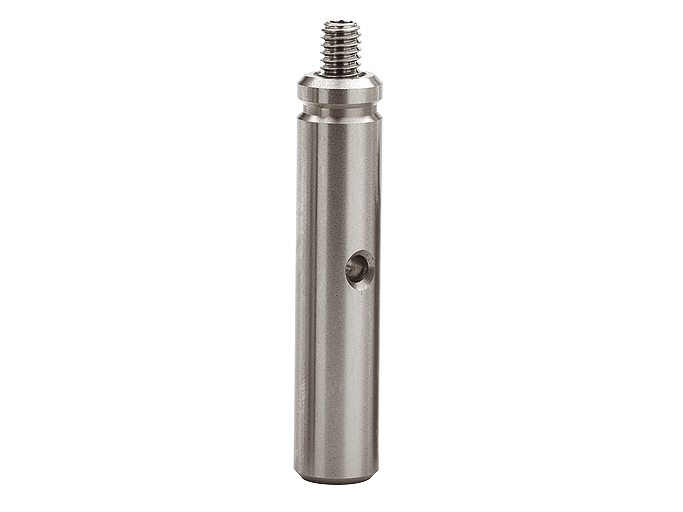

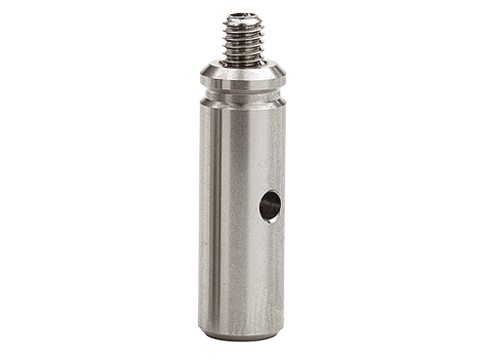

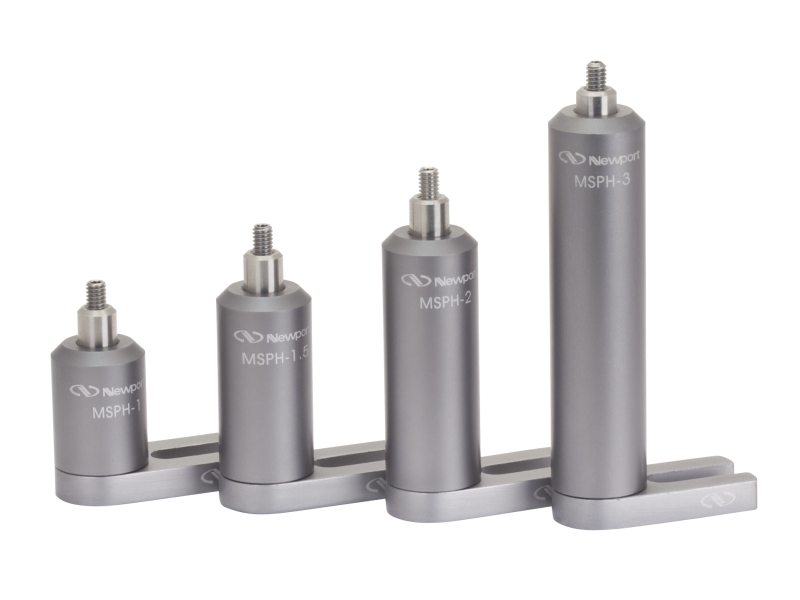

Miniature Slotted Base Optical Post HoldersThe MSPH-2 is a low-cost, slotted-base post holder for miniature 5/16 in. diameter MSP-Series posts. The 1/4-20 (M6) slotted base allows this post holder to be used on standard optical tables right along side standard-sized post holders and pedestals. The MSPH post holders facilitate the creation of more compact setups through the use of smaller sized optical mounts.
Resources & Downloads
2D Product Drawings
MSPH(158.5 kB, PDF)
Other
MSPH-2 RoHS Certificate(279.9 kB, PDF) MSPH-2_RoHS2021.pdf(688.9 kB, PDF)
