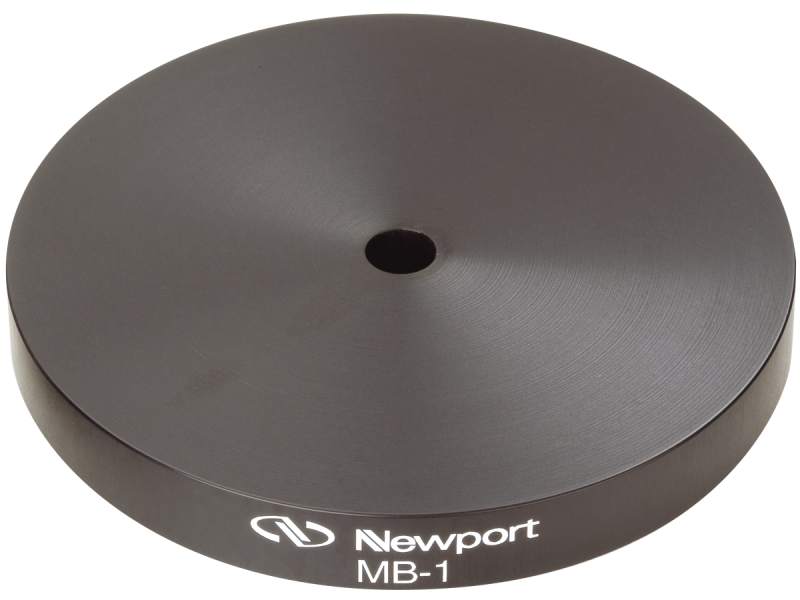

Utility Magnetic Disk Base

This magnetic disk base is ideal for quickly positioning small components mounted via a single 1/4-20 or M6 threaded bolt, such as VPH Series Post Holders.

Ideal for quick setups
Position post holders
1/4-20 (M6) counterbored hole

See All Features

Show Filters:

Showing 1 of 1 total products

Compatibility:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Type	Base size	Thread Type	Holding Force	Avail.	Price
		MB-1Magnetic Base Plate, Utility, 4 lb. Holding Force, 1/4-20 (M6) CLR.	UNIVERSAL		Magnetic Base	Ø3.0 in.	1/4-20 (M6) CLR	18 N	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$70

Features

Universal Component Mounting

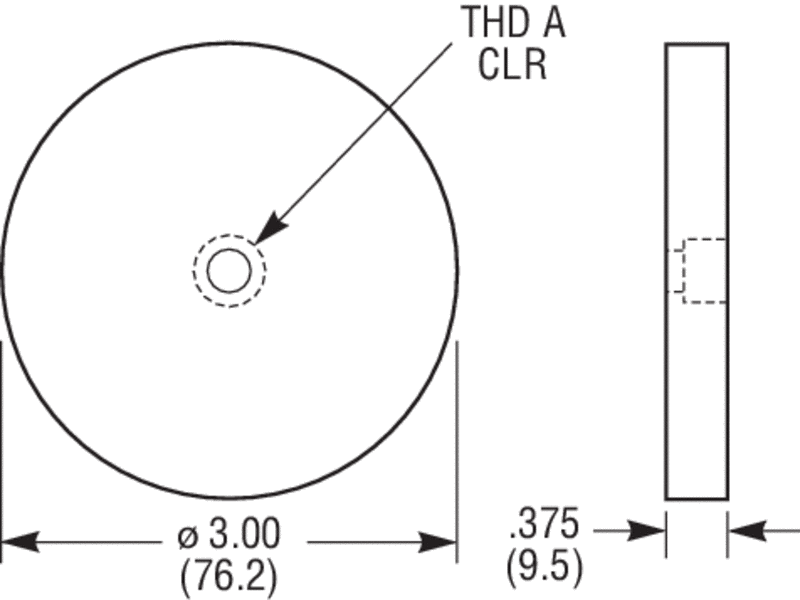

The MB-1 magnetic disk base features a counterbored hole for mounting imperial components with 1/4-20 cap screws or metric components with M6 cap screws.

Fast and Flexible Ferromagnetic Surface Mounting

Magnetic bases reduce experimental set-up time by allowing free positioning and instant clampdown of optical components. They are the ideal accessories for all laboratories with ferromagnetic work surfaces such as Newport optical tables and breadboards.
