Magnetic Base Plate, Utility, 4 lb. Holding Force, 1/4-20 (M6) CLR.

Utility Magnetic Disk Base

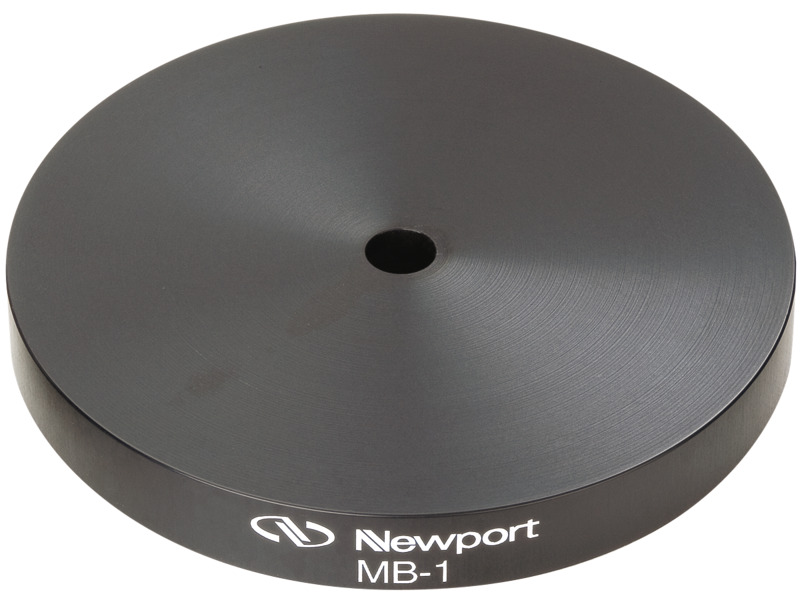

The MB-1 Utility Magnetic Base Plate quickly positions small components mounted via a single 1/4-20 (M6) screw, such as VPH Series Post Holders.

Specifications

Technical Specs

Type
Magnetic Base
Height
0.375 in.
Base size
Ø3.0 in.
Thread Type
1/4-20 (M6) CLR

Holding Force
18 N

Type
Magnetic Base
Height
0.375 in.
Base size
Ø3.0 in.
Thread Type
1/4-20 (M6) CLR

Holding Force
18 N

Resources & Downloads

2D Product Drawings

MB-1-S(65.1 kB, PDF)

Other

MB-1 RoHS Certificate(282.5 kB, PDF)
