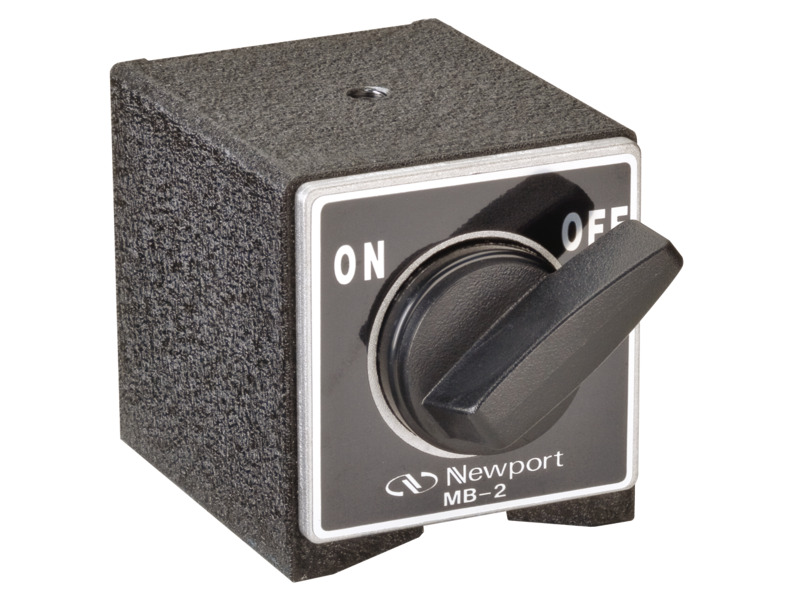

Standard Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread
Standard Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread
Model: MB-2
Product Series Overview
Hand Switch Magnetic BasesThe MB-2 Standard Magnetic Base provides a single 1/4-20 tapped hole ideal for mounting VPH or VPT Series Post Holders.
Resources & Downloads
2D Product Drawings
MB-2-S(81.9 kB, PDF)
Other
MB-2 RoHS Certificate(278.5 kB, PDF)
