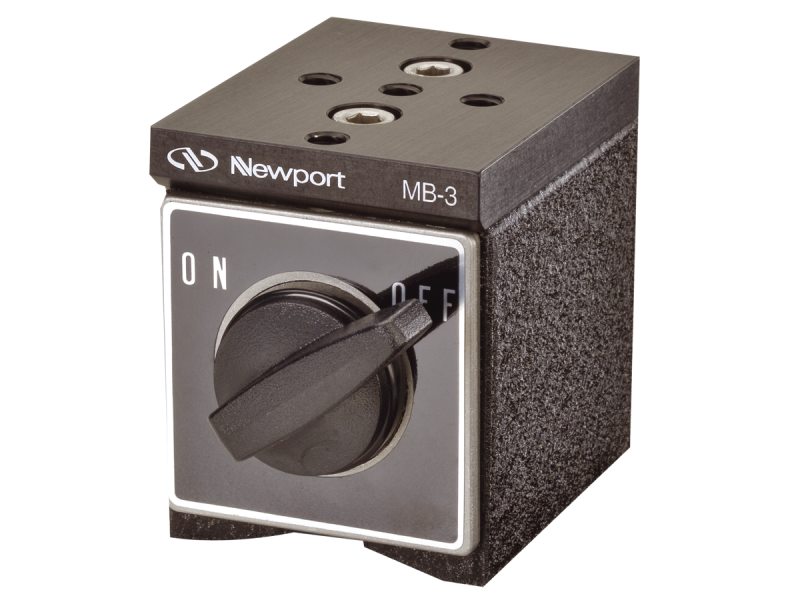

Compact Magnetic Base, 90 lb. Holding Force, M6 Thread
Compact Magnetic Base, 90 lb. Holding Force, M6 Thread
Model: M-MB-3
Product Series Overview
Hand Switch Magnetic BasesThe M-MB-3 Compact Metric Magnetic Base features an aluminum mounting plate, which provides two significant advantages compared to other economy bases: a generous array of M6 tapped mounting holes, plus decoupling from the base’s magnetic field.
Resources & Downloads
2D Product Drawings
MB-3-S(80.8 kB, PDF)
Other
M-MB-3 RoHS Certificate(279.4 kB, PDF)
