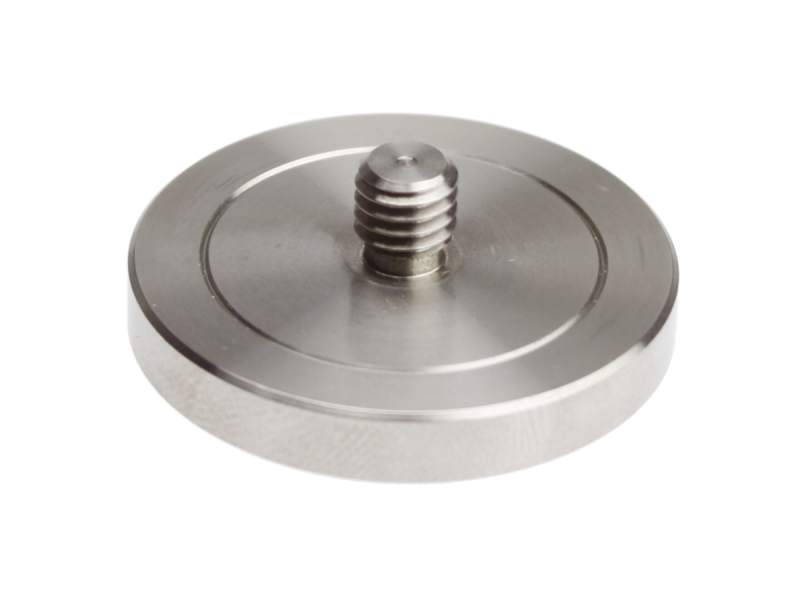

Pedestal Base Adaptor, Magnetic, 4.8 mm Height, 31.8 mm Diameter, M6

The M-PS-AZ Magnetic Pedestal Base Adaptor is used for attaching to the bottom of a standard VPH post Holder and the PS-1Z which is the magnetic equivalent of the PS-1 pedestal post. It provides a strong 5 lb. magnetic hold, allowing experimenters to securely position and align their optical mounts prior to clamping them down. Not only does this reduce the potential for damaging optical components, it also greatly increased the speed and efficiency with which an experiment can be set up. With the PS-Series Magnetic Pedestal Bases, post-mounted optic holders can be quickly positioned to the approximate location on an optical table and securely aligned prior to clamping them down. These magnetic bases are for attaching to the bottom of a standard VPH post Holder.

Specifications

Technical Specs

Type
Magnetic Pedestal Base Adapter
Height
4.8 mm
Thread Type
M6
Material
Stainless Steel

Pack Quantity
1

Type
Magnetic Pedestal Base Adapter
Height
4.8 mm
Thread Type
M6
Material
Stainless Steel

Pack Quantity
1

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

PS-A-S(156.6 kB, PDF)

Other

M-PS-AZ RoHS Certificate(278.5 kB, PDF)
M-PS-AZ_RoHS2021.pdf(682 kB, PDF)
