Adjustable Light Shields

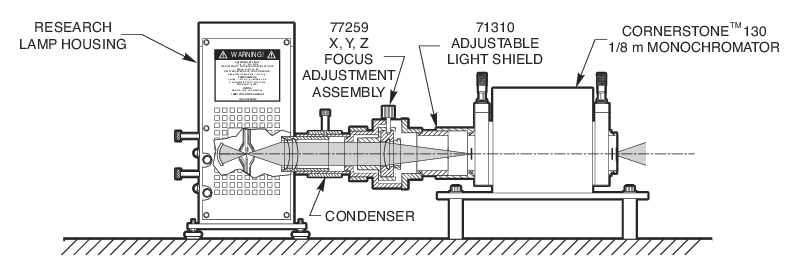

These adjustable light shields are useful for coupling the output from an Oriel^® Light Source to a Monochromator or Spectrograph. Their black anodized aluminum body allows them to be used with light sources up to 1000 W in input power.

Useful for coupling the output from light source to monochromator or spectrograph
1.5 inch, 2 inch, and 3 inch flange sizes available for easy coupling to Oriel products
Adjustable length
Can be used with light sources up to 1000 W

See All Features

Show Filters:

Showing 8 of 8 total products

Compatibility:

Description	Compatibility	Flange Series Size	Length	Avail.	Price
71310Adjustable Light Shield, 1.5 to 2.1 in., 1.5 Inch Flange	UNIVERSAL	1.5 Inch	38 to 54 mm	4 Weeks	$180
71311Adjustable Light Shield, 2.1 to 3.2 in., 1.5 Inch Flange	UNIVERSAL	1.5 Inch	54 to 81 mm	In Stock	$190
71312Adjustable Light Shield, 3.2 to 4.25 in., 1.5 Inch Flange	UNIVERSAL	1.5 Inch	81 to 108 mm	4 Weeks	$180
71314Adjustable Light Shield, 2.1 to 3.2 in., 2 Inch Flange	UNIVERSAL	2 Inch	54 to 81 mm	Contact Us	$380
71315Adjustable Light Shield, 3.2 to 4.25 in., 2 Inch Flange	UNIVERSAL	2 Inch	81 to 108 mm	4 Weeks	$380
71316Adjustable Light Shield, 1.5 to 2.1 in., 3 Inch Flange	UNIVERSAL	3 Inch	38 to 54 mm	In Stock	$480
71317Adjustable Light Shield, 2.1 to 3.2 in., 3 Inch Flange	UNIVERSAL	3 Inch	54 to 81 mm	Contact Us	$905
71318Adjustable Light Shield, 3.2 to 4.25 in., 3 Inch Flange	UNIVERSAL	3 Inch	81 to 108 mm	Contact Us	$1,005

Features

1.5 Inch, 2 Inch, or 3 Inch Flange Sizes

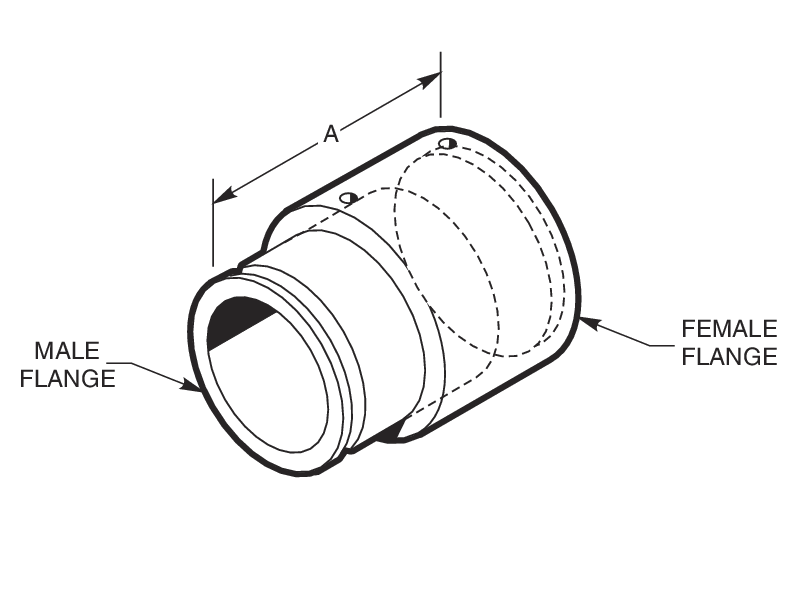

When selecting a light shield, the flange size and range of extension should be considered. Each light shield has a male flange on one end and a female flange on the other for simplified coupling. In cases in which components of two different flange sizes or two same gender flanges must be coupled, we offer a complete line of Flange Couplers and Adapters.

High Power Applications

Their black anodized aluminum body construction makes them suitable for use with light sources up to 1000 W in input power.

Accessories

Flange Couplers and Adapters

Description	Compatibility	Avail.	Price
66290Flange Step Down Adapter, 3 Inch Male to 1.5 Inch Female	UNIVERSAL	In Stock	$500
66292Flange Step Down Adapter, 2 Inch Male to 1.5 Inch Female	UNIVERSAL	In Stock	$160
77791Coupling Ring, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	In Stock	$300
77792Coupling Ring, Quick Connect, 1.5 Inch Series, Double Male	UNIVERSAL	Contact Us	$95
77829Coupling Ring, Light Source, 1.5 Inch, Double Female, Set Screw	UNIVERSAL	In Stock	$95
77790Flange Converter, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	Contact Us	$560
LT20-UADPTAdapter, Oriel^® 1.5-Inch Series Flange to Newport 2-Inch LT Series	UNIVERSAL	In Stock	$365
LT10-UADPTAdapter, Oriel^® 1.5-Inch Series Flange to Newport 1-Inch LT Series	UNIVERSAL	In Stock	$105
