Coupling Ring, Light Source, 1.5 Inch, Double Female, Set Screw

Flange Couplers & Adapters

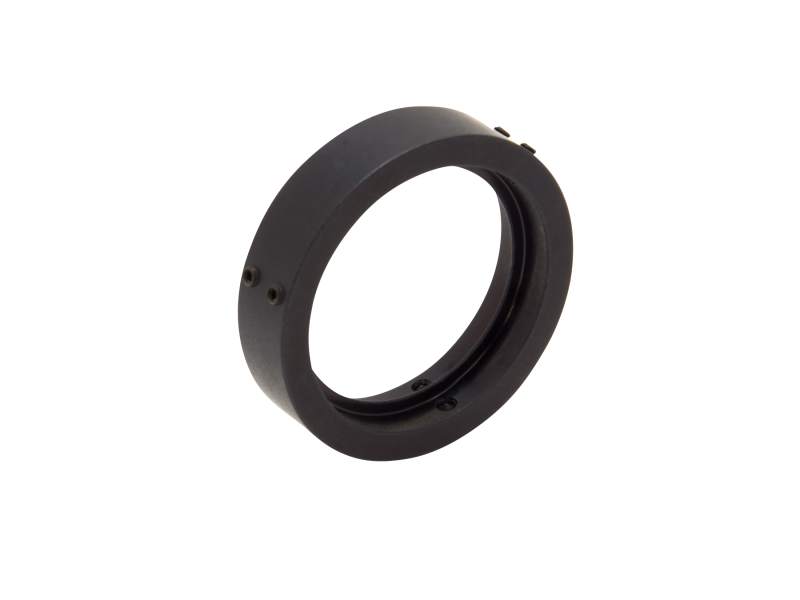

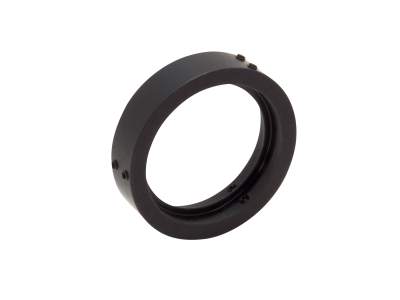

The 77829 Light Source Coupling Ring has 1.5 Inch Series female connections on both ends. This set screw type uses three set screws to hold both flanged components together. The set screws are 6-32 cone point type. They use a 1/16 inch hex wrench.

Specifications

Technical Specs

Type
Double Female Adaptor
Flange Series Size
1.5 Inch
Flange Type
Set Screw

Type
Double Female Adaptor
Flange Series Size
1.5 Inch
Flange Type
Set Screw

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

BPT-pg4-107a(506.1 kB, PDF)
LS-220Aa(688 kB, PDF)
