Port Flange Adapter, 1.0 in. Port, Oriel Male 1.5 inch Flange, Lens Tube, 819C/D

Lens Tube Adapters for Integrating Spheres

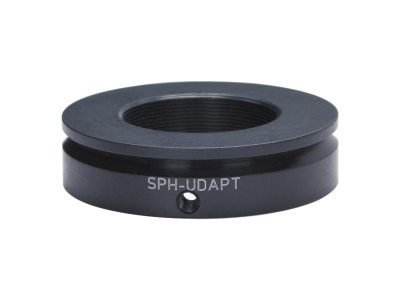

The SPH-UDAPT Adapter allows the 1 inch port of the 819C/D series integrating spheres to be connected to Oriel's standard 1.5 inch female flange and the 1 inch Lens Tube components. The outside of the adapter is Oriel's male flange adapter, while the inside is also threaded with the standard 1.035-40 thread, to be compatible with the Lens Tube mounting systems. The set screw size is 6-32 X 3/16 inch.

Specifications

Technical Specs

Type
Port Flange Adapter
Thread Type
1.035-40
Detector Type
819C & 819D Series
Port Size
1.0 in.

Flange Type
1.5 inch Series - Male
Material
Black anodized aluminum

Type
Port Flange Adapter
Thread Type
1.035-40
Detector Type
819C & 819D Series
Port Size
1.0 in.

Flange Type
1.5 inch Series - Male
Material
Black anodized aluminum

Resources & Downloads

3D Product Models

Download CAD Files

Other

SPH-UDAPT RoHS Certificate(279.2 kB, PDF)

2D Product Drawings

SPH-UDAPT.pdf(335.1 kB, PDF)

Literature

DS-111501 Intergrating Sphere Acces-2.pdf(1.2 MB, PDF)
