Adjustable Light Shield, 2.1 to 3.2 in., 1.5 Inch Flange

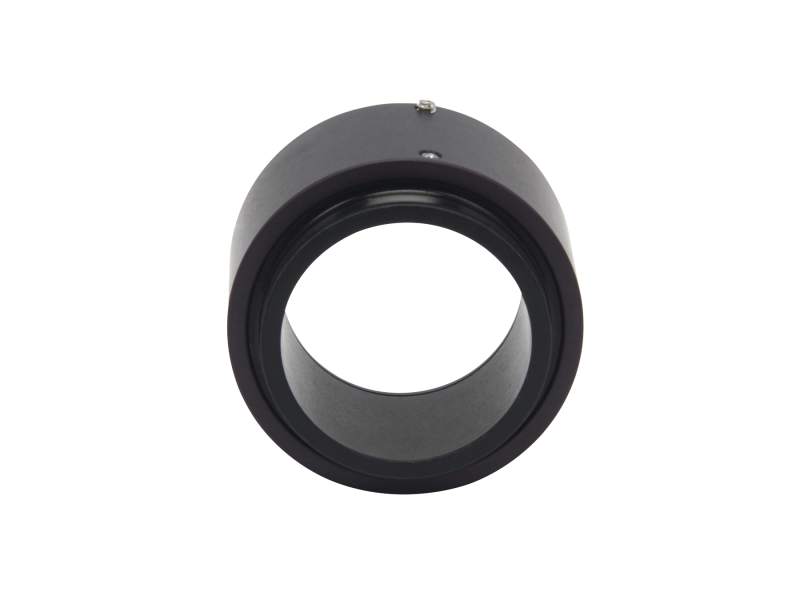

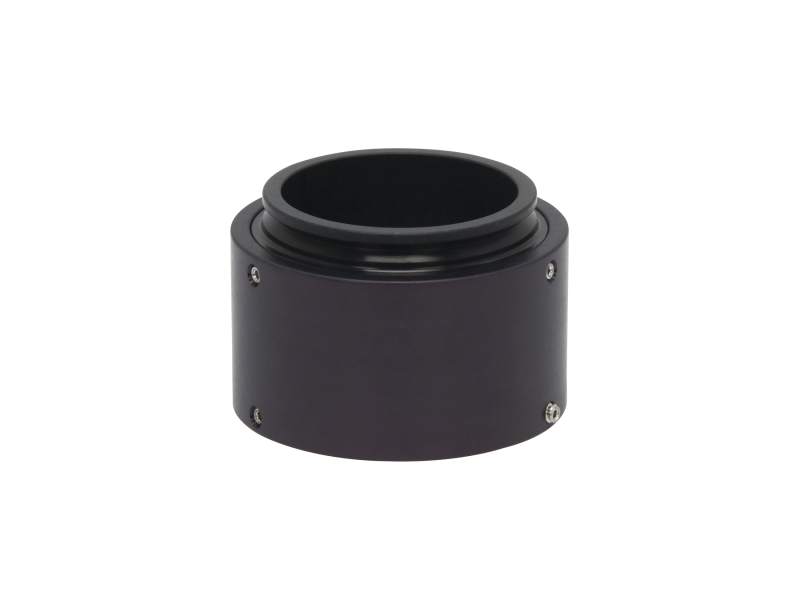

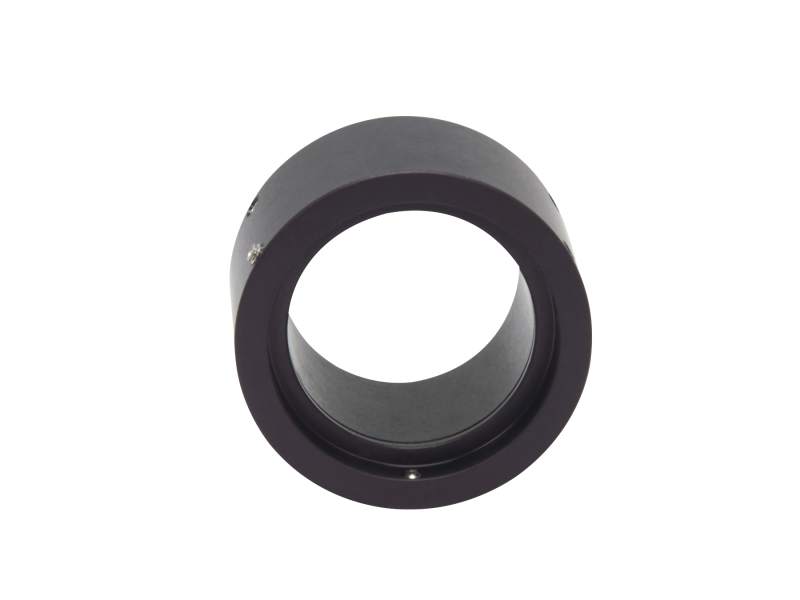

The 71311 Adjustable Light Shield is used to enclose the beam from a light source to a monochromator or spectrograph. This light shield has a 1.5 Inch Series male flange at one end and a 1.5 Inch Series female flange at the other end. It has a 2.1 to 3.2 (54 to 81 mm) range of extension. These "fixed adjustable" shields are made from black anodized aluminum, to withstand the output from our 1 kW sources.

Specifications

Technical Specs

Type
Adjustable Light Shield
Flange Series Size
1.5 Inch
Length
54 to 81 mm

Type
Adjustable Light Shield
Flange Series Size
1.5 Inch
Length
54 to 81 mm

Resources & Downloads

2D Product Drawings

LS-220c(473.6 kB, PDF)
