Compare Model Drawings, CAD & Specs Availability Price
7129
Flanged Spacer Tube, 1.5 Inch Series, 50mm Length, Set Screw
$175
In Stock
 7129 Flanged Spacer Tube, 1.5 Inch Series, 50mm Length, Set Screw
In Stock
 $175

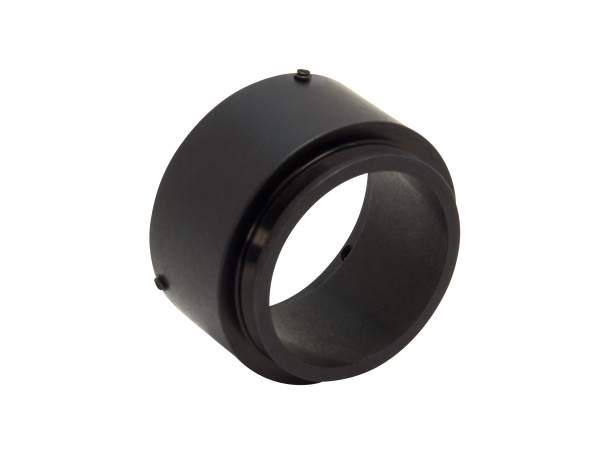

7130
Flanged Spacer Tube, 1.5 Inch Series, 25mm Length, Set Screw
$180
In Stock
 7130 Flanged Spacer Tube, 1.5 Inch Series, 25mm Length, Set Screw
In Stock
 $180

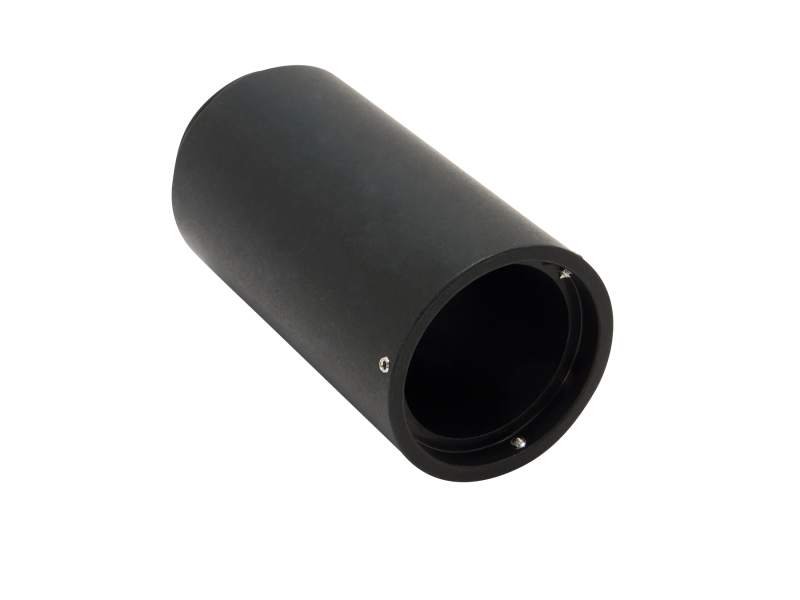

7132
Flanged Spacer Tube, 1.5 Inch Series, 100mm Length, Set Screw
$205
In Stock
 7132 Flanged Spacer Tube, 1.5 Inch Series, 100mm Length, Set Screw
In Stock
 $205

Features

Set Screw and Quick Connect Type Spacer Tubes Available

Spacer Tubes vary in length and set screw or quick connect configuration. A quick connect configuration is more convenient for frequent removal or installation of the spacer tube, and is a more light tight mechanism than the set screw configuration. A set screw configuration is a more economical choice of spacer tube. These spacer tubes are compatible with the Oriel 1.5 inch flange system and have a male and female flange for easy coupling. In cases in which different sized flanges or flanges of the same gender must be coupled, Oriel offers a complete line of Flange Couplers and Adapters.
