Flange Converter, Quick Connect, 1.5 Inch Series, Double Female

Flange Couplers & Adapters

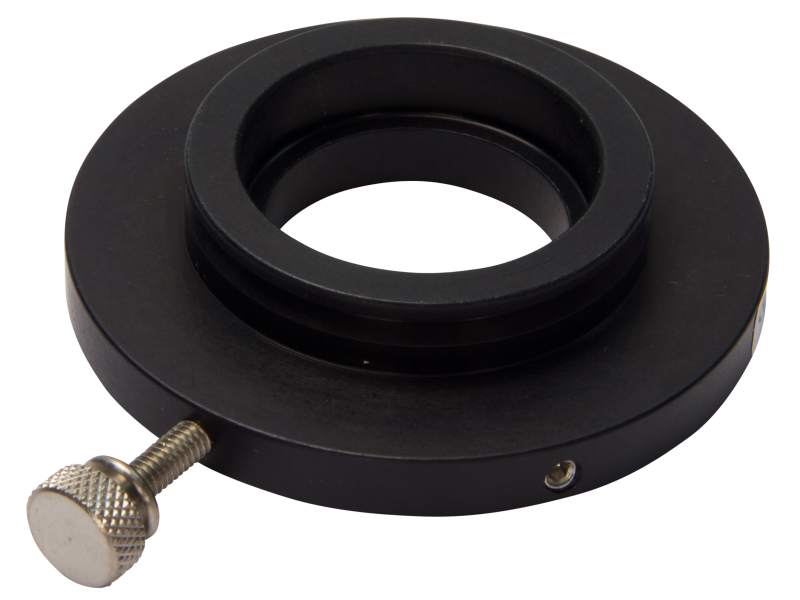

The 77790 Flange Converter converts a 1.5 Inch Series set screw type female flange, into a Quick Connect female flange. Use it on any female flanged component that requires frequent interchange of accessories. Please note that the clear aperture is reduced to 1.2 inches (30 mm).

Specifications

Technical Specs

Type
Quick Connect Converter
Flange Series Size
1.5 Inch
Flange Type
Set Screw and Quick Connect

Type
Quick Connect Converter
Flange Series Size
1.5 Inch
Flange Type
Set Screw and Quick Connect

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

LS-220Aa(688 kB, PDF)
