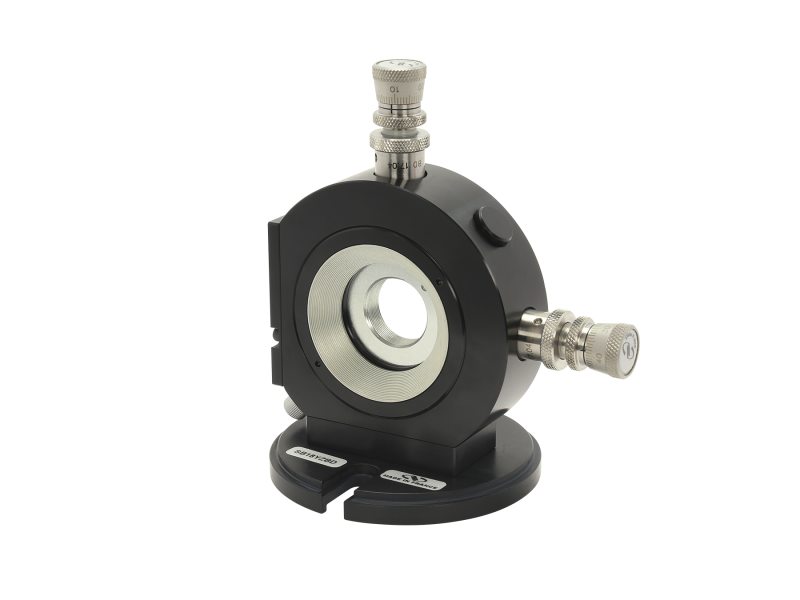

XY Optic Positioner, Precision, BD Differential Micrometers
XY Optic Positioner, Precision, BD Differential Micrometers
Model: SB18YZBD
Product Series Overview
Objective Lens Precision XY PositionersThe SB18YZBD Optic Mount precisely positions any optical element in a plane perpendicular to the optical axis, and is a very popular choice for positioning in spatial filters. The mount accepts any M20.25 RMS-threaded pinhole, microscope objective or lens. XY travel is ±2 mm. Short-focal-length pinhole focusing applications benefit from the 0.1 µm sensitivity of BD Differential Micrometers. Mounted on a CN26 carrier, SB18YZ mounts have a 40 mm axis height for compatibility with the X26 component family. For table mounting, SB18YZ mounts include a base plate similar to those found on our SL Series mounts.
Resources & Downloads
2D Product Drawings
SB18YZSE.RIE-S(100 kB, PDF)
Other
SB18YZBD RoHS Certificate(280.1 kB, PDF)
