Compact Lens Positioner, XY, 1.0 in. Diameter, 100 TPI

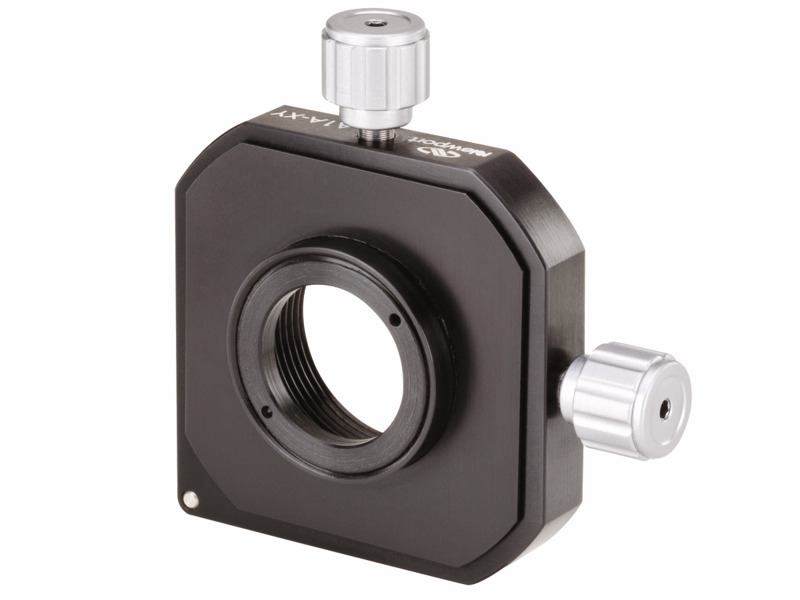

The LA1V-XY Compact Lens Positioner provides an economical solution for applications requiring two (XY) or axes of precision adjustment. Its compact size makes it ideal for OEM applications or research projects with limited table space. Precise positioning is achieved with the integration of 100 TPI drive screws. Additionally, an integral 5/64 (M2) hex hole in the drive knobs allows for optional Allen key adjustment. Each unit is supplied with two non-marring Delrin retaining rings to safely secure optical elements with a maximum outer diameter of 1 inch (25.4 mm). Post mounting on the LA1V-XY is achieved by accessing one of the tapped 8-32 or M4 threaded holes in the mount body.

Replaceable and Lockable Adjusters

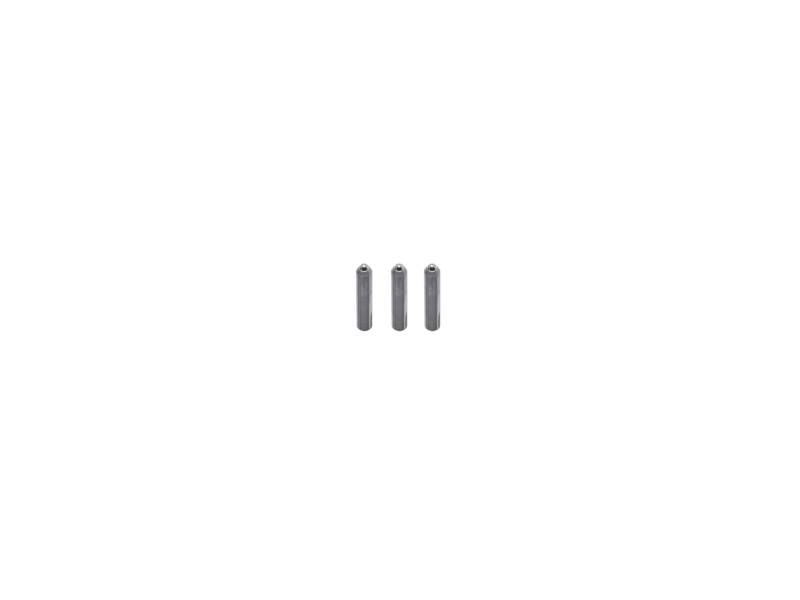

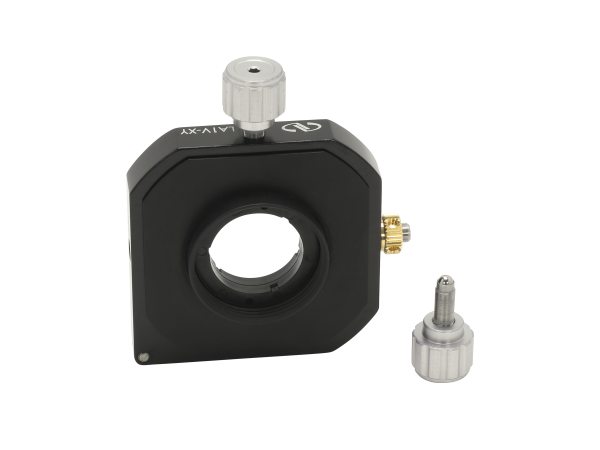

For OEM applications, the knob adjusters can be easily replaced by quickview data-class="quickview-link" data-code="SW-10E1-3" data-type="product">SW-10E1-3 hex socket adjustment screws and lock nuts to save more space and prevent unintended adjustment.

Holds More Than Just 1.0 in. Spherical Lenses

LPV-1 and LA1V-XY Lens Positioners feature 1.063-20 threaded central aperture which can accommodate retaining rings to hold 1.0 in. optical elements and a variety of optics holders for objective lenses and optic of other sizes. For example, 0.5 in. lens and cube beamsplitter can be held with adapter and holder, respectively. With adapter, the lens positioner can connect with a lens tube system to create beam expanders, microscopes, collimators and more.
