Compact Multi-Axis Lens Positioners

Compare	Model	Compatibility	rankScore		Optic Diameter	Adjustments	Edge Thickness (T_e)	Retaining Ring Thread	Availability	Price	Brand
LPXY-05H Lens Positioner, 0.5 in. Diameter, XY, 100 TPI, 8-32 THD $156 2 Weeks	LPXY-05H Lens Positioner, 0.5 in. Diameter, XY, 100 TPI, 8-32 THD	IMPERIAL	1.0	1.0	12.7 mm	XY	7.6 mm	0.535-40	2 Weeks	$156	Newport
M-LPXY-05H Lens Positioner, 0.5 in. Diameter, XY, 100 TPI, M4 THD $156 5 Weeks	M-LPXY-05H Lens Positioner, 0.5 in. Diameter, XY, 100 TPI, M4 THD	METRIC	1.0	2.0	12.7 mm	XY	7.6 mm	0.535-40	5 Weeks	$156	Newport
LPXYZ-05H Lens Positioner, 0.5 in. Diameter, XYZ, 100 TPI, 8-32 THD $201 In Stock	LPXYZ-05H Lens Positioner, 0.5 in. Diameter, XYZ, 100 TPI, 8-32 THD	IMPERIAL	1.0	3.0	12.7 mm	XYZ	12.4 mm	0.535-40	In Stock	$201	Newport
M-LPXYZ-05H Lens Positioner, 0.5 in. Diameter, XYZ, 100 TPI, M4 THD $201 In Stock	M-LPXYZ-05H Lens Positioner, 0.5 in. Diameter, XYZ, 100 TPI, M4 THD	METRIC	1.0	4.0	12.7 mm	XYZ	12.4 mm	0.535-40	In Stock	$201	Newport
LPXYR-05H Lens Positioner, 0.5 in. Diameter, XYθZ, 100 TPI, 8-32 THD $205 In Stock	LPXYR-05H Lens Positioner, 0.5 in. Diameter, XYθZ, 100 TPI, 8-32 THD	IMPERIAL	1.0	5.0	12.7 mm	XY θZ	10.2 mm	0.535-40	In Stock	$205	Newport
M-LPXYR-05H Lens Positioner, 0.5 in. Diameter, XYθZ, 100 TPI, M4 THD $205 In Stock	M-LPXYR-05H Lens Positioner, 0.5 in. Diameter, XYθZ, 100 TPI, M4 THD	METRIC	1.0	6.0	12.7 mm	XY θZ	10.2 mm	0.535-40	In Stock	$205	Newport
LP5X-05H Lens Positioner, 0.5 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR $286 In Stock	LP5X-05H Lens Positioner, 0.5 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR	UNIVERSAL	1.0	7.0	12.7 mm	XYZ θXθY	7.6 mm	0.535-40	In Stock	$286	Newport
LP6X-05H Lens Positioner, 0.5 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR $321 In Stock	LP6X-05H Lens Positioner, 0.5 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR	UNIVERSAL	1.0	8.0	12.7 mm	XYZ θXθYθZ	10.2 mm	0.535-40	In Stock	$321	Newport
LPXY-1H Lens Positioner, 1.0 in. Diameter, XY, 100 TPI, 8-32 THD $157 Contact Us	LPXY-1H Lens Positioner, 1.0 in. Diameter, XY, 100 TPI, 8-32 THD	IMPERIAL	1.0	9.0	25.4 mm	XY	10.2 mm	1.035-40	Contact Us	$157	Newport
M-LPXY-1H Lens Positioner, 1.0 in. Diameter, XY, 100 TPI, M4 THD $157 In Stock	M-LPXY-1H Lens Positioner, 1.0 in. Diameter, XY, 100 TPI, M4 THD	METRIC	1.0	10.0	25.4 mm	XY	10.2 mm	1.035-40	In Stock	$157	Newport
LPXYZ-1H Lens Positioner, 1.0 in. Diameter, XYZ, 100 TPI, 8-32 THD $235 In Stock	LPXYZ-1H Lens Positioner, 1.0 in. Diameter, XYZ, 100 TPI, 8-32 THD	IMPERIAL	1.0	11.0	25.4 mm	XYZ	11.7 mm	1.035-40	In Stock	$235	Newport
M-LPXYZ-1H Lens Positioner, 1.0 in. Diameter, XYZ, 100 TPI, M4 THD $235 3 Weeks	M-LPXYZ-1H Lens Positioner, 1.0 in. Diameter, XYZ, 100 TPI, M4 THD	METRIC	1.0	12.0	25.4 mm	XYZ	11.7 mm	1.035-40	3 Weeks	$235	Newport
LPXYR-1H Lens Positioner, 1.0 in. Diameter, XYθZ, 100 TPI, 8-32 THD $241 In Stock	LPXYR-1H Lens Positioner, 1.0 in. Diameter, XYθZ, 100 TPI, 8-32 THD	IMPERIAL	1.0	13.0	25.4 mm	XY θZ	10.2 mm	1.035-40	In Stock	$241	Newport
M-LPXYR-1H Lens Positioner, 1.0 in. Diameter, XYθZ, 100 TPI, M4 THD $241 Contact Us	M-LPXYR-1H Lens Positioner, 1.0 in. Diameter, XYθZ, 100 TPI, M4 THD	METRIC	1.0	14.0	25.4 mm	XY θZ	10.2 mm	1.035-40	Contact Us	$241	Newport
LP5X-1H Lens Positioner, 1.0 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR $284 In Stock	LP5X-1H Lens Positioner, 1.0 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR	UNIVERSAL	1.0	15.0	25.4 mm	XYZ θXθY	12.0 mm	1.035-40	In Stock	$284	Newport
LP6X-1H Lens Positioner, 1.0 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR $321 In Stock	LP6X-1H Lens Positioner, 1.0 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR	UNIVERSAL	1.0	16.0	25.4 mm	XYZ θXθYθZ	12.0 mm	1.035-40	In Stock	$321	Newport
LPXY-2H Lens Positioner, 2.0 in. Diameter, XY, 100 TPI, 8-32 THD $179 Contact Us	LPXY-2H Lens Positioner, 2.0 in. Diameter, XY, 100 TPI, 8-32 THD	IMPERIAL	1.0	17.0	50.8 mm	XY	13.7 mm	2.035-40	Contact Us	$179	Newport
M-LPXY-2H Lens Positioner, 2.0 in. Diameter, XY, 100 TPI, M4 THD $179 In Stock	M-LPXY-2H Lens Positioner, 2.0 in. Diameter, XY, 100 TPI, M4 THD	METRIC	1.0	18.0	50.8 mm	XY	13.7 mm	2.035-40	In Stock	$179	Newport
LPXYR-2H Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, 8-32 THD $298 In Stock	LPXYR-2H Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, 8-32 THD	IMPERIAL	1.0	19.0	50.8 mm	XY θZ	13.7 mm	2.035-40	In Stock	$298	Newport
M-LPXYR-2H Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, M4 THD $298 In Stock	M-LPXYR-2H Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, M4 THD	METRIC	1.0	20.0	50.8 mm	XY θZ	13.7 mm	2.035-40	In Stock	$298	Newport
LP5X-2H Lens Positioner, 2.0 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR $345 3 Weeks	LP5X-2H Lens Positioner, 2.0 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR	UNIVERSAL	1.0	21.0	50.8 mm	XYZ θXθY	13.7 mm	2.035-40	3 Weeks	$345	Newport
LP6X-2H Lens Positioner, 2.0 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR $550 In Stock	LP6X-2H Lens Positioner, 2.0 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR	UNIVERSAL	1.0	22.0	50.8 mm	XYZ θXθYθZ	13.7 mm	2.035-40	In Stock	$550	Newport

Features

Two, Three, Five or Six Axes of Positioning

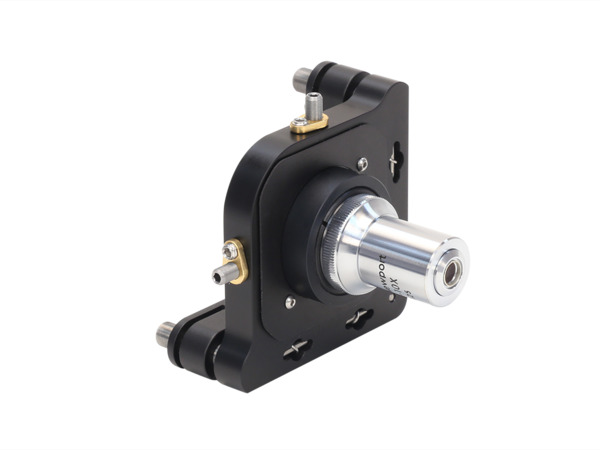

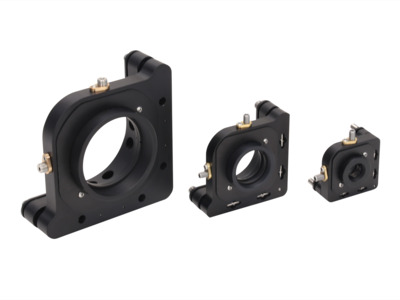

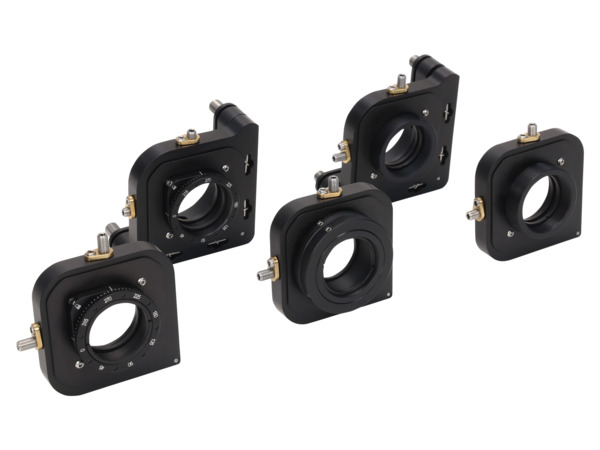

Our new LP Series Lens Positioners provide an economical solution for applications requiring two (XY), three (XYZ or XYθZ), five (XYZ θXθY), or six (XYZ θXθYθZ) axes of precision adjustment. They all feature

Multi-axis precision adjustment in a space-saving geometry
Hex-key adjuster to prevent unintended adjustment
All axes lockable for added long-term stability
Keying pin holes for OEM applications
Dual mounting holes for left- or right-handed configurations

Lockable Hex-Key Adjusters

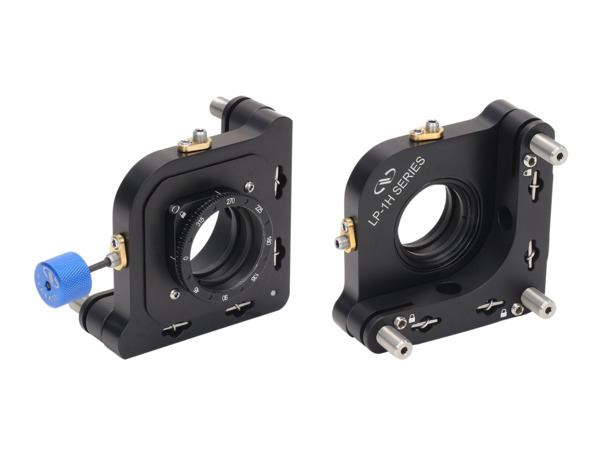

The LP Series Lens Positioners use hex-key adjusters to save space and prevent unintended adjustments. Independent locks for each axis securely lock the adjustment screws, maintaining stable optical alignment. The adjuster and its lock feature the same sized hex oriented in the same direction, therefore can be conveniently accessed and actuated by the same hex tool (shown here is hex adjustment knob HX.078-2M-PK).

Alignment Pin Holes

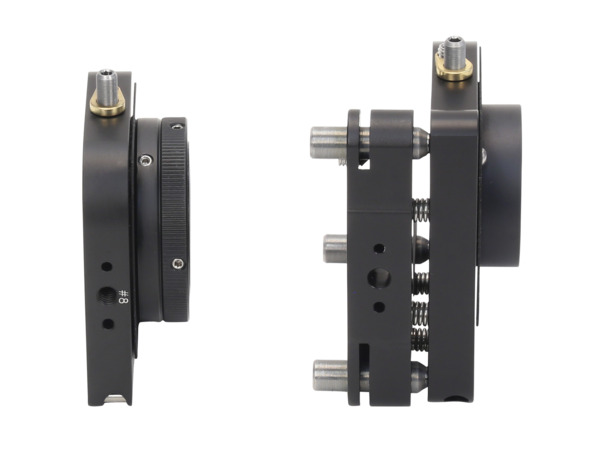

Designed with OEM applications in mind, these lens positioners include alignment pin holes adjacent to mounting holes. These dowel pin holes enable keying of the position and orientation for repeatable system integration and to prevent clocking effects. (Note: Dowel pins are not included with the mount.)

Compatible with Lens Tube System

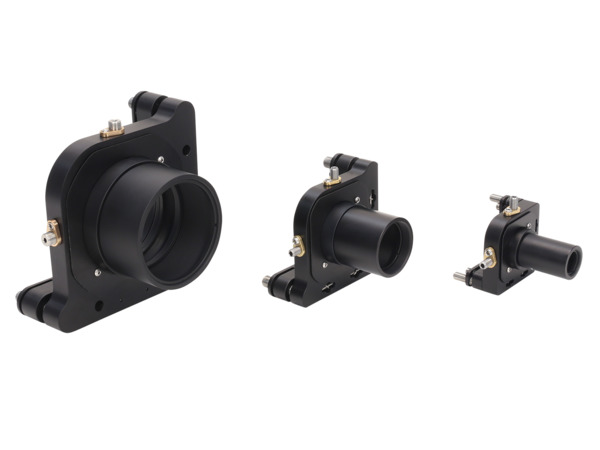

Besides holding 0.5, 1.0, or 2.0 in. diameter optic with included retaining rings, the LP Series Lens Positioners are also directly compatible with optomechanical components with SM05 (0.535"-40), SM1 (1.035"-40), or SM2 (2.035"-40) threads. Shown are the LP5X positioners attaching LT Series Lens Tubes.

Compatible with Beamsplitters Holders

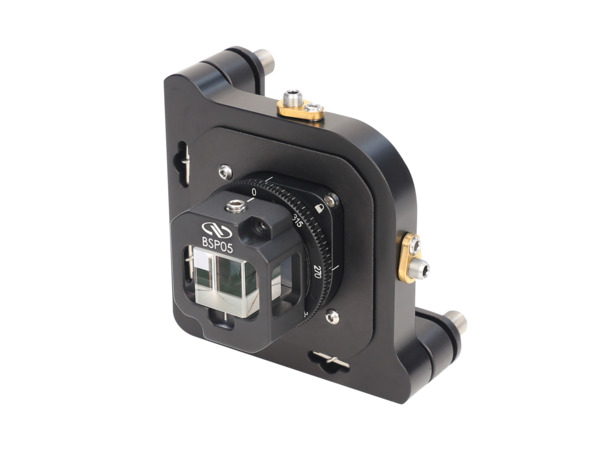

New BSP025 and BSP05 beamsplitter holders can directly thread into LP-1H positioners to hold 0.25 and 0.5 in. cube beamsplitters. To mount a 1.0 in. beamsplitter, two adapters LT20-LX and LT-20-BS1 are needed to attach the CH-1 holder to an LP-2H positioner.
