Compact Lens Positioner, XYZ, 1.0 in. Diameter, 100 TPI

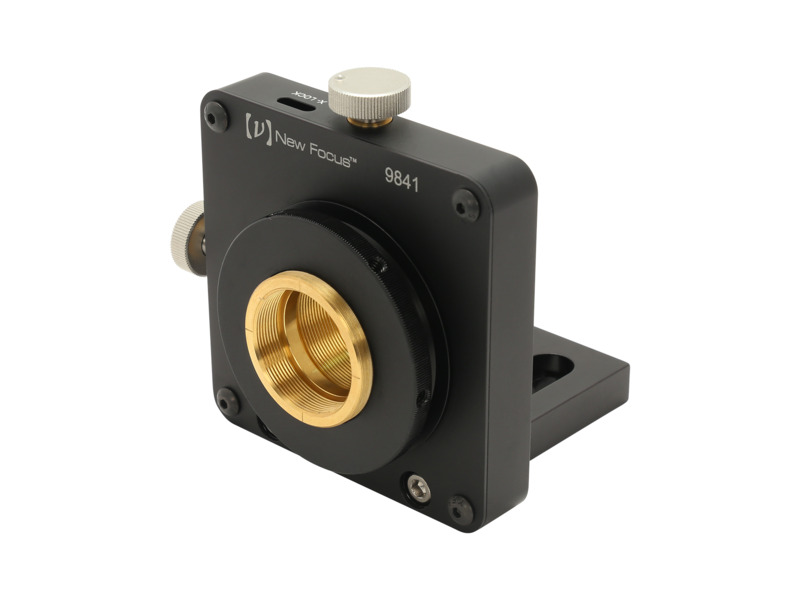

The 9841 XYZ Lens Positioner offers a broad range of travel with 0.25 in. movement in X, Y, and Z directions, where movement in each axis is decoupled from movement in the other directions. This lens positioner accommodates 1.0 in. (25.4 mm) diameter optics with the included Delrin retaining ring or aspheric objective lenses using the 1283 adapter.

Holds Compact Aspheric Objectives or Optical Fibers

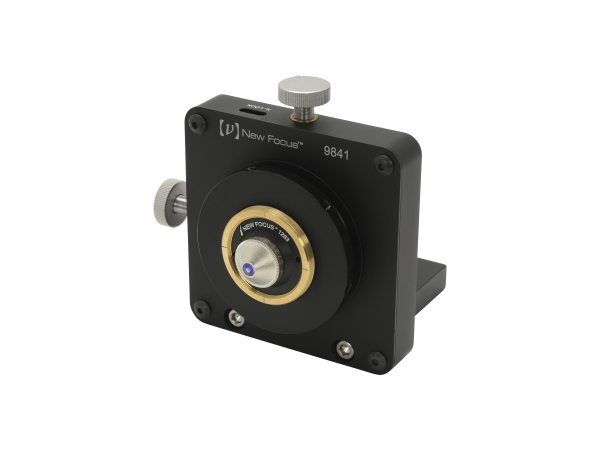

With 1283 Asphere Adapter, 9841 Lens Positioner can hold Aspheric Objective Lenses which offer the same magnification and on-axis performance as microscope objectives in a lighter and more compact package. 9841 can also hold FC-connectorized optical fibers with 1281 FC Fiber Adapter.

Optical Post Mounting

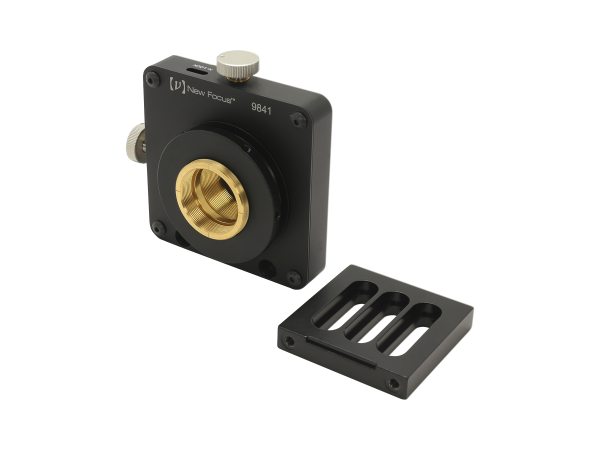

9841 features a removable slotted base plate as well as two threaded holes 8-32 and M4 at the bottom for maximized flexibility of mounting.
